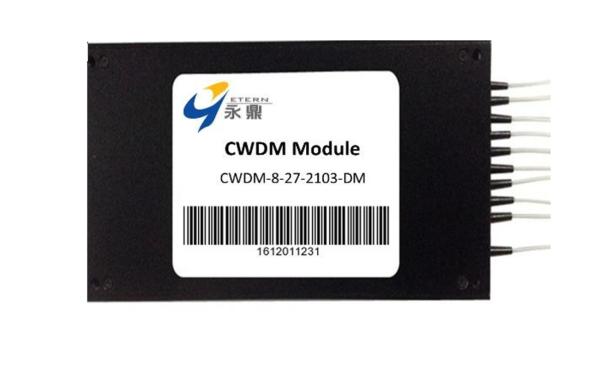

5.0dB WDM In Data Communication High Isolation 4 Channel CWDM Mux
5.0dB WDM In Data Communication High Isolation 4 Channel CWDM Mux
Specifications
Brand Name :
Wuhan Etern Optoelectronics
Model Number :
ETERN 100G DWDM Module
Place of Origin :
China
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150k channels per month
Delivery Time :
4 Weeks
Passband :
Flat and Wide Passband
Quality :
High Stability and Reliability
Operation Perfomance :
Low Insertion Loss, High Isolation
Application :
WDM Transmission, Metro and Long-haul Network
Channel No. :
2/4/8/16/32/40
Channel Spacing :
100GHz
Description

5.0dB WDM In Data Communication High Isolation 4 Channel CWDM Mux

ETERN 100G DWDM Module is Multi-channel mux/demux modules which are available on ITU channel spacing of 100GHz, which are based on thin film filter technology. These devices can be designed to satisfy any customer-specify channel detectors for a complete DWDM solution.

Features Applications
Flat and Wide Passband WDM Transmission
High Stability and Reliability Metro and Long-haul Network
Low Insertion Loss, High Isolation

Performance Specification

Parameter Units Value
Channels 2/4/8/16/32/40
Channel Spacing GHz 100
Pass band@-0.5dB nm ≥0.3
Pass band Flatness dB ≤0.5
Insertion Loss1 Typ. dB 1.2/1.6/2.6/3.8/4.6/5.0
Max. 1.6/2.0/3.2/4.5/5.2/5.8
Polarization Dependent Loss (PDL) dB ≤0.1/≤0.15/≤0.25/≤0.25/≤0.3/≤0.3
Adjacent Channel Isolation dB ≥25
Non-Adjacent Channel Isolation dB ≥45
Return Loss dB ≥45
Polarization Mode Dispersion(PMD) ps ≤0.1/≤0.1/≤0.1/≤0.15/≤0.15/≤0.15
Directivity dB ≥50
Operating Temperature ℃ -5 to +65
Storage Temperature ℃ -40 to +85

Note: 1. Measured with connectors； IL will be 0.3dB worse and RL will be 5dB lower with connectors.
