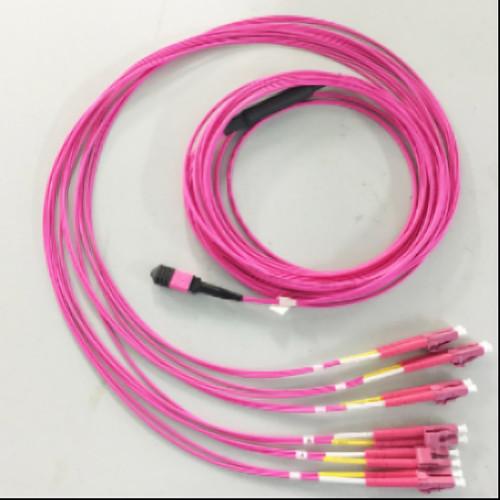

OM3 OM4 Multimode Fiber Patch Cable Pink 24 Fiber MPO Connector
OM3 OM4 Multimode Fiber Patch Cable Pink 24 Fiber MPO Connector
Specifications
Brand Name :
Wuhan Etern Optoelectronics
Model Number :
MTP/MPO Pre-Terminal Branch Cable
Certification :
RoHS
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100k per month
Features :
Small size, easy connection, Low Insertion Loss, High repeatability
Applications :
high integrated equipment and devices, precision communication device
Type :
MPO-LC/SC/FC mixed type
Insertion Loss :
0.35dB
Testing Wavelength(nm) :
1310/1550, 850/1300
Color :
Pink Purple
Description

ETERN MPO-LC mixed type connector pre-terminal fiber cable,choosing from multi mode OM3, OM4 and single mode G62D, G652A

ETERN MPO-LC/SC/FC mixed type connector pre-terminal fiber cable refers to adopting MPO single 12/24 core connector on the one port and LC/SC/FC connector on the other port, this product is mainly appliey to the needs of connecting directly from main wiring area to system equipment port or equipment distribution frame. This structure can also be used on system extension of the extension cable.

Features

1. Provide 12 to 144 core optical diber connection

2. 12 or 24 core MPO connector, decrease the possibility of breakdown and reduce wiring space

3. According to customers’different needs, choosing from multi mode OM3, OM4 and single mode G62D, G652A.

4. Adopting rouded and small diameter new optical fiber, achieved smaller bending radius of backbone fiber, make storing and laying more convenient

Performance Specification

Optical Fiber Type Single Mode Multi-mode
Insertion Loss Typ.(dB) 0.35 0.35
Max.(dB) 0.75 0.75
Low Insertion Loss Typ.(dB) 0.1 0.1
Max.(dB) 0.35 0.35
Return Loss ≥60(APC) ≥200(PC)
≥50(PC)
Male/Female Connector Male Connector: With pin Female connector:Without pin
Durability(dB) ≤0.2 500times
Operation Temp.(℃) -20 - +70
1310 850

Conventional Connectors like LC/SC/FC

Optical Fiber Type Single Mode Multi Mode
Connector Type PC APC PC
Insertion Loss(dB) ≤0.3
Return Loss(dB) ≥50 ≥60 ≥35
Durability(dB) ≤0.2 1000times connecting
Operating Temp.(℃) -20 - +70
Testing Wavelength(nm) 1310 850
