100GHZ SPACING GAUSSIAN AAWG I-T MULTIPLEXER / DEMULTIPLEXER apply for WDM Transmission
100GHZ SPACING GAUSSIAN AAWG I-T MULTIPLEXER / DEMULTIPLEXER apply for WDM Transmission
100GHZ SPACING GAUSSIAN AAWG I-T MULTIPLEXER / DEMULTIPLEXER apply for WDM Transmission
100GHZ SPACING GAUSSIAN AAWG I-T MULTIPLEXER / DEMULTIPLEXER apply for WDM Transmission
Specifications
Brand Name :
Wuhan ETERN Optoelectronics
Model Number :
AAWG-1G-XX-C21-0505054-MDM
Certification :
GR-1221-CORE,GR-1209-CORE,RoHS
Place of Origin :
China
MOQ :
2PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
150K Channel per month
Packaging Details :
Carton
Channels :
40/44/48
Channel Spacing :
100GHZ
Insert Loss（Typ.） :
4.0dB
1dB Bandwidth :
≥0.2
3dB Bandwidth :
≥0.4
Operating Temperature :
-40 to +85
Description

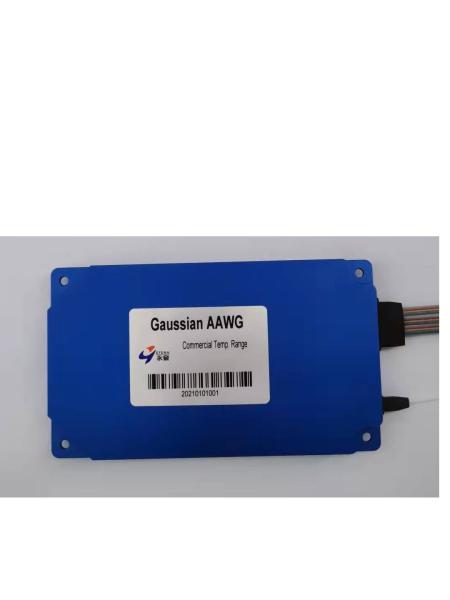

100GHZ SPACING GAUSSIAN AAWG I-T MULTIPLEXER / DEMULTIPLEXER

Description:

ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.

Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.

Features:

1. Athermal Design Over Operating Temperature Range

2. Compact Size

3. High Stability and Reliability

4. Low Insertion Loss, High Isolation

Applications:

1. WDM Transmission

2. Metro and Long-haul Network

Specification:

Parameter Units Value
Channels 40/44/48
Channel Spacing GHz 100
Reference Passband GHz ±12.5
Wavelength Accuracy pm ±50
Insertion Loss1 Typ. dB 4.0
Max. 4.5
Insertion Loss Uniformity dB ≤1.5
Polarization Dependent Loss (PDL) dB ≤0.5
1dB Bandwidth nm ≥0.2
3dB Bandwidth nm ≥0.4
Adjacent Channel Isolation dB ≥25
Non-Adjacent Channel Isolation dB ≥30
Total Crosstalk dB ≥22
Return Loss dB ≥40
Chromatic Dispersion(CD) ps/nm -20 ~ +20
Polarization Mode Dispersion(PMD) ps ≤0.5
Operating Temperature ℃ -40 to +85
Storage Temperature ℃ -40 to +85
Note: 1. Tested with connectors.

Ordering Information:

Athermal AWG Spacing Type Ch Number Started Ch Fiber Length Connector Application Package
Common Ribbon Fan-out
AAWG 1=100GHz F=Flat-Top 16=16ch C21=C21 00=Adaptor 1=None M=Mux M=Module
G=Gaussian 32=32ch C215=C21.5 05=0.5m 05=0.5m 05=0.5m 2=FC/UPC D=Demux R=Rack
　 　 40=40ch …… 10=1.0m 10=1.0m 10=1.0m 3=FC/APC MD=Mux & Demux
　 　 44=44ch 15=1.5m 15=1.5m 15=1.5m 4=LC/UPC 　 　
　 　 48=48ch 20=2.0m 20=2.0m 20=2.0m 5=LC/APC 　 　
　 　 …… 　 …… 6=SC/UPC 　 　
　 　 　 7=SC/APC 　 　
　 　 　 　 X=Special 　 　
