Ordinary RF Coaxial Cable

• Standards Implemented
• YD/T 1092-2013 Telecommunication cable - Foamed polyolefin dielectric, outer conductor, 50 ohm radio frequency coaxial cable for wireless communication
• GB/T 17737.1-2013 Coaxial communication cables – Part 1: Generic specification - General, definitions and requirements
• IEC 61196-9:2014 Coaxial communication cables–Part 9: Sectional specification for RF flexible cables
• IEC 60332-1-2:2015 Tests on electric and optical fibre cables under fire conditions – Part 1-2: Test for vertical flame propagation for a single insulated wire or cable–Procedure for 1 kW pre-mixed flame
• IEC 61034-2:2019 Measurement of smoke density of cables burning under defined conditions–Part 2: Test procedure and requirements
• IEC 60754-1:2019 Test on gases evolved during combustion of materials from cables – Part 1: Determination of the halogen acid gas content
• IEC 60754-2:2019 Test on gases evolved during combustion of materials from cables – Part 2: Determination of acidity (by pH measurement) and conductivity
  • Product Features
• Ordinary RF coaxial cable uses outer conductor of a circular corrugated structure, to be with higher mechanical strength and certain bending properties.
• Ordinary RF coaxial cable has higher self-sealing performance and excellent moisture resistance.

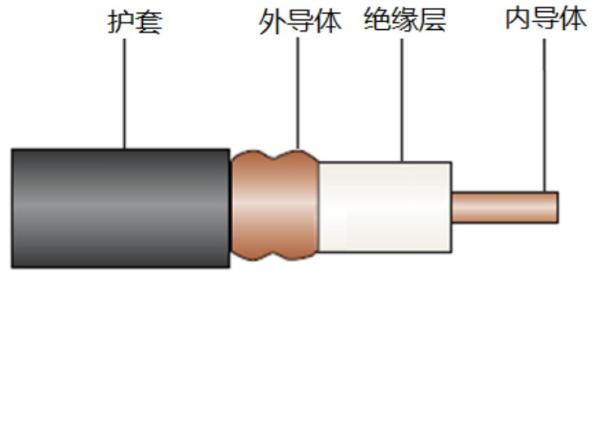

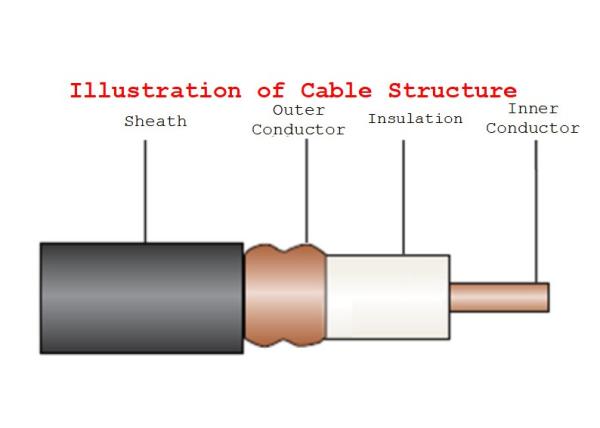

• Structural Parameters

• Product Model	Inner Conductor		Insulation	Outer Conductor		Outer Sheath
  	Type	Diameter		Type	Diameter	Type	Diameter
  HCAAY(Z)-50-6 (1/4”)	Copper clad aluminum wire	2.60mm	Physically-foamed polyethylene insulation	Circular corrugated copper tube	7.70mm	Black polyethylene or low smoke halogen-free flame retardant polyolefin	8.80mm
  HCAAY(Z)-50-8 (3/8”)	Copper clad aluminum wire	3.10mm			9.50mm		10.80mm
  HCAAY(Z)-50-12 (1/2”)	Copper clad aluminum wire	4.80mm			13.90mm		15.80mm
  HCTAY(Z)-50-22 (7/8”)	Smooth copper tube	9.00mm			24.90mm		27.50mm
  HCTAY(Z)-50-23 (Low loss 7/8”)	Smooth copper tube	9.45mm			25.40mm		27.80mm
  HCTAY(Z)-50-32 (1-1/4”)	Smooth copper tube	13.10mm			35.80mm		38.50mm
  HHTAY(Z)-50-42 (1-5/8”)	Spiral corrugated copper tube	17.40mm			46.50mm		49.50mm

Mechanical & Environmental Properties

Electrical Properties

• Product Model			HCAAY(Z)-50-6 (1/4”)	HCAAY(Z)-50-8 (3/8”)	HCAAY(Z)-50-12 (1/2”)	HCTAY(Z)-50-22 (7/8”)	HCTAY(Z)-50-23 (Low loss 7/8”)	HCTAY(Z)-50-32 (1-1/4”)	HHTAY(Z)-50-42 (1-5/8”)
  Average Characteristic Impedance(Ω)			50±2
  Transmission Rate(30~200MHz)			86%	88%	88%	88%	88%	88%	88%
  Capacitance(pF/m)			77	76	76	76	76	76	76
  Dielectric strength (V,DC,1min)			2000	2500	6000	10000	10000	10000	15000
  Minimum Insulation Resistance(MΩ·km)			5000	5000	10000	10000	10000	10000	10000
  Sheath Spark Testing (V,AC, Effective Value)			3000	5000	8000	8000	8000	10000	10000
  Maximum Attenuation Coefficient (dB/100m) (20℃)		70MHz	3.49	2.95	1.90	0.89	0.95	0.76	0.63
  		100MHz	4.22	3.53	2.30	1.16	1.15	0.93	0.77
  		150MHz	5.22	4.35	2.85	1.49	1.42	1.17	0.96
  		200MHz	6.08	5.05	3.31	1.76	1.66	1.37	1.12
  		350MHz	8.20	6.78	4.44	2.38	2.23	1.85	1.54
  		450MHz	9.39	7.75	5.06	2.72	2.55	2.12	1.77
  		700MHz	11.96	9.83	6.40	3.45	3.25	2.71	2.28
  		800MHz	12.87	10.57	6.87	3.71	3.50	2.92	2.46
  		900MHz	13.75	11.27	7.31	3.96	3.73	3.13	2.64
  		1400MHz	17.64	14.38	9.29	5.08	4.79	4.03	3.44
  		1800MHz	20.38	16.55	10.66	5.88	5.53	4.68	4.01
  		1900MHz	21.02	17.06	10.99	6.07	5.70	4.83	4.15
  		2000MHz	21.66	17.56	11.30	6.26	5.88	4.98	4.28
  		2100MHz	22.29	18.05	11.61	6.44	6.05	5.13	4.42
  		2200MHz	22.90	18.53	11.92	6.62	6.21	5.28	4.55
  		2300MHz	23.51	19.01	12.22	6.81	6.38	5.42	4.68
  		2400MHz	24.10	19.48	12.51	6.98	6.54	5.57	4.80
  		2500MHz	24.69	19.93	12.80	7.16	6.70	5.71	4.93
  		2600MHz	25.27	20.39	13.09	7.34	6.85	5.85	5.06
  		2700MHz	25.84	20.83	13.37	7.51	7.01	5.99	5.18
  		3000MHz	27.51	22.14	14.19	8.02	7.46	6.39	/
  		3300MHz	29.13	23.39	14.97	8.51	7.90	6.78	/
  		3800MHz	31.73	25.40	16.23	9.31	8.60	7.42	/
  		4400MHz	34.70	27.68	17.66	10.24	9.40	/	/
  		5000MHz	37.55	29.86	19.02	11.14	10.17	/	/
  		5800MHz	41.19	32.64	20.75	/	/	/	/
  Maximum VSWR	70~500MHz		≤1.10	≤1.10	≤1.10	≤1.10	≤1.10	≤1.10	≤1.10
  	600~1000MHz		≤1.15	≤1.15	≤1.15	≤1.15	≤1.15	≤1.15	≤1.15
  	1700~2200MHz		≤1.15	≤1.15	≤1.15	≤1.15	≤1.15	≤1.15	≤1.15
  	2300~2700MHz		≤1.20	≤1.20	≤1.20	≤1.20	≤1.20	≤1.20	≤1.20
  	3300~3800MHz		≤1.30	≤1.30	≤1.30	≤1.30	≤1.30	≤1.30	/
  	4400~5000MHz		≤1.30	≤1.30	≤1.30	≤1.30	≤1.30	/	/
  	5700~5900MHz		≤1.30	≤1.30	≤1.30	/	/	/	/
