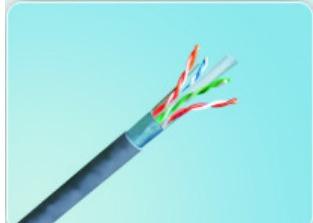

7.5mm CAT LAN Cable AL Foil Shield CAT 6a FTP Network Cable
7.5mm CAT LAN Cable AL Foil Shield CAT 6a FTP Network Cable
7.5mm CAT LAN Cable AL Foil Shield CAT 6a FTP Network Cable
7.5mm CAT LAN Cable AL Foil Shield CAT 6a FTP Network Cable
Specifications
Product Name :
CAT 6a ftp network cable
Features :
AL Foil Shield
Applications :
Supporting all current and planned data applications
Cable OD :
7.5mm
Description

Cat6/ Cat 6a FTP LAN Cable

  • Solid bare copper conductor
  • Skin-Foamed-Skin PE insulation
  • PET tape
  • AL Foil Shield
  • PVC or LSZH Jacket

  • Typical structural parameters:

  • Type CAT6/6a FTP 4P 23AWG PVC CAT6/6a FTP 4P 23AWG LSZH
    Cable OD(Φmm) 7.5 7.5

    WET

    (kg/bool)

    		 18.7 18.8

Electrical Performance

Project Performance Reference Standard Frequency
ZIN(Ω) 100±15

YD/T 1019 TIA/EIA-568B

ISO/IEC11801

ISO/IEC61156

250MHz/

500MHz

ATT

(dB/100m)

 32.8/48.9
NEXT(dB/100m) 38.3/33.8

Environmental Performance

Project Performance
Min. Bending Radius Static 8D
Dynamic 15D
Temperature Installation 0~50℃
Rated －15℃~75℃
Storage －15℃~75℃

Others:

Project Content
Application Scope used as Horizontal floor cabling. Supporting all current and planned data applications and All Ethernet applications including 1000Base-T/TX 10GBase-T etc.
Other
