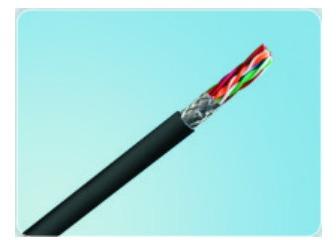

9.3mm CAT LAN Cable 8 Pair CAT 5e SFTP LAN Cable LSZH Jacket
9.3mm CAT LAN Cable 8 Pair CAT 5e SFTP LAN Cable LSZH Jacket
9.3mm CAT LAN Cable 8 Pair CAT 5e SFTP LAN Cable LSZH Jacket
9.3mm CAT LAN Cable 8 Pair CAT 5e SFTP LAN Cable LSZH Jacket
Specifications
Product Name :
Cat 5e sftp lan cable
Features :
8 Pair
Applications :
Supporting voice system
Cable OD :
9.3mm
Description

Cat5/ Cat 5e SFTP LAN Cable

  • Solid bare copper conductor
  • PE insulation
  • PET tape
  • AL Foil Shield
  • Annealed Tinned Copper Braid
  • PVC or LSZH Jacket

  • Typical structural parameters:

  • Type SFTP CAT5/5e 4P PVC SFTP CAT5/5e 4P LSZH SFTP CAT5/5e 8P PVC SFTP CAT5/5e 8P LSZH
    Cable OD(Φmm) 6.8 6.8 9.3 9.3

    WET

    (kg/bool)

    		 15.3 15.4 27.1 27.4

    Electrical Performance

    Project Performance Reference Standard Frequency
    ZIN(Ω) 100±15

    YD/T 1019 TIA/EIA-568B

    ISO/IEC11801

    ISO/IEC61156

    		 100MHz

    ATT

    (dB/100m)

    		 22.0
    NEXT(dB/100m) 35.3

    Environmental Performance

    Project Performance
    Min. Bending Radius Static 8D
    Dynamic 15D
    Temperature Installation 0~50℃
    Rated －15℃~75℃
    Storage

    －15℃~75℃

    Others:

    Project Content
    Application Scope used as Horizontal floor cabling. Supporting voice system, ISDN, ATM-25/51/155 Mbps, 10BASE-T,100BASE-TX/T4,1000BASE-T etc.
    Other
