8.0mm SFTP Network Cable Ethernet CAT 6a SFTP 4P 23AWG
8.0mm SFTP Network Cable Ethernet CAT 6a SFTP 4P 23AWG
8.0mm SFTP Network Cable Ethernet CAT 6a SFTP 4P 23AWG
8.0mm SFTP Network Cable Ethernet CAT 6a SFTP 4P 23AWG
Specifications
Product Name :
cable ethernet cat 6a sftp
Features :
Skin-Foamed-Skin PE insulation
Applications :
as Horizontal floor cabling
Cable OD :
8.0mm
Description

Cat6/ Cat 6a SFTP LAN Cable

  • Solid bare copper conductor
  • Skin-Foamed-Skin PE insulation
  • PET tape
  • AL Foil Shield
  • Annealed Tinned Copper Braid
  • PVC or LSZH Jacket

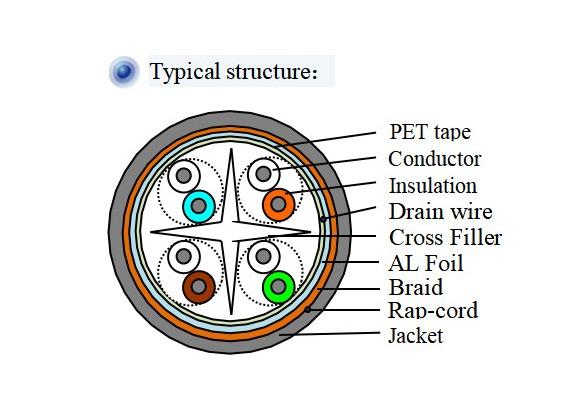

  • Typical structural parameters:

  • Type CAT6/6a SFTP 4P 23AWG PVC CAT6/6a SFTP 4P 23AWG LSZH
    Cable OD(Φmm) 8.0 8.0

    WET

    (kg/bool)

    		 18.3 18.4

Electrical Performance

Project Performance Reference Standard Frequency
ZIN(Ω) 100±15

YD/T 1019 TIA/EIA-568B

ISO/IEC11801

ISO/IEC61156

250MHz/

500MHz

ATT

(dB/100m)

 32.8/48.9
NEXT(dB/100m) 38.3/33.8

Environmental Performance

Project Performance
Min. Bending Radius Static 8D
Dynamic 15D
Temperature Installation 0~50℃
Rated －15℃~75℃
Storage

－15℃~75℃

Others:

Project Content
Application Scope used as Horizontal floor cabling. Supporting all current and planned data applications and All Ethernet applications including 1000Base-T/TX 10GBase-T etc.
