AAWG 100GHz Spacing Flat Top 36ch C20-C55 MUX DEMUX
AAWG 100GHz Spacing Flat Top 36ch C20-C55 MUX DEMUX
Specifications
Brand Name :
Wuhan ETERN Optoelectronics
Model Number :
AAWG-1F36-C20-0302024-MDM
Certification :
RoHS
Place of Origin :
China
MOQ :
2PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50k per month
Packaging Details :
Single item
Description

AAWG-1F36-C20-0302024-MDM

AAWG, 100GHz Spacing, Flat-Top, 36ch, C20-C55 MUX&DEMUX

Description

ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.

Function

Optical Specifications

Parameters Unit Value
Channel Number 36
Channel Spacing GHz 100
Center Wavelength nm 1538.186 ~ 1561.419
Channel Frequency THz 192.0 ~195.5
Reference Passband nm ±0.1
Insertion Loss dB ≤5.5
Insertion Loss Uniformity dB ≤1.5
Passband Ripple dB ≤0.5
Bandwidth @1dB nm ≥ 0.4
@3dB ≥ 0.6
Isolation Adjacent Channels dB ≥25
Non-adjacent Channels ≥30
Total crosstalk dB ≥21
PDL dB ≤0.5
PMD ps ≤0.5
Return Loss dB ≥40
Chromatic Dispersion ps/nm ±20
Operating Temperature ℃ -5 to +65
Storage Temperature ℃ -40 to +85

Channel List

Channel Frequency(THz) Wavelength(nm)
C20 192 1561.419
C21 192.1 1560.606
C22 192.2 1559.794
C23 192.3 1558.983
C24 192.4 1558.173
C25 192.5 1557.363
C26 192.6 1556.555
C27 192.7 1555.747
C28 192.8 1554.940
C29 192.9 1554.134
C30 193 1553.329
C31 193.1 1552.524
C32 193.2 1551.721
C33 193.3 1550.918
C34 193.4 1550.116
C35 193.5 1549.315
C36 193.6 1548.515
C37 193.7 1547.715
C38 193.8 1546.917
C39 193.9 1546.119
C40 194 1545.322
C41 194.1 1544.526
C42 194.2 1543.730
C43 194.3 1542.936
C44 194.4 1542.142
C45 194.5 1541.349
C46 194.6 1540.557
C47 194.7 1539.766
C48 194.8 1538.976
C49 194.9 1538.186
C50 195 1537.397
C51 195.1 1536.609
C52 195.2 1535.822
C53 195.3 1535.036
C54 195.4 1534.250
C55 195.5 1533.465
Pigtail and connector type/length
Parameter Specifications Unit
Fiber Type SMF-28e With 600um Loose tube fiber(TBD)
Fiber Length Common Fiber 300(TBD) mm
Ribbon Fiber 200(TBD) mm
Fan-out 200(TBD) mm
Optical Adaptors (All port) LC/UPC

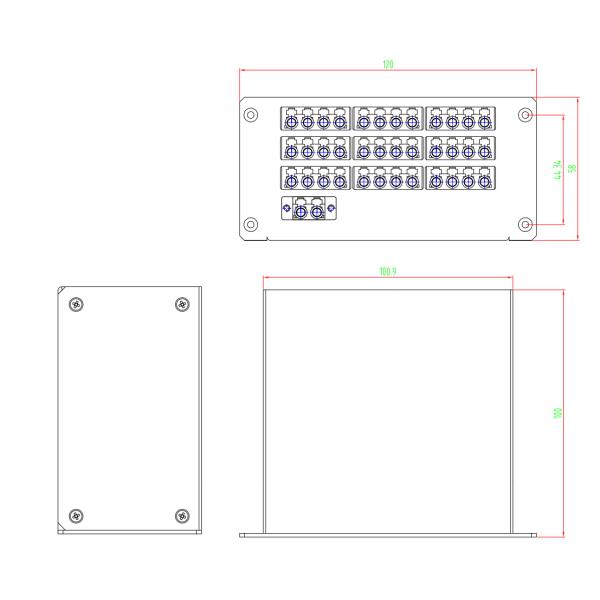

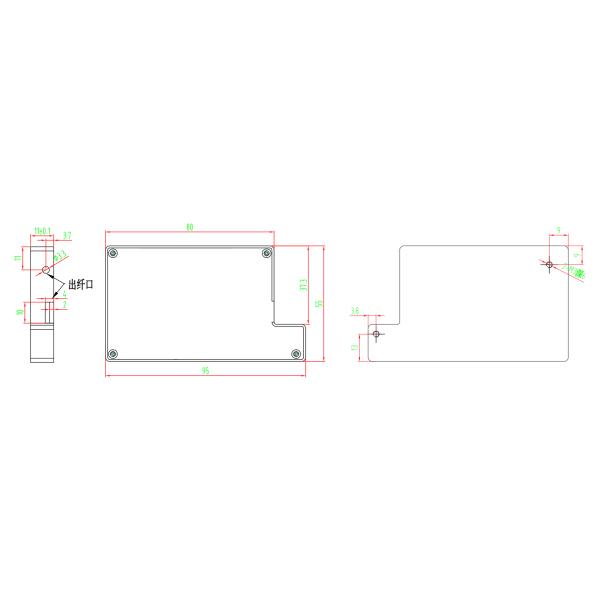

Figure 1 Mechanical Drawings (Unit: mm)

AAWG 100GHz Spacing Flat Top 36ch C20-C55 MUX DEMUX

AAWG 100GHz Spacing Flat Top 36ch C20-C55 MUX DEMUX

Figure 2 Fan-out(TBD)

AAWG 100GHz Spacing Flat Top 36ch C20-C55 MUX DEMUX

Label contains Manufacturing PN, SN, Date and etc.
