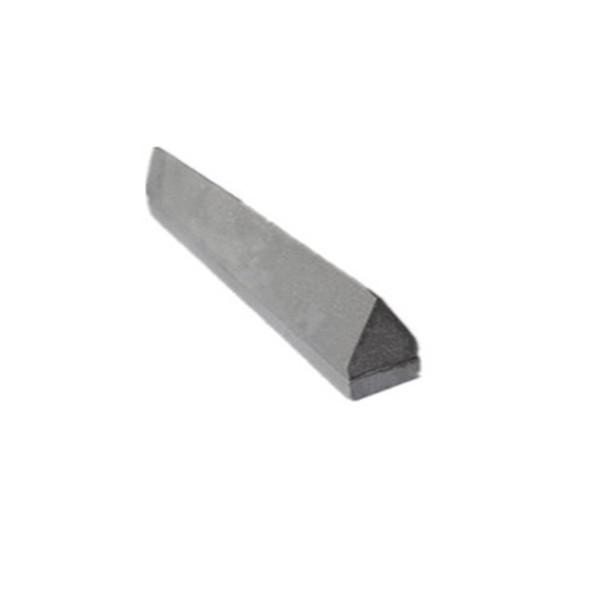

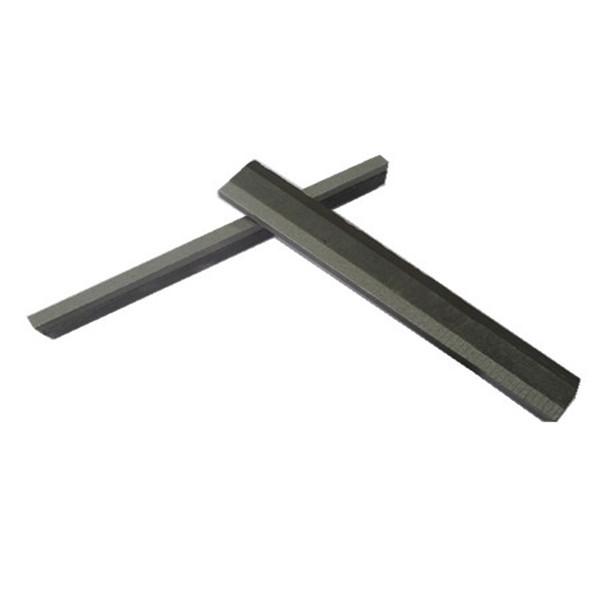

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills
1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills
1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills
1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills
Specifications
Place of Origin :
changsha,china
Brand Name :
VIBO
Model Number :
type1
Certification :
ASTM
Supply Ability :
100tons per month
Packaging Details :
Parking in sturdy wooden cases or in cardboard cartons
MOQ :
200KG
Price :
Negotiable
Delivery Time :
4 week
Payment Terms :
L/C, T/T
Type :
knife edge
Machine Type :
sugar company
Material :
CHROMIUM
Processing Type :
CASTING
Use :
Ore Mining
Hardness :
63HRC/700BHN
Shearing Strength :
210Mpa Min
Impact Toughness :
Up to 150J/cm2
Port :
Shanghai,Ningbo,Shenzhen
Description

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

Product Description

63HRC white iron knife edges for Sugar

This invention relates generally to knives and more specifically to knives adapted for use in the preparation of sugar cane immediately prior to the introduction of such sugar cane into cane milling units, one extremely important object of the invention being to provide a sugar cane knife with cutting edges at opposite edges thereof so that said knives may be reversed to bring a sharp cutting edge in operative position when a cutting edge previously employed has become dulled in use.

Feature

1) Bi-metallic Knife Edges

2) For sugar industry

3) vacuum brazing

4) White iron & mild steel

5) Moderate impact resistance

Product Dimensions

Part No Type Size(mm) Dimensions(mm) Unit Weight(kgs)
A B C D E
VKE1203-16 1 203x16x50 203 16 38 12 50 0.9
VKE1203-19 1 203x19x50 203 19 38 12 50 1.1
VKE1203-22 1 203x22x50 203 22 38 12 50 1.3
VKE1203-25 1 203x25x50 203 25 38 12 50 1.5
vKE1305-16 1 305x16x50 305 16 38 12 50 1.4
VKE1305-19 1 305x19x50 305 19 38 12 50 1.6
VKE1305-22 1 305x22x50 305 22 38 12 50 1.9
VKE1305-25 1 305x25x50 305 25 38 12 50 2.2
VKE2203-16 2 203x16x50 203 16 38 12 50 1.0
VKE2203-25 2 203x25x50 203 25 38 12 50 1.7
VKE2305-25 2 305x25x56 305 25 40 16 56 2.5
VKE3203-19 3 203x19x50 203 19 38 12 50 1.6
vKE3203-25 3 203x25x60 203 25 38 12 50 2.1
VKE3203-28 3 203x28x50 203 28 38 12 50 2.3

Product Drawing

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

Product Categories

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

1. Chocky Bars and Blocks 2. Wear Bars and Blocks 3. Shaped Wear Bars
4. Wear Buttons & Donuts 4. Knife Edges 6. Shredder Hammer Tips
7. Skid Bars 8. Wear Plates 9. Grizzly Bars
10. Chocky Rockbox Liners 11. Dozer Blade To View More
Company Profile

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.

Team & Exhibition

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

Product Application

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

Quality Control

In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

VIBO commit to replace defective goods 100%.

Payment & Shipping

PAYMENT

Standard payment terms:

30% T/T deposit,balance against the copy of B/L

More payment terms could be provided

(LC/DA/DP PAYPAL WESTERN UNION)

1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills
1.4kgs Impact Resistance 305x16x50mm Cane Knife Edges For Sugar Mills

SHIPPING

Delivery time: 15 days after deposit payment received(based on order quantity)

Packing: Plywood box or customized packing as your request.
FAQ
Q: Are you a trade company or a manufacturer ?
A: We are ISO9001:2008 Certificated factory.
Q: Can you provide samples ? is it free or extra ?
A: Yes, we can provide free samples for customer’s testing.
Q: Can I have my logo in your product ?
A: Yes, OEM and ODM are available for us.
Q: Can I have a visit to your factory before the order ?
A: Sure,welcome to visit our factory . We can pick you up in the airport. Hotel booking service is available.
