IP65 Protection Level WECO Door Sensor 10.9mm Connector With CE Approved
IP65 Protection Level WECO Door Sensor 10.9mm Connector With CE Approved
IP65 Protection Level WECO Door Sensor 10.9mm Connector With CE Approved
IP65 Protection Level WECO Door Sensor 10.9mm Connector With CE Approved
Specifications
Brand Name :
WECO
Model Number :
WECO-917 / 957M
Certification :
CE CCC
Place of Origin :
CHINA
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1400000SETS/Year
Delivery Time :
5-8 Workdays
Packaging Details :
5sets in a bundles, pallet avaliable
Usage :
Passenger / Cargo Elevator
Scaning beams :
94 beams / 154 Beams/ 194 Beams
Delivery :
Courier, Air, Sea
cataroy :
Elevator Parts, Elevator door sensor
Feature :
Waterproof
Protection Level :
IP65
Description

IP65 Protection Level WECO Door Sensor 10.9mm Connector With CE Approved

Introduction


Ningbo WECO Optoelectronics CO., LTD. is specilizing in elevator door sensor manufacturering and designing for more than 15 years in WECO Brand. WECO-917/ 957M model elevator door detector is an new standard model which has waterproof function as per many years production experience and onsite report.

Applications

-- All type elevator

Advantages

-- Flexible mounting holes, fixed as indeed on site

-- Easy to be installed on site

-- IP65 protection level, waterproof function

Specifications

Technical Features

917M6

917M7

957M6

957M7

957M8

957M9

Number of infra red diodes

17diodes

32diodes

17diodes

32diodes

40diodes

48diodes

Response time

relay output

45ms

61ms

45ms

61ms

69ms

77ms

transistor output

21ms

37ms

21ms

37ms

45ms

53ms

Scanning Bema

94~33 beams

154~94 beams

94~33 beams

154~94 beams

194~118 beams

234~142 beams

Detecting Height

20~1841mm

Detecting range

0~4m

Operating Temperature

-20℃~+65℃

Light immunity

1000000Lux

sunlightproof

Redundancy

NO

YES

NO

YES

NO

Led Interpretation

The yellow LED and red LED in receiver is on when blocked or in malfunction

The yellow LED in receiver is on and red LED in receiver off without blocking.

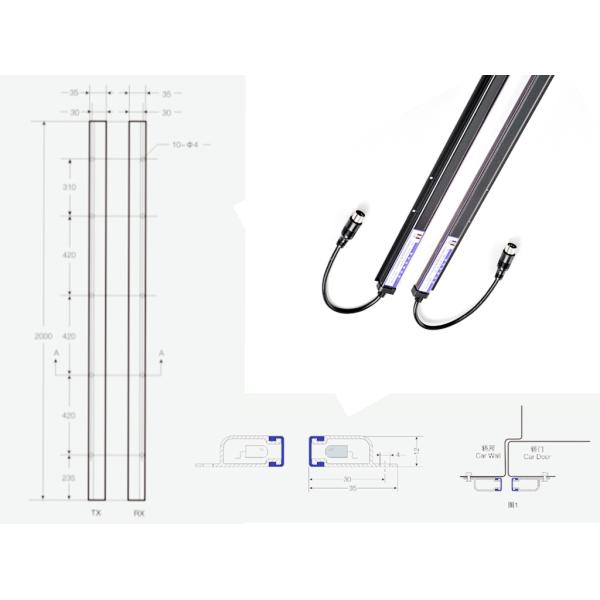

Dimension

IP65 Protection Level WECO Door Sensor 10.9mm Connector With CE Approved

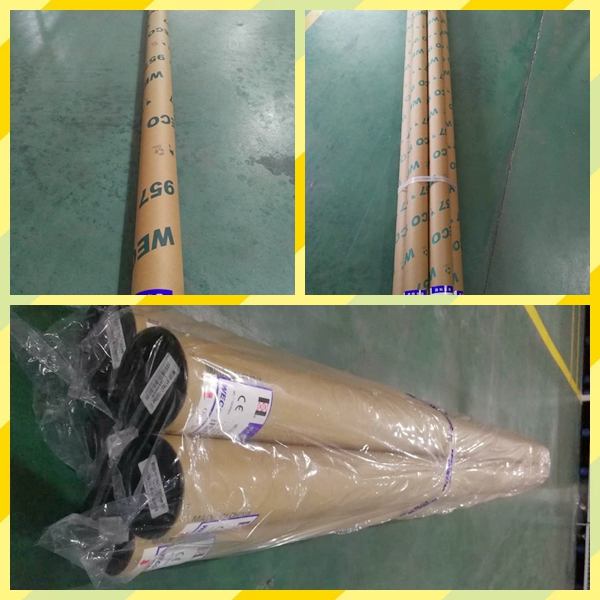

Package
Every piece packed in tube,five tubes in a bundle;


Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)

IP65 Protection Level WECO Door Sensor 10.9mm Connector With CE Approved

Shipping

1) By Express (3-7 working days), suitable for Small Quantity like samples.

2) By Sea (15-30 days), suitable for regular Mass Production.

3) By Air (4-5 days), from Airport to Airport, suitable for Urgent Time.


Why choose WECO?


--- Over 20 years experience in door sensor manufactuering and designing.
--- Two Automatic production lines makes plenty stock to ensure prompt delivery.
--- Easy to track the products only through the series NO..
--- Three searies WECO-917 Series, WECO-957 Series, and WECO-987 Series, multi choice.

--- Flexible and Untraceable payment terms.

--- Well-trained and disciplined packing team.
