Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E
Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E
Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E
Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E
Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E
Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E
Specifications
Brand Name :
WECO
Model Number :
WECO-917 / 957E
Certification :
CE CSA CCC
Place of Origin :
CHINA
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1400000SETS/Year
Delivery Time :
5-8 Workdays
Packaging Details :
5sets in a bundles, pallet avaliable
Usage :
Passenger / Cargo Elevator
Voltage :
AC220V, AC110V, DC24V
Scaning beams :
154 Beams
Catagory :
Elevator Spare parts, Light Curtain
Feature :
NV-917E
Opening Mode :
Side Opening, Central Opening
Description

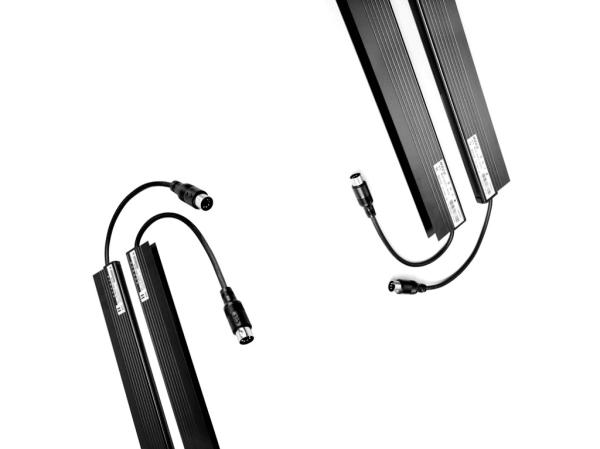

Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E

WECO-917E Mistubishi two- in- one model elevator door photocell was was a new design type work with mechanical linkage before 2012, which perfectly substiteted our traditional safety edges through muilty infrared beams.

Now our 917E door photocell is integrated with safety edges then work with mechnical linkages to better protect passenagers or goods from being hurting during door closing.

This type elevator door photocell also has central opening and side opening two opening modes.

Specification
Technical Features 917E7 957E7
Number of infra red diodes 32diodes 32diodes
Response time relay output 61ms 61ms
transistor output 37ms 37ms
Scanning Bema 154~94beams
Detecting Height 20~1841mm
Detecting range 0~4m
Operating Temperature -20℃~+65℃
Light immunity 1000000Lux sunlightproof
Redundancy YES YES
Led Interpretation The yellow LED and red LED in receiver is on when blocked or in malfunction
The yellow LED in receiver is on and red LED in receiver off without blocking.

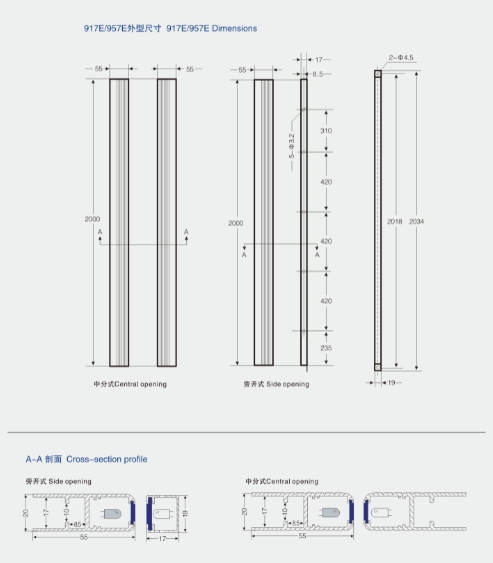

Dimension and Mounting holes

Mitsubishi Type Elevator Light Curtain Safety Aluminum Color WECO 917E

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)

Shipping

1) By Express (3-7 working days), suitable for Sample.

2) By Sea (15-30 days), suitable for regular Mass Production.

3) By Air (4-5 days), from Airport to Airport, suitable for urgent order and small quantity.

About WECO
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
