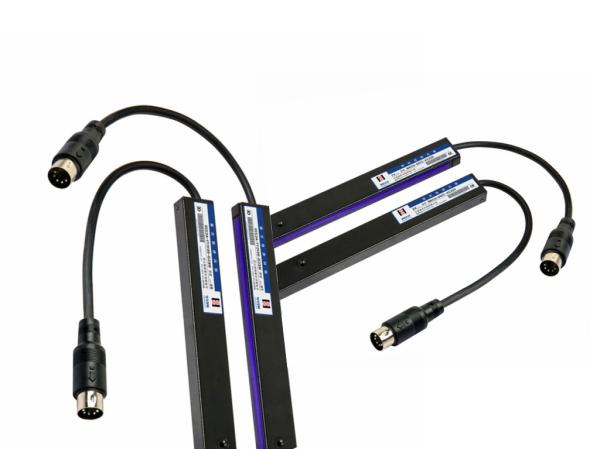

16mm Elevator Light Curtain Elevator Control Systems 32 Diodes With CE CSA CCC

WECO elevator light curtain has three series which is 917 series, 957 series, and 987 series. 957 Series and 987 series are updated models based on 917 Series.

Specification

Mounting Holes and Dimension

Package

Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)

More about WECO
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..


What is EN81-20 stndard?
EN81-20 New Euro Standard means requirements (for elevator door detector)
1. detecting height range: the lowest≤20mm, the highest≥1600mm.
2. minimum obstructions 50mm, the distance of diode sets must less than 50mm.
3. When distance of door detectors less than 20mm, it allows to be invalid.

Design of door detector (Solution)
1. range of diodes less than 47mm, the number of diodes should be at least 35 or more than 35
2. lowest detecting point:17mm
3. higest detecting point:17+47*34=1615mm. (take 35 diode sets as example)
4. detecting range is 0—4m
5. continuous detectable minimum obstructions is 50mm


Does WECO elevator light curtain compliant to EN81- 20 standard?
The answer of courer is YES. The light curtain witht no less than 36 diodes is compliant to EN81-20 Standard.

Difference between 957Series and 987 Series is:
987series elevator light curtain has fault output signal function.
