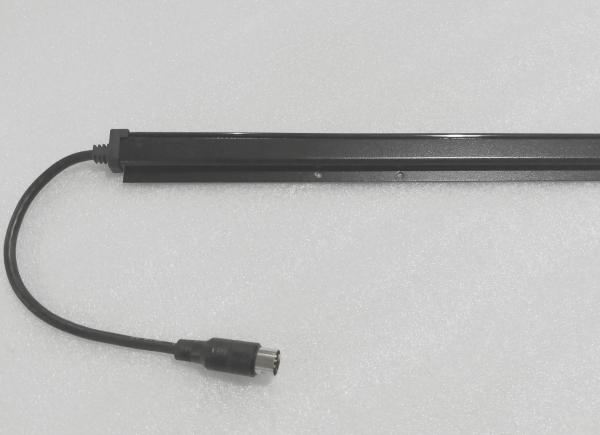

Metal Material Elevator Photocell WECO 917K Transistor Or Relay Output
Metal Material Elevator Photocell WECO 917K Transistor Or Relay Output
Metal Material Elevator Photocell WECO 917K Transistor Or Relay Output
Metal Material Elevator Photocell WECO 917K Transistor Or Relay Output
Specifications
Brand Name :
WECO
Model Number :
WECO-917K
Certification :
CE, CSA
Place of Origin :
CHINA
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1200000SETS/Year
Delivery Time :
8-10 Days
Packaging Details :
5sets in a bundle, 300sets by one pallet
Material :
Metal
Original :
China, YES
Category :
elevator parts, elevator door sensor
Detecting Range :
4m
Dimension :
2000*28*10mm
Mounting :
Flexible customized
Description

Metal Material Elevator Photocell WECO 917K Transistor Or Relay Output

Introduction

Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. Also this K profile full height door sensor is widely used and purchased because of slim thickness and special structure. The clients always install this WECO-917K model door sensor on passenger lift and cargo lift.

Morever, WECO-917K model elevator door photocell can connect with our Parted 3D model door photocell to achieve 3D protection function.

Specification

Technical Parameter 917K6 917K7
Number of Infra Red Diodes 17 Diodes 32 Diodes
Response Time 45ms relay output 61ms relay output
21ms transistor output 37ms transistor output
Scanning Beams 99-33 Beams 154-94 Beams
Detecting Height 20-1841mm
Redundary Function NO YES
Operation Temperature -20℃-+65℃
Detecting Range 0-4m
Light Immunity 100000Lux
Protection Level IP54
EMC
EN12015 General Circuit Level
EN12016
Voice Reminder after continuous detection for 15s, buzzer ON.
LED Interpretation Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction.
Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked.

Mounting Holes

Metal Material Elevator Photocell WECO 917K Transistor Or Relay Output

Package

Every piece packed in tube,five tubes in a bundle;

Each tube includes:

Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)

Why choose this model?

* Various outputs to match with different door operator’s demand.


* Door detector height can be customized.


* Replacement solution can be proved.

What's more?

--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.

--- We have two automatic production lines to ensure good quality and fast delivery time.

--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO.

--- Flexible and Untraceable payment terms.

--- Good after-sale service

Metal Material Elevator Photocell WECO 917K Transistor Or Relay Output
