Photoelectric Door Sensor Light Curtain Elevator Safety Edge WECO 957F
Photoelectric Door Sensor Light Curtain Elevator Safety Edge WECO 957F
Specifications
Brand Name :
WECO
Model Number :
WECO-917/ 957F
Certification :
CE
Place of Origin :
China
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1200000SETS/Year
Delivery Time :
8-10workdays
Packaging Details :
5sets in a bundles, pallet avaliable
Feature :
Toshiba Type
Length :
Customized
Product Name :
Toshibai Type 2 -IN-1 Light Curtain
Brand :
WECO
Type :
Elevator parts, Lift Spare Part
Description

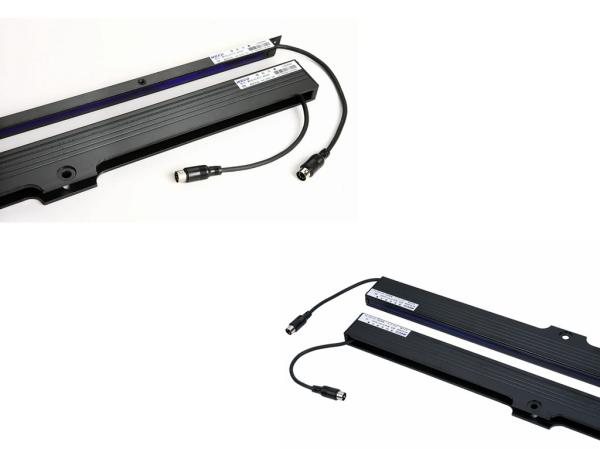

Photoelectric Door Sensor Light Curtain Elevator Safety Edge WECO 957F

About 2- IN- 1 light curtain is equal to door sensor + safety edge.

WECO-957F door sensor is also called Toshiba two- in- one door sensor which has been widely used already on lifts.

WECO-957F door sensor can perfectly substiteted our traditional safety edges through muilty infrared beams to achieve double protections.

Morever, WECO 2- IN- 1 light curtain has central opening and side opening mode. Also our door sensor has 917, 957 and 987 Series.
Besides, it can work together with our 3D sensor to ensure 3D protection.

Specifications

Technical Features 917F 957F
Number of Infra Red Diodes 32 Diodes 32 Diodes
Response Time Relay Output 61ms 61ms
Transistor Output 37ms 37ms
Scanning Beams 154~94 Beams
Infrared Diodes Range 59mm
The Mimimum Door Opening ≤20mm
The Maximum Door Opening ≥1800mm
Redundancy (one transimitter shielded after 120s detected absent) YES
Detecting Range 0-4000mm
Operation Temperature -20℃~+65℃
Light Immunity 100000 Lux sunlightproof
Protection Level IP54
EMC ( EN12015 EN12016) General circuit level Safety circuit level
LED Interpretation

1. Yellow LED and Red LED in Receiver on when blocked or in malfunction.
2. Yellow LED in receiver on and Red LED in receiver off without block.


Photoelectric Door Sensor Light Curtain Elevator Safety Edge WECO 957F

Mounting Holes and Dimension
Photoelectric Door Sensor Light Curtain Elevator Safety Edge WECO 957F

Shipping

1) By Express (3-7 working days), suitable for Small Quantity.

2) By Sea (15-30 days), suitable for regular Mass Production.

3) By Air (4-5 days), from Airport to Airport, suitable for urgent orders.


WHAT WECO HAVE?

--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years focus on elevator light curtain manufacturing and trading.

--- Our poducts has been sold to more then 40 countries and areas.

--- Flexible and Untraceable payment terms

--- Good and fast deliery time. As we have thousands sets light curtain in our stock.

--- Well-trained and disciplined packing team.
