Central Opening Weco Elevator Door Detector 6.6mm Slim For Passenger Lift
Central Opening Weco Elevator Door Detector 6.6mm Slim For Passenger Lift
Central Opening Weco Elevator Door Detector 6.6mm Slim For Passenger Lift
Central Opening Weco Elevator Door Detector 6.6mm Slim For Passenger Lift
Specifications
Brand Name :
WECO
Model Number :
WECO-917SIX
Certification :
CE, CSA
Place of Origin :
CHINA
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1200000SETS/Year
Delivery Time :
8-10 Days
Packaging Details :
5sets in a bundle, 300sets by one pallet
Voltage :
AC220
Original :
China
Product name :
Elevator Door Detector
Feature :
6.6mm thickness
Business tyep :
Manufaturer, trading
Applicable :
Elevator, Elevator Spare Parts
Description

Central Opening Weco Elevator Door Detector 6.6mm Slim For Passenger Lift

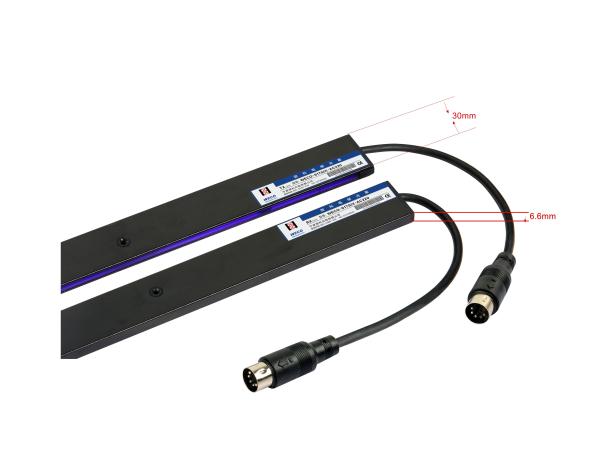

Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. WECO-917SIX model is a very slim model with our special technical so that only has 6.6mm thickness and had a good sales performance already in Europe market.

As below chart shows, you can see, the scanning beams is choosable for WECO elevator door sensor.

Specification

Technical Parameter 917SIX
Number of Infra Red Diodes 32 Diodes
Response Time 61ms relay output
37ms transistor output
Scanning Beams 154-94 Beams
Detecting Height 20-1841mm
Redundary Function YES
Operation Temperature -20℃-+65℃
Detecting Range 0-4m
Light Immunity 100000Lux
Protection Level IP54
EMC
EN12015 General Circuit Level
EN12016
Voice Reminder after continuous detection for 15s, buzzer ON.
LED Interpretation Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction.
Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked.

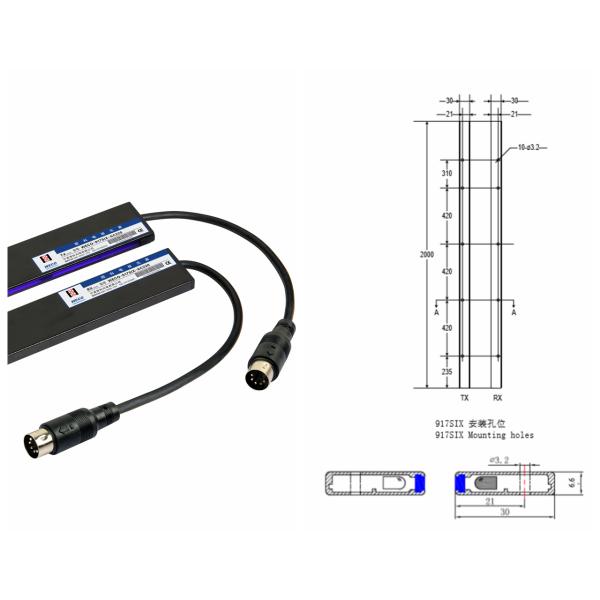

Size:

Central Opening Weco Elevator Door Detector 6.6mm Slim For Passenger Lift

Package

Every piece packed in tube,five tubes in a bundle;

Each tube includes:

Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)

What WECO Have?

--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.

--- We have two automatic production lines to ensure good quality and fast delivery time.

--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..

--- This model is only sold to overseas market to gurantee original WECO manufacturing.

--- Well-trained and disciplined packing team

--- We have Sophisticated and professional logistic agent.
