IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220
IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220
IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220
IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220
Specifications
Brand Name :
WECO
Model Number :
WECO-917K
Certification :
CE, CSA
Place of Origin :
CHINA
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1200000SETS/Year
Delivery Time :
8-10 Days
Packaging Details :
5sets in a bundle, 300sets by one pallet
Voltage :
Selectable
Protection Level :
IP54
Original :
China
Category :
Elevator spare parts, Light Curtain
Feature :
Stabilize and long life
Product name :
WECO Light Curtain
Description

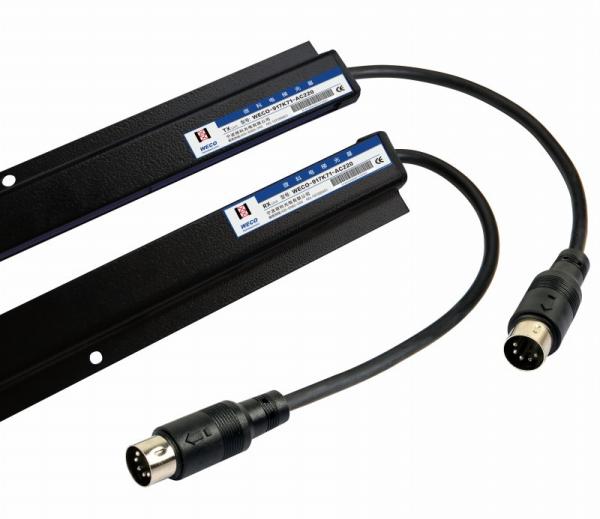

CE, Elevator Door Sensor, WECO Light Curtain 917K for Passenger Lift

Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. Also this K profile full height door sensor is widely used and purchased because of slim thickness and special structure. The clients always install this WECO-917K model door sensor on passenger lift and cargo lift.

Specification

Technical Parameter 917K6 917K7
Number of Infra Red Diodes 17 Diodes 32 Diodes
Response Time 45ms relay output 61ms relay output
21ms transistor output 37ms transistor output
Scanning Beams 99-33 Beams 154-94 Beams
Detecting Height 20-1841mm
Redundary Function NO YES
Operation Temperature -20℃-+65℃
Detecting Range 0-4m
Light Immunity 100000Lux
Protection Level IP54
EMC
EN12015 General Circuit Level
EN12016
Voice Reminder after continuous detection for 15s, buzzer ON.
LED Interpretation Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction.
Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked.

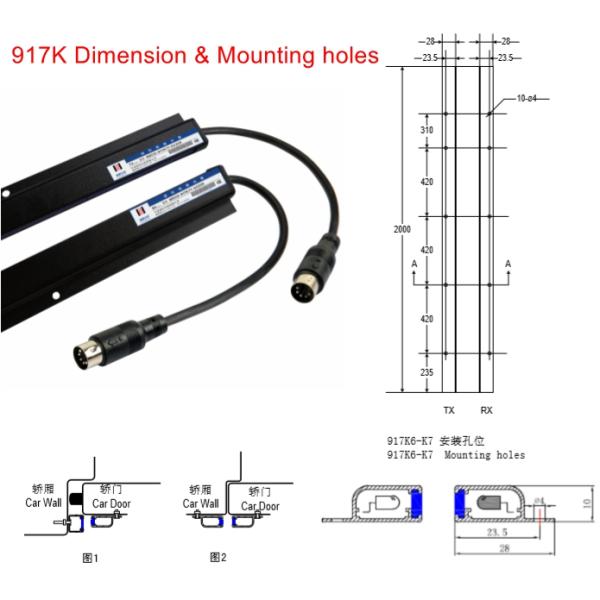

Size:

IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220

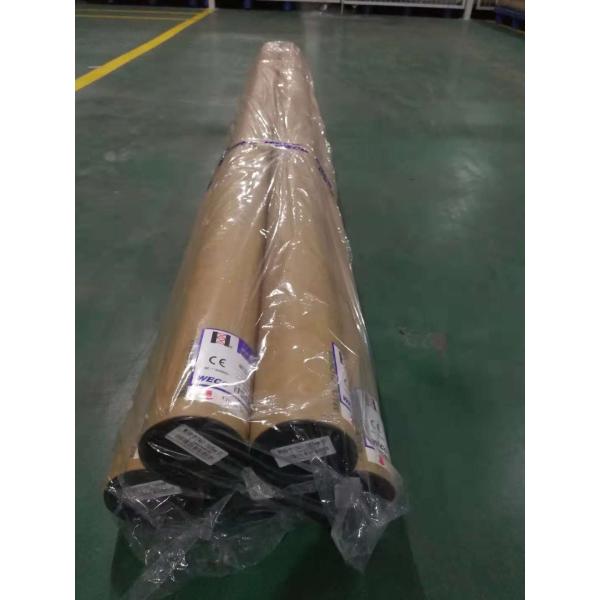

Package

Every piece packed in tube,five tubes in a bundle;
Each tube includes:

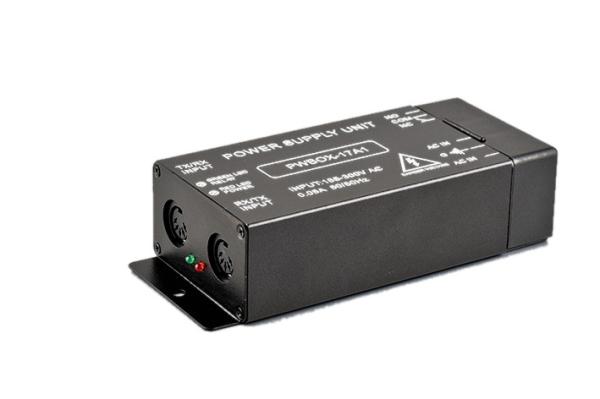

Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)


IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220

Why choose this model?


WECO-917K model elevator door detector has better prevent from dust / water protection because of special structure.

Also WECO-917K elevator door detector is applicable to work together with our parted 3D sensor to achieve 3D protection range.

What's more?


--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have two automatic production lines to ensure good quality and fast delivery time.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
