Original WECO Light Curtain Elevator Photocell 120s 2000mm X 28mm X 10mm
Original WECO Light Curtain Elevator Photocell 120s 2000mm X 28mm X 10mm
Original WECO Light Curtain Elevator Photocell 120s 2000mm X 28mm X 10mm
Original WECO Light Curtain Elevator Photocell 120s 2000mm X 28mm X 10mm
Specifications
Brand Name :
WECO
Model Number :
WECO-917Q
Certification :
CE, CCC
Place of Origin :
China
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1200000SETS/Year
Delivery Time :
5-10 workdays
Packaging Details :
5sets in a bundles, pallet avaliable
Model :
Customized
Applicable :
elevator, elevator parts
Feature :
Original & OEM
Dimension :
2000*28*10mm
Transportation :
Sea delivery suggested
Keywords :
Mitsubishi purchased
Description

Original WECO Light Curtain Elevator Photocell 120s 2000mm X 28mm X 10mm

Ningbo WECO Optoelectronics CO., LTD. developed elevator light curtain since 1998. And in 2004 year, WECO brand is already well known in China market.

WECO has 917, 957 and 987 series elevator light curtain. WECO-917Q profile full height door sensor is largely used and purchased by Canny Elevator because of slim thickness and special structure. And WECO-917Q71 is always purchased by Mitsubishi in Inida and Dubai like WECO-917A71-AC220V. The clients always install this WECO-Q profile door sensor on passenger lift and cargo lift.

Specification

Technical Features 917Q6 917Q7
Number of Infra Red Diodes 17 Diodes 32Diodes
Response Time Relay Output 45ms 61ms
Transistor Output 21ms 37ms
Scanning Beams 94~33 Beams 154~94 Beams
Infrared Diodes Range 117.5mm 58.8mm
The Mimimum Door Opening ≤20mm
The Maximum Door Opening ≥1800mm
Redundancy (one transimitter shielded after 120s detected absent) NO yes
Detecting Range 0-4000mm
Operation Temperature -20℃~+65℃
Light Immunity 100000 Lux
Protection Level IP54
EMC ( EN12015 EN12016) General circuit level
LED Interpretation

1. Yellow LED and Red LED in Receiver on when blocked or in malfunction.

2. Yellow LED in receiver on and Red LED in receiver off without block.

Sectional Dimension

Original WECO Light Curtain Elevator Photocell 120s 2000mm X 28mm X 10mm

Package

Every piece packed in tube,five tubes in a bundle;

Each tube includes:

Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)

Original WECO Light Curtain Elevator Photocell 120s 2000mm X 28mm X 10mm

WHAT WE HAVE?

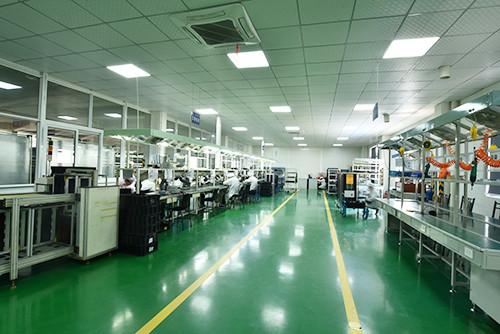

--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years focus on elevator light curtain manufacturing and trading.

--- We have the good reputation in more than 40 coutries.

--- We have plenty of light curtain in stock.

--- We have Good service and fast deliery time.
