Waterproof Safety Elevator Door Sensor Light Curtain Sensor Aluminum Body
Waterproof Safety Elevator Door Sensor Light Curtain Sensor Aluminum Body
Waterproof Safety Elevator Door Sensor Light Curtain Sensor Aluminum Body
Waterproof Safety Elevator Door Sensor Light Curtain Sensor Aluminum Body
Specifications
Brand Name :
WECO
Model Number :
WECO-917 / 957M
Certification :
CE CSA CCC
Place of Origin :
CHINA
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1400000SETS/Year
Delivery Time :
5-8 Workdays
Packaging Details :
5sets in a bundles, pallet avaliable
Usage :
Passenger / Cargo Elevator
Voltage :
AC220V, AC110V, DC24V
Material :
Aluminum body
Catagory :
Elevator Spare parts, Light Curtain
Feature :
NV-917M waterproof
Color :
Black
Description

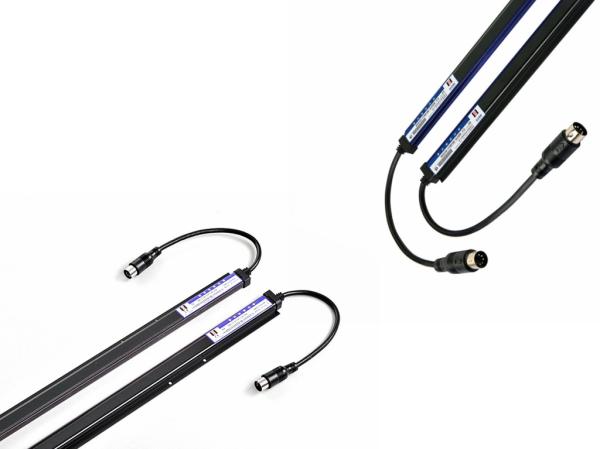

Waterproof Safety Elevator Door Sensor Light Curtain Sensor Aluminum Body

WECO-917M model elevator door sensor is a higher protection level model in WECO light curtain products, which can achieve IP65 protection level. Because of waterproof function, it is much more suitable for outdoor application usage.

Morever, the mounting hole of WECO-917M is customized on site.

Specification

Technical Features 917M6 917M7 957M6 957M7 957M8 957M9
Number of infra red diodes 17diodes 32diodes 17diodes 32diodes 40diodes 48diodes
Response time relay output 45ms 61ms 45ms 61ms 69ms 77ms
transistor output 21ms 37ms 21ms 37ms 45ms 53ms
Scanning Bema 94~33 beams 154~94 beams 94~33 beams 154~94 beams 194~118 beams 234~142 beams
Detecting Height 20~1841mm
Detecting range 0~4m
Operating Temperature -20℃~+65℃
Light immunity 1000000Lux sunlightproof
Redundancy NO YES NO YES NO
Led Interpretation The yellow LED and red LED in receiver is on when blocked or in malfunction
The yellow LED in receiver is on and red LED in receiver off without blocking.

Dimension and Mounting holes

Waterproof Safety Elevator Door Sensor Light Curtain Sensor Aluminum Body

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)

More about WECO
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..

--- Our products have been exported to Germany, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, India and many other countries.
