Lift Door Sensor WECO-917 / 957K Safety Light Barrier
Lift Door Sensor WECO-917 / 957K Safety Light Barrier
Lift Door Sensor WECO-917 / 957K Safety Light Barrier
Lift Door Sensor WECO-917 / 957K Safety Light Barrier
Specifications
Brand Name :
WECO
Model Number :
WECO-917 / 957K
Certification :
CE CSA CCC
Place of Origin :
CHINA
MOQ :
10SETS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1400000SETS/Year
Delivery Time :
5-8 Workdays
Packaging Details :
5sets in a bundles, pallet avaliable
Usage :
Passenger / Cargo Elevator
Voltage :
AC220V, AC110V, DC24V
Scaning beams :
94 beams / 154 Beams/ 194 Beams
Delivery :
Courier, Air, Sea
cataroy :
Elevator Parts, Elevator door sensor
Feature :
VEGA B-LIFT-2B
Description

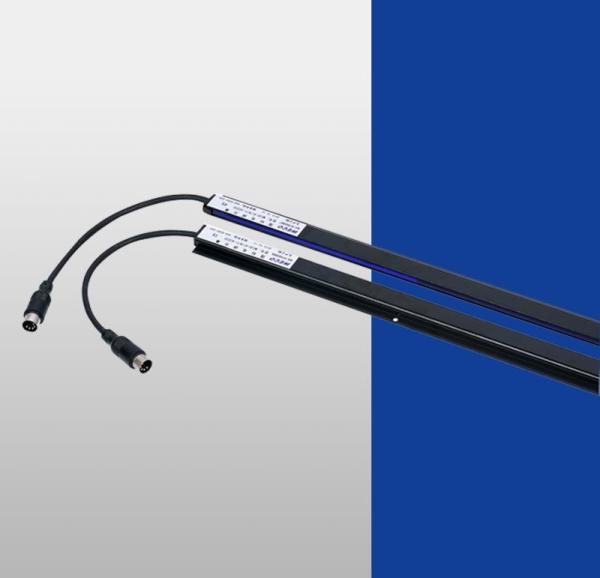

Lift Door Sensor WECO-917 / 957K Safety Light Barrier

WECO-917K model elevator door sensor is a special model design that customized mounting holes without any extra cost.

Beside, WECO-917K61/ WECO-987 series K type light curtain can perfectly replace B- LIFT- 2B/ 18B or B- LIFT- 202/ 218- E lift door photocell which the brand from VEGA in Italy.

Specification

Technical Features

917K6

917K7

957K6

957K7

957K8

987K8

Number of infra red diodes

17diodes

32diodes

17diodes

32diodes

40diodes

40diodes

Response time

relay output

45ms

61ms

45ms

61ms

69ms

69ms

transistor output

21ms

37ms

21ms

37ms

45ms

45ms

Scanning Bema

94~33 beams

154~94 beams

94~33 beams

154~94 beams

194~118 beams

194~118 beams

Detecting Height

20~1841mm

Detecting range

0~4m

Operating Temperature

-20℃~+65℃

Light immunity

1000000Lux

sunlightproof

Redundancy

NO

YES

NO

YES

NO

Led Interpretation

The yellow LED and red LED in receiver is on when blocked or in malfunction

The yellow LED in receiver is on and red LED in receiver off without blocking.



Package
Every piece packed in tube,five tubes in a bundle;


Each tube includes

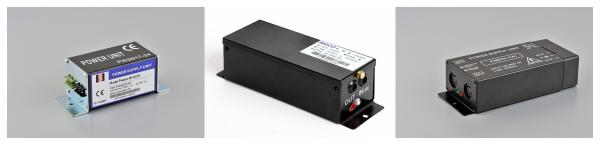

Power supply control unit (1pieces)


Durable flexible cable (2cables)
Transmitter (1pieces)


Receiver (1pieces)


User Manual (1copy)


Mounting accessories (1 set)

Lift Door Sensor WECO-917 / 957K Safety Light Barrier
More about WECO

♦ Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.

♦ WECO's in- house R& D conceptualize and develop products, totally owning the intellectual property rights and have three patents for invention,dozens of patents for utility model and multinomial software registration rights.

♦ WECO annual production capacity already at 1.5million. WECO is one of the biggest elevator light curtain manufacturer in the world. We have a plenty of stock for this model safety photocell both in English and Chinese version.

♦ Two automatic production lines and professional techinical team guarantee our light curtain with good quality. Each set products all has been scanned into our system for better tracking our production progress.

♦WECO safety light barrier has WECO-917, WECO-957, and WECO-987 three Series. The WECO-957 & 987 series is complaint to EN81-20 New europe standard.

Lift Door Sensor WECO-917 / 957K Safety Light Barrier
