Gazebo Canopy Tent

Description

The standard Gazebo Tent with the side height of 2.5m is available in 3x3m, 4x4m, 5x5m, and 6x6m. All the framework and junctions are made out of aluminum alloy. It is easy to assemble the roofs because it uses eyelets and sliding plastic resin balls to fix it. The optional accessories for the Gazebo tent include clear windows, lining, weight plate, rain gutter, digital printing, etc.

Gazebo Tents can be used as a single unit or combined by a rain gutter to make a larger space and a special structure style.

Specification

Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.

Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

Connector: strong hot-dip galvanized steel

Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius

Wind Loading: max. 100km/h (can be reinforced)

Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)

Easy to be assembled and dismantled, movable. No pole inside, 100% available interior space.

Fixing Methods

Applications

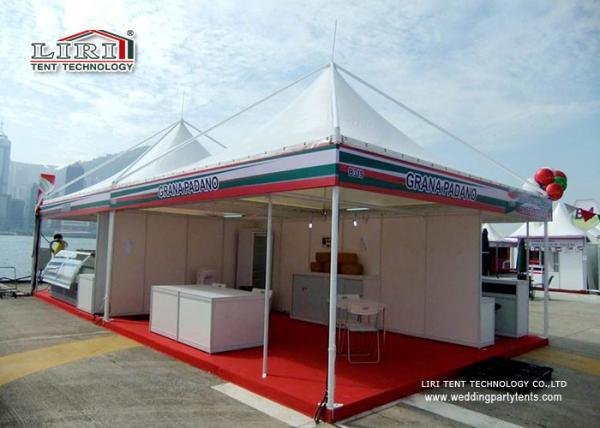

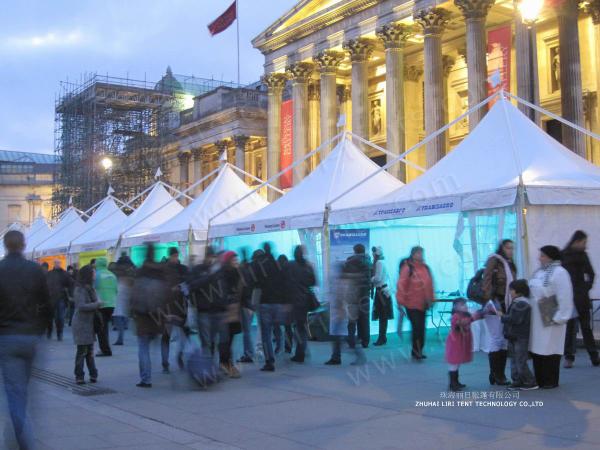

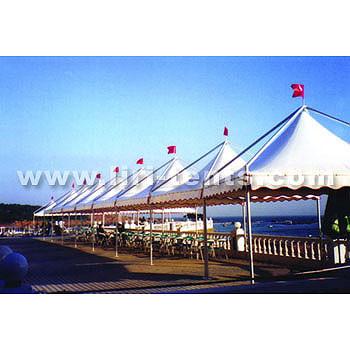

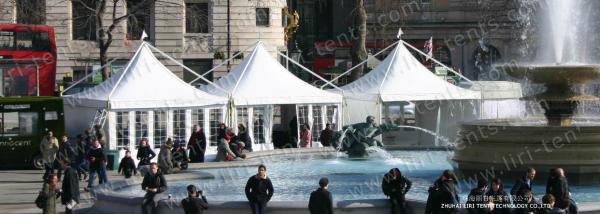

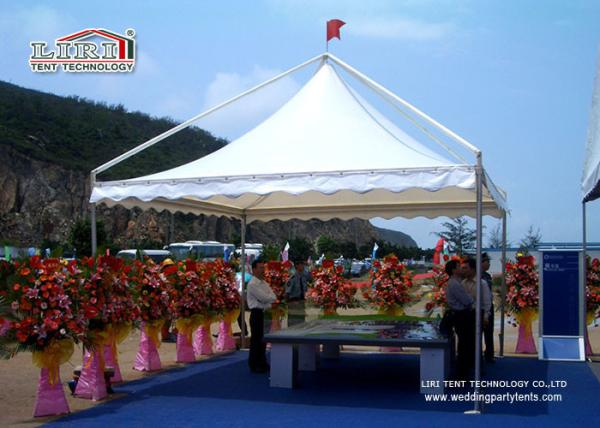

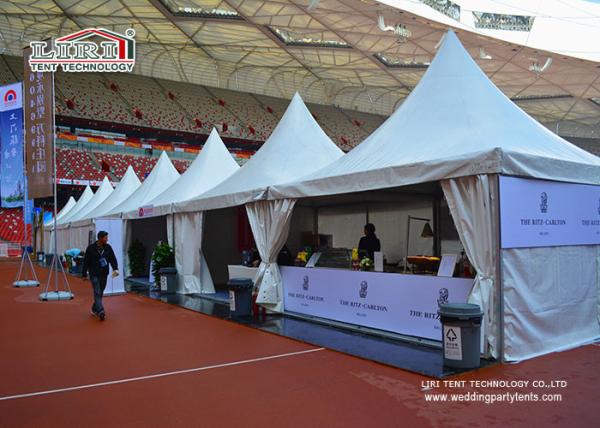

Widely used for parties, weddings, events, celebrations, sports, trade shows, warehouse, Hajj, conferences, cafe shops, restaurants, corporate events, etc.

Accessories:

Covers: colorful cover, transparent cover, inflatable roof cover

Windows: dome or square clear PVC windows, mesh window, glass window for glass wall

Wooden Flooring System: cassette flooring system

Doors: single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)

Wall: soft PVC fabric wall, glass wall, ABS hard wall.

Fixing Methods: ground anchors, expandable bolts and weight plate.

Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
