Multipurpose Rain Cover Garden Use Pagoda Tent Easy to Install

The standard Pagoda Tent series is available in 3x3m, 4x4m, 5x5m, and 6x6m. Pagoda Tent

has a side height of 2.5m. This type of Pagoda tent uses a 3 channel 65x65x2.5mm

aluminum alloy. The standard 8x8m and 10x10m Pagoda with a 2.6 side height uses a 4

channel 122x68x3mm aluminum alloy and the wind loading is 80km/h (0.3kn/m2).

Chart for technical data of Pagoda tent:

Liri Tent Series

Description of

l Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.

l Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

l Connector: strong hot-dip galvanized steel

l Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius

l Wind Loading: max. 100km/h (can be reinforced)

l Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)

l Easy to be assembled and dismantled, movable.

l No pole inside, 100% available interior space.

Applications:

Widely used for parties, weddings, events, celebrations, sports, trade shows, warehouse, Hajj, conferences, cafe shops, restaurants, corporate events, etc.

Pational Accessories of Pagoda Tent:

· Covers: colorful cover, transparent cover, inflatable roof cover
· Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
· Wooden Flooring System: VIP cassette flooring, simple cassette flooring
· Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
· Fixing Methods: ground anchors, weight plate, expandable bolts
· Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
· Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

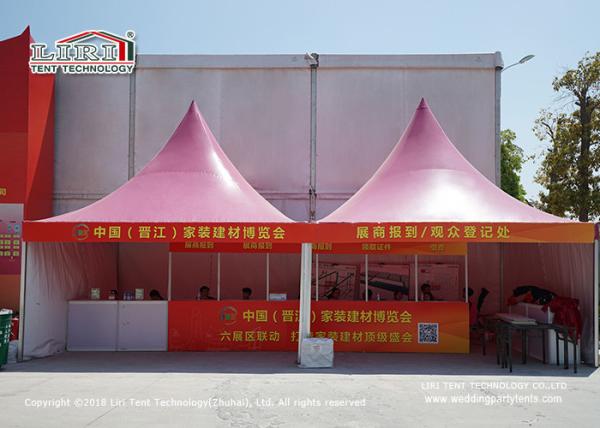

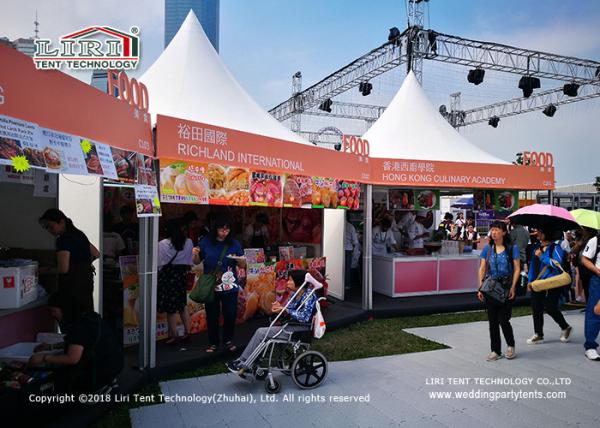

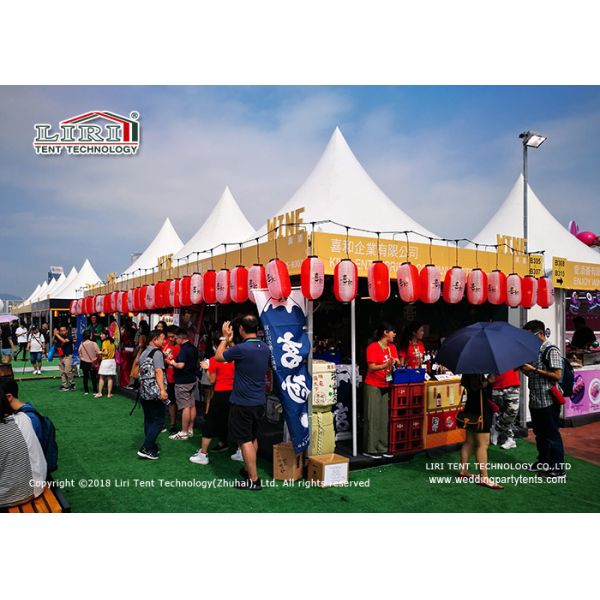

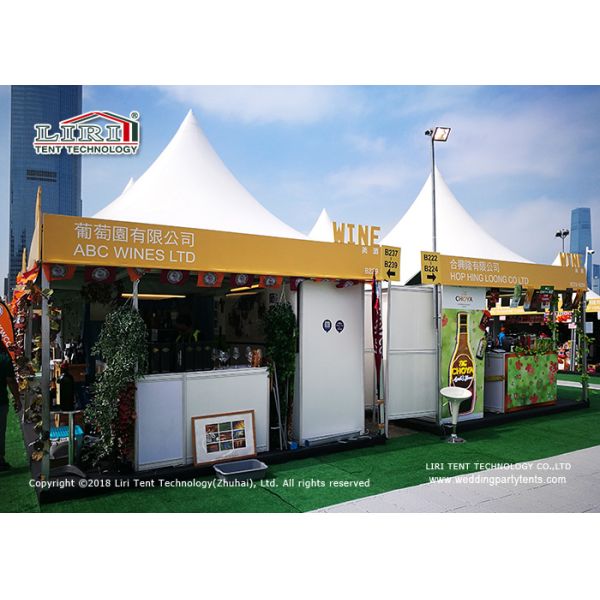

Picture of tent for reference:
