Specifications
Brand Name :
LIRI TENT
Model Number :
BT/HP25M
Certification :
Germany TUV; IFAI; NFPA; ISO9001:2008
Place of Origin :
Zhuhai City , Guangdong Province, China
MOQ :
1set
Price :
USD39-89/SQM
Payment Terms :
Western Union, L/C, MoneyGram, T/T
Supply Ability :
50, 000 sqm/ month
Delivery Time :
15 Wrokding Day
Packaging Details :
Aluminum frame packed in membrane film, hardware packed in solid carton box
Cover :
double PVC-coated polyester textile
Frame :
hard pressed extruded aluminium alloy roof
Inspection :
Germany TUV; IFAI; NFPA; ISO9001:2008
Packaging :
1. aluminum frame packed in membrane film 2. roof and sidewall in professional PVC carry bag
Description

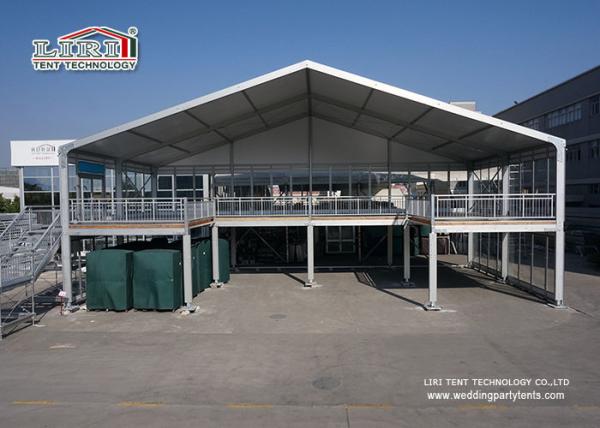

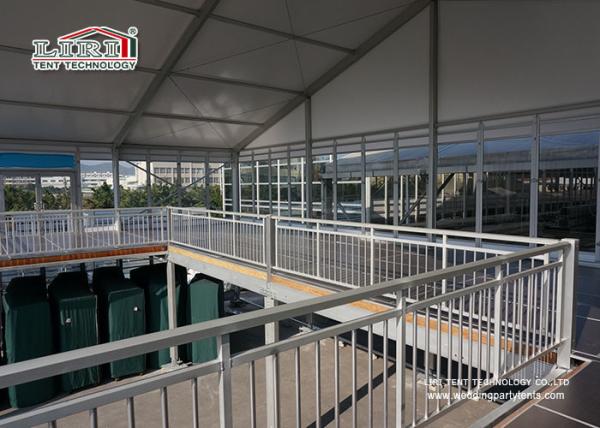

Two Story Tent Double Decker Tent with Glass Wall and ABS Soild Walls for Outdoor Events

1. Application of Two Story Tent Double Decker Tent with Glass Wall and ABS Soild Walls for Outdoor Events :

As for two Story Tent Double Decker Tent w, it is popular for kinds of big exhibition , Trade Show, since it is special arched roof , but main important reason is our arched roof tent with 8m side height , it is enough height for kinds of shows. In addition , this tents are available various accessories, ABS hard wall, Glass Wall, Glass door and so on.
The tent, canopy and marquee tent can be widely used as the weddings tents, parties marquee tent, exhibition tents, conferences marquee tents, festivals celebrations canoy, corporate events tents or other outdoor events canopy, etc...The LIRI double decker tent system has succeeded not only because of its functional superiority and style: Its outstanding features master product versatility, safety and high durability

2. Specification for the Outdoor Exhibition Tents ( ATHseries ) :

Main frame profile size for BT series: 204X120X4 mm
Wind load : 100 km/h
Minimum tent length: In order to reach the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length .

Liri Tent Series :
Tent Roof Type Span Width Bay Distance Eave Height
regular 3m~60m 3m/5m 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m
dome 3m~40m 3m/5m 2.6m/3m/3.23m/3.88m/3.92m
high peak 3m~10m 3m/4m/5m/6m/8m/10m 2.5m/2.6m
curve 15m~40m 5m 3.87m/3.89m
polygon 10m~60m 5m 4m
cube 10m~30m 5m 5m


Glass / ABS Soild Wall Two Storey Tent Outdoor Event Tents 204X120X4mm


3. Materials of Outdoor Exhibition Tents:
Fabric : Double PVC coated polyester fabric, 750 g/sqm - 900 g/sqm , water proof , UV resistance , fire retardant according to standard NFPA701 , CFM & DIN4102 B1/M2
Frame : Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized

4.Optional Accessories:

1) Sidewall-White PVC wall, transparent PVC wall, colorful PVC sidall, ABS wall, Glass wall, Sandwich wall, Steel wall.
2) Windows-Clear PVC window, breathable glass window.
3) Floor-Normal cassett floor system, VIP cassett floor system.
4) Door-Double-swings glass door, Double-swings fire glass door, Double-swings aluminun door, Automatic rooling door, one man door.
5) Decoration curtain and linning-Flat or pleating.
6) Furniture-Round tables, chairs, stages and ect...
7) Electric equipment-Air conditioner, lighting system.
8) Others-printing Ads, artificial grass, ramp, transport rack etc


Glass / ABS Soild Wall Two Storey Tent Outdoor Event Tents 204X120X4mm

5. Specifications of Our Outdoor Exhibition Tents

Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.


6.Fxing Methods :

1) If it is concrete ground, pls use the expandable bolts.
2) If it is tarmac ground or grass ground or sand ground or other soft grounds, pls use the steel anchors;
3) If it is marble or tile ground or other kind indestructible grounds, pls use the weight plates system;
4) If you will make the concrete bases to fix the tent, pls use the embeded bolts M24x500mm.
Liri Tents Trade Mark Certificate

7. Packaging of Our Outdoor Exhibition Tents


aluminum frame packed in membrane film
hardware packed in solid carton box
roof and sidewall in professional PVC carry bag




What need to mention for the of Large Waterproof White Aluminum Outdoor Event Tent:
1)No pole inside,space can be 100% utilized.
2)Easy to set up and take down.Convenient to transport and store.
3)Installation on any grounds with Expansion screw/Steel nail(pin)/Weighting plate.


8. Contact Us

Company Name: Zhuhai Liri Tent Technology Co., Ltd.
Sales: Silvia Zeng
Tel: +86-756-6302920 Fax: +86-756-5311018
Mobile & whatsapp : +86-18818651016
