Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant
Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant
Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant
Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant
Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant
Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant
Specifications
Brand Name :
LIRI TENT
Model Number :
TFS
Certification :
ISO9001:2008, SGS, TUV, CFM, IFAI, etc.
Place of Origin :
CHINA( Mainland), Guangdong
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000sqm/month
Delivery Time :
within 20 days
Packaging Details :
1 . membrane film. 2. Carton . 3. PVC carry bag .
Feature :
Waterproof, Flame Retardant, UV-resistant
Color Option :
White , Red , Black , Green And More
Wind Resistance :
100 Km/h
Material :
First Grade Aluminum And PVC Raw Material
Connectors :
Hot-DIP Galvanized Steel
Roof Fixing :
Tensioning Bar
Description

Flame Retardant TFS Tent Aluminium Marquee White PVC Roof Cover

Description :

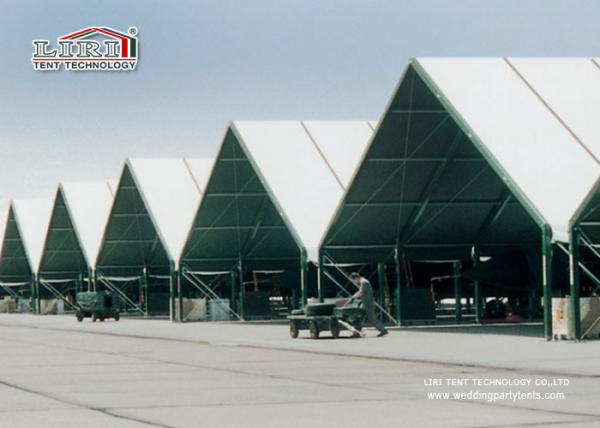

This TFS Tent is one of our newest products in the tent series, it was designed by us. More and more clients prefer this tent because of its special and elegant “heart” shape. And it is widely used for exhibiton, golfing, tennis, horse racing, motor sport or any other type of events, our innovative and user- friendly Two StoryTent systems are a sure winner every time.

LIRI TENT is the 1st aluminum tent manufacturer in China since 1997. In the past 19 years, we own so many good reputation from all over the world.

This TFS tent from Liri Tent has no poles in the interior of the structure which makes it more spacious than other pole tent, frame tent, or steel tent designs. It's specially for your space limited and this structure helps it become a place of high class for events like golf, horse racing, car racing, and so on.


Specifications :

Type

Span Width

Bay Distance

Eave Height

Ridge Height

Main Profile

CBT

15m/49.2'

5m/16.4'

3.87m

8m

204x120x4mm(4-channel)

CBT

20m/65.6'

5m/16.4'

3.87m

8.8m

204x120x4mm(4-channel)

CBT

25m/82'

5m/16.4'

3.87m

9.9m

204x120x4mm(4-channel)

CTH

20m/65.6'

5m/16.4'

3.89m

8.9m

300x120x5mm(4-channel)

CTH

25m/82'

5m/16.4'

3.89m

10m

300x120x5mm(4-channel)

CTH

30m/98.4'

5m/16.4'

3.89m

11.2m

300x120x5mm(4-channel)

CTH

40m/131.2'

5m/16.4'

3.89m

13.5m

300x120x5mm(4-channel)

The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available.

Materials :

1 . Frame struss : hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.

2 . Fabric cover : high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

3 . Connector : strong hot-dip galvanized steel

4 . Allowed temperature condition: -30 degree Celsius~+70 degree Celsius

5 . Wind load : max. 100km/h (can be reinforced)

6 . Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)

7 . Easy to be assembled and dismantled, movable.

8 . No pole inside, 100% available interior space.

Our Cassette Flooring :

Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant

Fixing Methods :

Aluminium Marquee Tent White PVC Roof Cover Metal Frame Tents Retardant

Contact :

Email : tent65@liri-tents.com

Mobile / whatsapp : +86-188-1865-1021
