Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Fast Installation Polygon Roof Aluminum Structure For Badminton Courts
Specifications
Brand Name :
LIRI ARCHITECTURE
Model Number :
PG25m/600
Certification :
ISO9001:2015, SGS, TUV, CFM, IFAI, CE, etc.
Place of Origin :
CHINA( Mainland), Guangdong
MOQ :
1 set
Price :
65~85USD/sqm
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100,000sqm/month
Delivery Time :
within 20 days
Packaging Details :
1. membrane film, 2. Carton, 3. PVC carry bag
Fixing Methods :
Expandable bolts for concrete base
Application :
Badminton courts, sports venues
Side Walls :
PVC fabric in white and transparent color
Life Span :
Over 15 years for the aluminum frame
Size (WxL) :
25m x 50m
Side Height :
6000mm
Seasons :
4 Seasons
Roof Color :
White
Sides Color :
White
Description

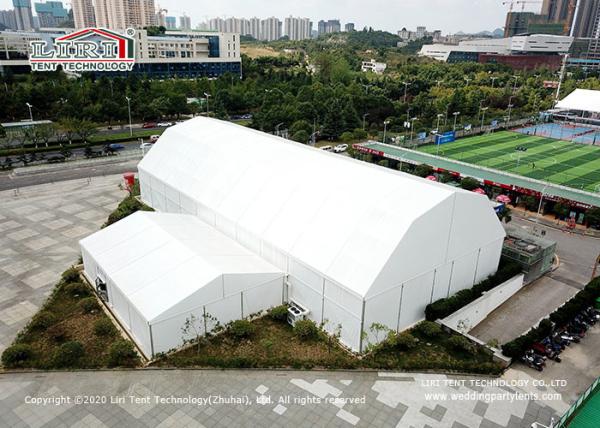

Fast-installation Polygon Roof Aluminum Structure For Badminton Courts

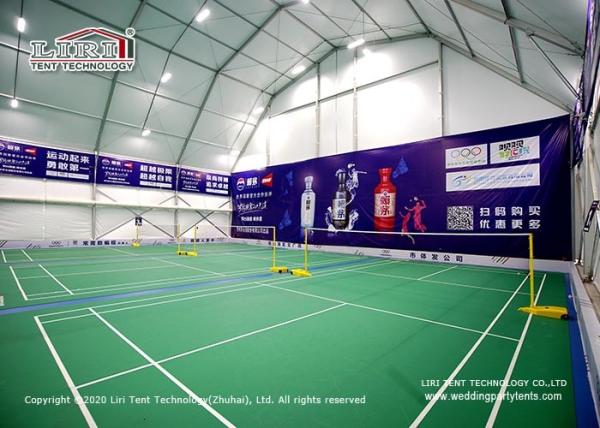

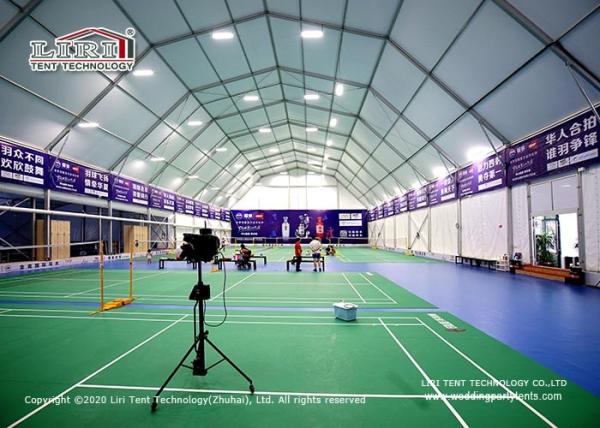

Badminton has certain requirements for the height of the space. We recommend using higher-top tent types, such as Polygon Top Tent, TFS Curved Roof Tent. 20m x 15m is recommended for a single badminton hall, 25m x 18m is recommended for a double badminton hall, and a design with a side height of 6m or more is recommended. We can also customize 8m, 10m, and other higher side heights according to customer needs to meet more space needs.


Fast Installation Polygon Roof Aluminum Structure For Badminton CourtsFast Installation Polygon Roof Aluminum Structure For Badminton CourtsFast Installation Polygon Roof Aluminum Structure For Badminton CourtsFast Installation Polygon Roof Aluminum Structure For Badminton CourtsFast Installation Polygon Roof Aluminum Structure For Badminton Courts

Dimension Clear Span Eave Height Ridge Height Bay Distance
BT 18 18m 4m 7.06m 5m
BT 20 20m 4m 7.1m 5m
BT 25 25m 4m 7.25m 5m
EBT 30 30m 4m 8.9m 5m
TH 40 40m 4m 10.4m 5m
LH 50 50m 5m 13m 5m
HH 60 60m 5m 14.6m 5m
Main Profile 204x120x4mm, 256x121x5mm, 300x120x5mm...



Specifications & Features

  • Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
  • Roof Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
  • Connector: strong hot-dip galvanized steel
  • Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
  • Wind Loading: max. 100km/h (can be reinforced)
  • Snow Loading: 30kg/sqm
  • Easy to be assembled and dismantled, moved from place to place.
  • No pole inside, 100% available interior space.



Optional Accessories

  • Windows: transparent PVC fabric, glass windows...
  • Roof Shape: regular A shape, dome roof, polygonal, curved roof...
  • Doors: PVC sliding doors, double-wing glass doors...
  • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
  • Fixing Tools: steel anchors, weight plate, expandable bolts...
  • Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
  • Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.

Packing

  • Aluminum frame packed in membrane film
  • Hardware packed in solid carton box
  • Roof and sidewall in a self-made PVC carry bag
  • Tailor-made packing is available


Contact

Mr. Terry Chan

+86 139 2696 0292 (WA)
