Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod
Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod
Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod
Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod
Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod
Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod
Specifications
Brand Name :
Lehler
Model Number :
WWS-210
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 pieces 7 work days
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Name :
Wedge Wire Cylinder
Stainless Steel :
316L
Slot Opening :
0.025mm
Type :
From inside to outside
Support rod :
Circular
Profile wire :
Vertical
Description

Wedge wire Cylinder / Screen for Filtration and Separation

1. Wire Screen Cylinder is produced through the method of electric resistance welding,

wires with profile profiles are welded to support rod at 90 degrees.

The distance between two profile wires is the slot opening, which is the filtration rate.

The structure is FOTI(flow-out-to-in) & FITO(flow-in-to-out).

Minimum slot is 20um.

2.Specification of Wire Screen?

  • Minimum slot: 0.02mm(20um)
  • Mimimum diameter: 16mm
  • Maxmum Length: 6000mm
  • Perfect roundness
  • Very smooth wire surface
  • Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm...
  • Support Rod size: 2.0x3.0mm, 3.0x5.0mm, 5.0x8.0mm
Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

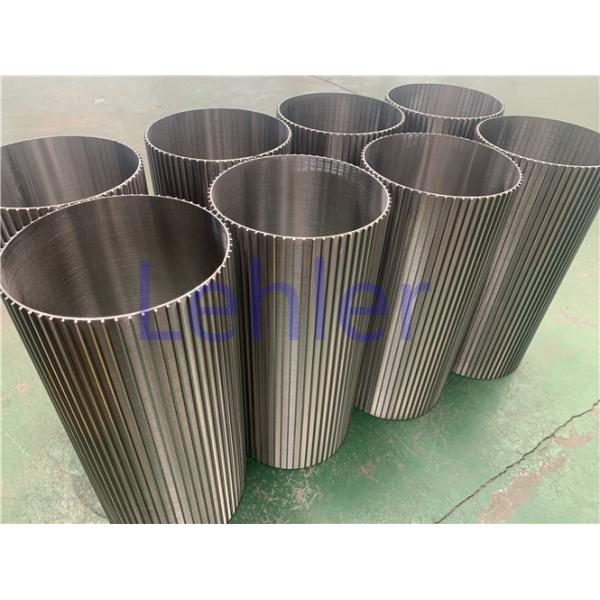

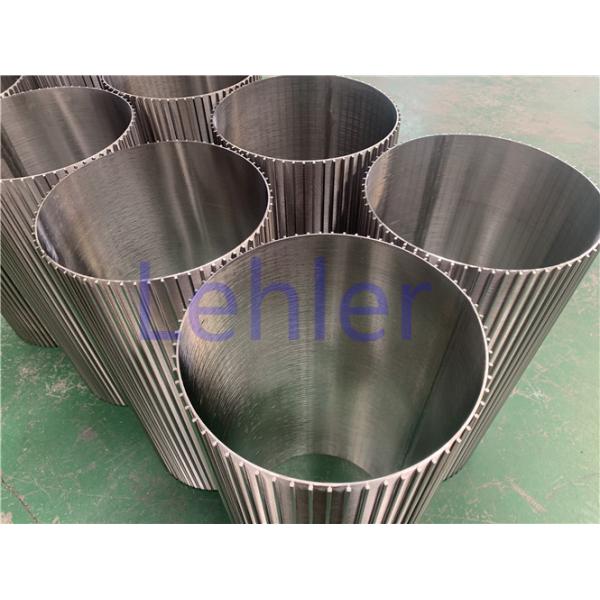

3.Details pictures of Wire Screen

Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod

Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod

Lehler Wedge Wire Screen Cylinders , Vertical Wire Screen Circular Support Rod

4. Application of wedge wire screen?

  • Coatings
  • Chemical
  • Petrochemical
  • Pulp and paper
  • Food and beverage​
  • Solid-liquid separation
  • Waste water treatment
  • Mineral and aggregate processing

5. Advantages of wedge wire screen?​

  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
