Titanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mm
Titanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mm
Titanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mm
Titanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mm
Specifications
Brand Name :
Lehler
Model Number :
Resin Trap 90
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Price :
Negotiable
Supply Ability :
10 pieces 10 work days
Special Material :
Titanium
DIA :
90mm
Length :
890mm
Profile wire :
1.0*2.0mm
Support rod :
2.0*3.0mm
Slot :
200 micron
Description

Titanium Special Material Wedge Wire Resin Trap / Resin Trap Filter / Slotted Screens Resin Traps

1. Why we need resin trap?

Lehler wedge wire resin traps can can prevent loss of resins and keep the costly media in place.

It is not only to prevent the loss of costly medias, but also to avoid damaging downstream equipment.

Lehler design and manufacture resin traps according to the exact media particle size.

Lehler design and manufacture resin traps resin in a wide variety of materials and sizes.

2. Lehler resin trap Benifits?

Lehler resin trap can prevent loss of resins and keep the costly media in place.
Lehler resin trap can prevent the damage to the pipe fittings.
Lehler resin trap can prevent the environmental damage.
Lehler resin trap can prevent cross contamination of resins.

3.Specification of Wedge Wire?

Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

4.Details pictures of Resin traps:

Titanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mmTitanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mmTitanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mm

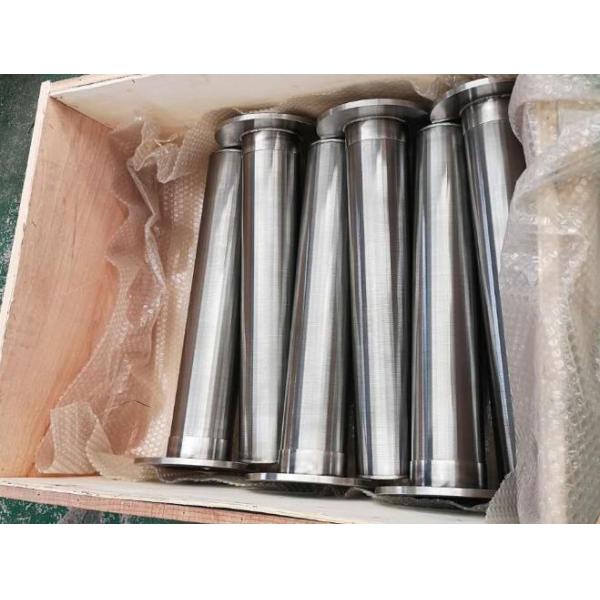

Packing Picture:

Titanium Wedge Wire Strainer , Wedge Wire Screen Filter 200 Micron Length 890mm
5. Advantages of resin traps?

  1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  4. High-precision slot opening: Minimum Slot opening is 20 microns.
