LSG-CSG11 Catalyst Support Grid Applied To Hydrogen - Action Reactor
LSG-CSG11 Catalyst Support Grid Applied To Hydrogen - Action Reactor
LSG-CSG11 Catalyst Support Grid Applied To Hydrogen - Action Reactor
LSG-CSG11 Catalyst Support Grid Applied To Hydrogen - Action Reactor
Specifications
Brand Name :
Lehler
Model Number :
LSG-CSG11
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
7 pieces 7 work days
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Product Name :
Support Grid
Application :
Hydrogen-action Reactor
Profile wire :
2*4 mm
Support rod :
3*5 mm
Slot :
50 micron
DIA :
980 mm
Description

Hydrogen-action Reactor Wedge Wire Support Grid / Catalyst Support Grid

1. Lehler Support Grid

Flat, framed and unframed support grid can be manufactured with rectangular or round support rods.

Support Grid magnify vibration with drum-tight tension and withstand violent vibrating action.

Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

2.Features and benefits:

Large open slots increase screening efficiency and promote precise sizing.

The design enhances efficiency by substantially reducing blinding and pegging.

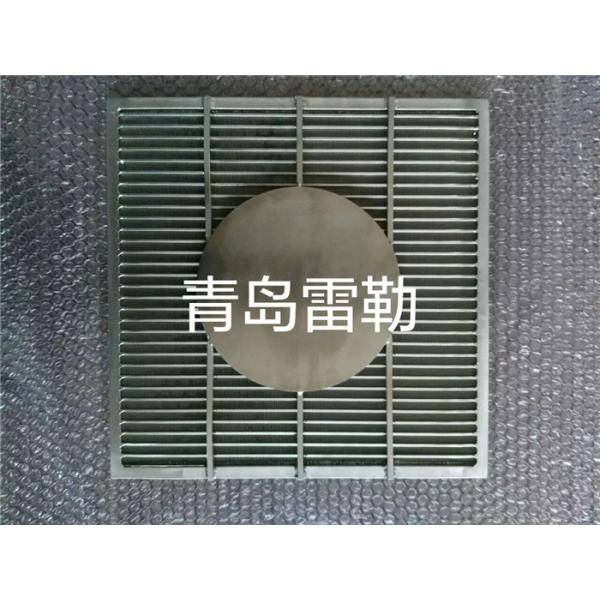

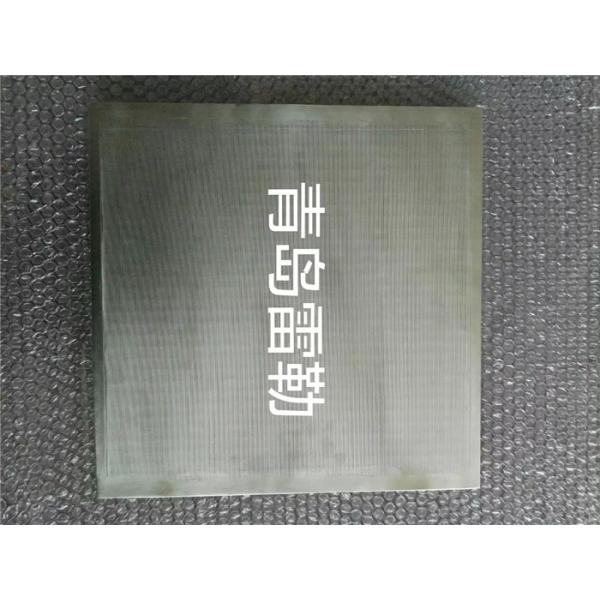

3.Details pictures of Lehler Sieve Bend Screen

LSG-CSG11 Catalyst Support Grid Applied To Hydrogen - Action Reactor

LSG-CSG11 Catalyst Support Grid Applied To Hydrogen - Action ReactorLSG-CSG11 Catalyst Support Grid Applied To Hydrogen - Action Reactor

4. Application of Lehler Support Grid?

  • Aggregate

  • Dewatering

  • Chemical application include fertilizer

  • Mining Application include coal, potash, taconite, sand and gravel

  • Food application include potatoes, vegetables, sugar, cornstarch and cereal.

  • For application where sizing accuracy is critical. Ideal for reducing blinding and pegging

5. Advantages of Support Grid?

  1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  4. High-precision slot opening: Minimum Slot opening is 20 microns.
