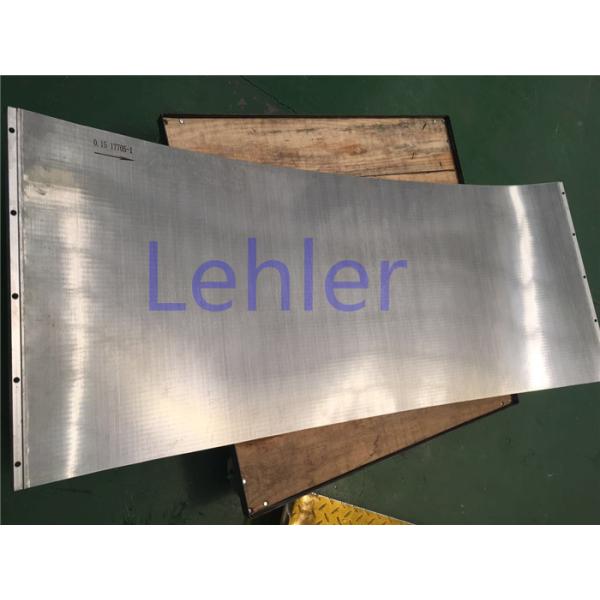

Pulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot Opening
Pulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot Opening
Pulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot Opening
Pulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot Opening
Specifications
Brand Name :
Lehler
Model Number :
SBS-1727
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Supply Ability :
10 pieces per 7 work days
Product Name :
Sieve Bend Screen
Application :
Pulp and Paper industry
Material :
SS316L
Dimension :
710x1727 mm
Frame :
L-Shape
Slot :
150 micron
Description

Pulp and Paper Industry Wedge Wire Sieve Bend Screen for Dewatering and Recovery

1. Wedge Wire Sieve Bend Screen is widely used for Pulp and paper industries.

Lehler Sieve Bend Screens is a pre-filter to improve the performance of the clarifier by drastically reducing the load.

A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

2.Specification of Lehler Sieve bend Screen?

Profile wire Support rod
0.76x1.5mm 2.0x3.0mm
1.5x2.5mm 2.0x3.0mm
2.0x3.0mm 3.0x5.0mm
2.0x4.0mm 3.0x5.0mm
2.5x3.0mm 3.0x5.0mm
3.0x5.0mm 3.0x5.0mm
3.0x6.0mm 5.0x8.0mm

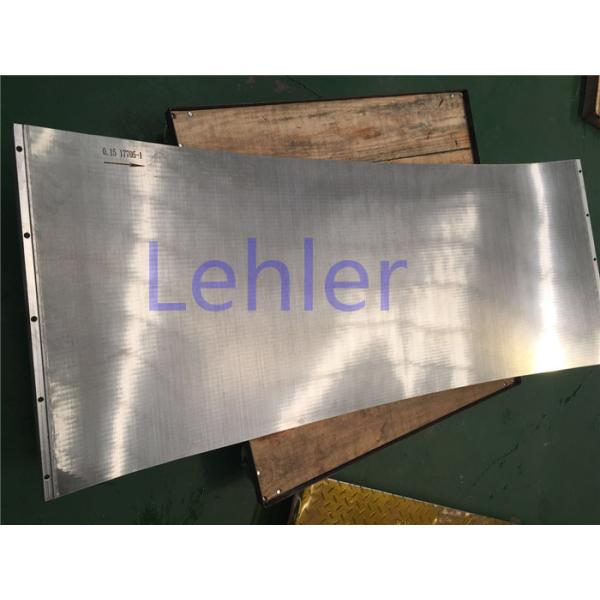

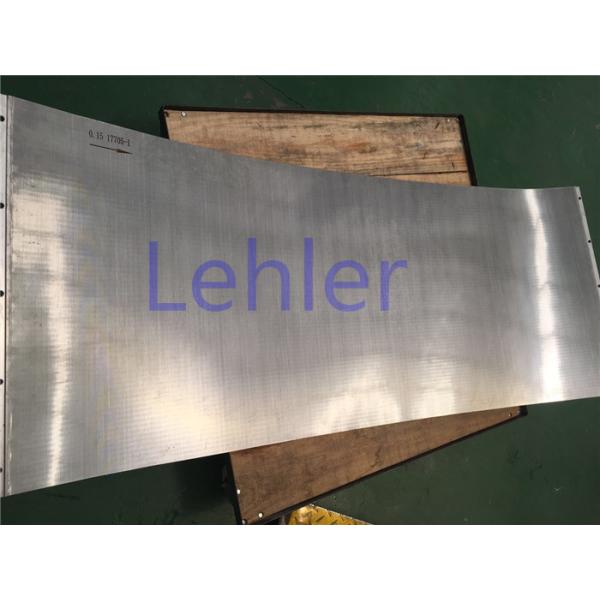

3.Details pictures of Sieve bend Screen:

Pulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot Opening

Pulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot OpeningPulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot Opening

Pulp / Paper Industry Sieve Bend Screen 710*1727mm High - Precision Slot Opening

4. Application of Sieve bend Screen?

  • Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

  • Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.​

5. Advantages of Sieve bend Screen?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
