120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction
120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction
120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction
120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction
Specifications
Brand Name :
Lehler
Model Number :
SBS-1727
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Product :
Sieve Bend Starch Screen
Application :
Starch industry
Material :
SS316L
Width :
585, 710, 825 mm
Feeding pressure :
0.2-0.4 Mpa
Angle :
120 degree
Description

120 Degree Sieve Bend Starch Screen / Wedge Wire Sieve Bend Screen for Starch

1. Lehler sieve bend profile wire is 0.5 degree slanted, which is very efficient for filtration and separation.

Lehler Sieve Bend Screens is a pre-filter to improve the performance of the clarifier by drastically reducing the load.

A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

2.Specification of Lehler Sieve bend Screen?

Profile wire Support rod
0.76x1.5mm 2.0x3.0mm
1.5x2.5mm 2.0x3.0mm
2.0x3.0mm 3.0x5.0mm
2.0x4.0mm 3.0x5.0mm
2.5x3.0mm 3.0x5.0mm
3.0x5.0mm 3.0x5.0mm
3.0x6.0mm 5.0x8.0mm

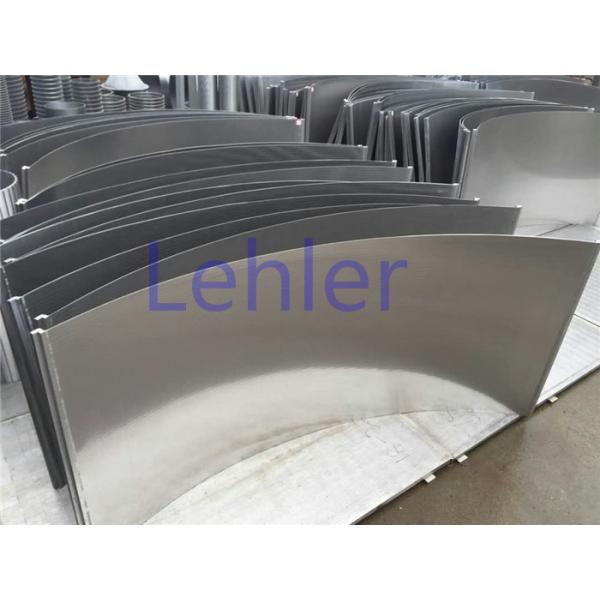

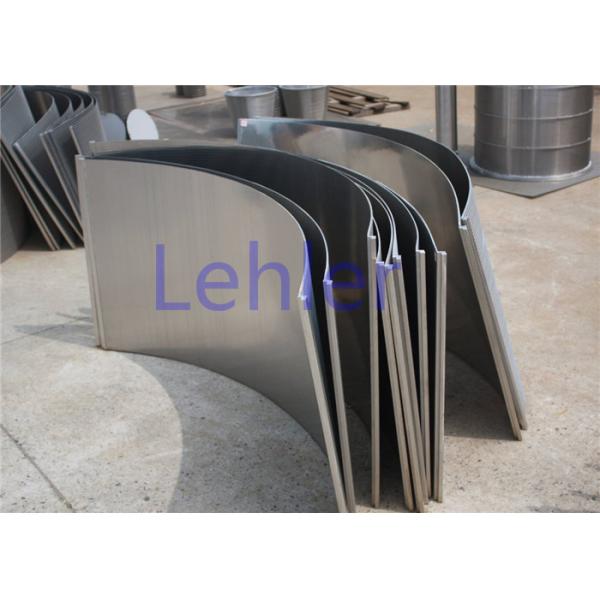

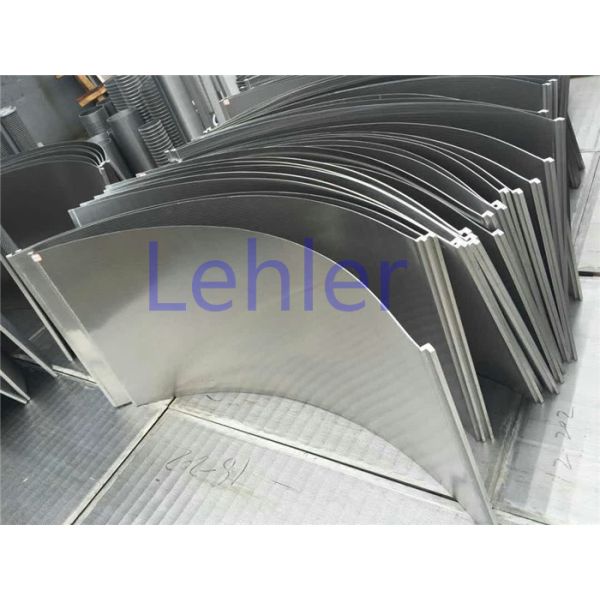

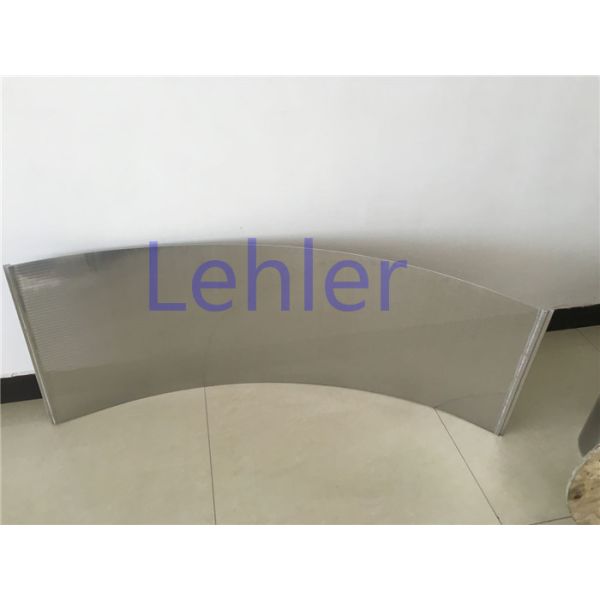

3.Details pictures of Sieve bend Screen:

120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction

120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction

120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction120 Degree Sieve Bend Screen 585 / 710 / 825mm Non - Clogging Construction

4. Application of Sieve bend Screen?

  • Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

  • Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.​

5. Advantages of Sieve bend Screen?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
