Industrial Wedge Wire Sieve Filters , Stainless Steel Sieve Mesh Framed
Industrial Wedge Wire Sieve Filters , Stainless Steel Sieve Mesh Framed
Industrial Wedge Wire Sieve Filters , Stainless Steel Sieve Mesh Framed
Industrial Wedge Wire Sieve Filters , Stainless Steel Sieve Mesh Framed
Specifications
Brand Name :
Lehler
Model Number :
SBS-750
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Name :
Sieve Bend Screen
Application :
separation
Support rod :
2.0x3.0 mm
Profile wire :
1.0x2.0 mm
Frame :
yes
Material :
SS304
Description

Industrial Wedge Wire Screen / Wedge Wire Sieve Bend Screen for Separation

1. Wedge Wire Sieve bend Screen Introduction:

A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

Lehler Sieve Bend Screens is a pre-filter to improve the performance of the clarifier by drastically reducing the load.

2.Specification of Lehler Sieve bend Screen?

Profile wire Support rod
0.76x1.5mm 2.0x3.0mm
1.5x2.5mm 2.0x3.0mm
2.0x3.0mm 3.0x5.0mm
2.0x4.0mm 3.0x5.0mm
2.5x3.0mm 3.0x5.0mm
3.0x5.0mm 3.0x5.0mm
3.0x6.0mm 5.0x8.0mm

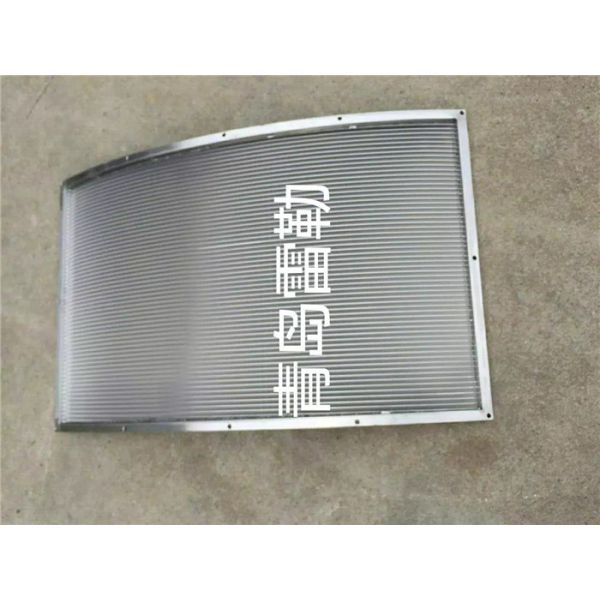

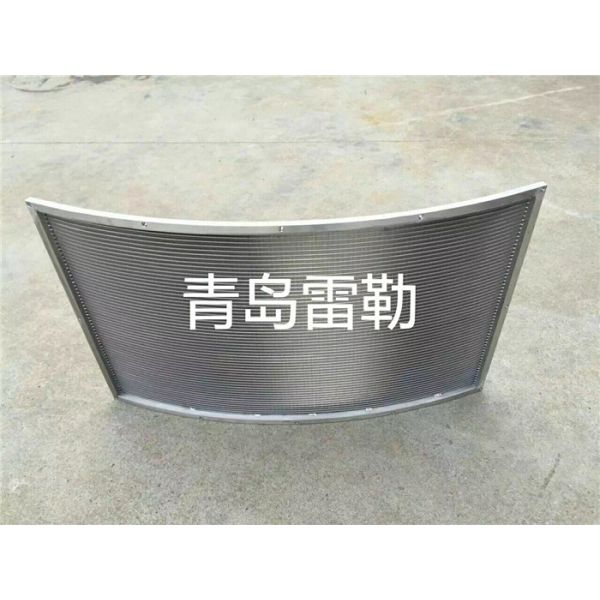

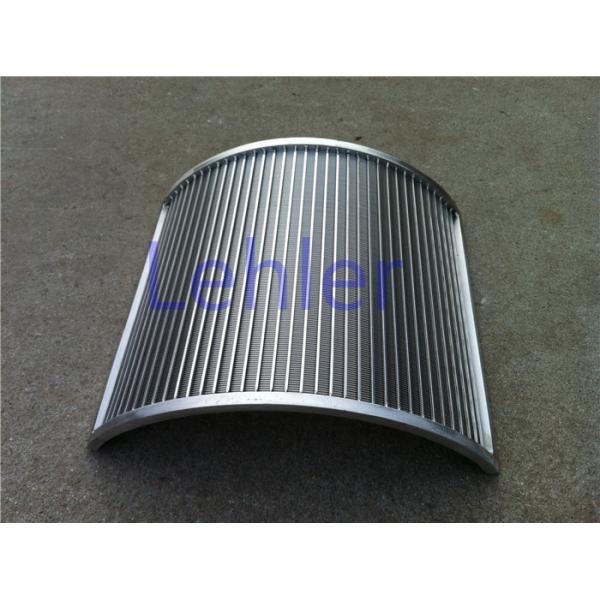

3.Details pictures of Sieve bend Screen:

Industrial Wedge Wire Sieve Filters , Stainless Steel Sieve Mesh FramedIndustrial Wedge Wire Sieve Filters , Stainless Steel Sieve Mesh FramedIndustrial Wedge Wire Sieve Filters , Stainless Steel Sieve Mesh Framed

4. Application of Sieve bend Screen?

  • Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

  • Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.​

5. Advantages of Sieve bend Screen?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
