SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001
SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001
SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001
SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001
Specifications
Brand Name :
Lehler
Model Number :
WWS-60
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2 pieces per 7 work days
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Name :
Wedge Wire Screens
MOC :
SS316L
Application :
Filtration
Profile wire :
1.0X2.0mm
Support rod :
2.0*3.0mm
Slot :
0.06MM
Description

what is wedge wire screen

Wedge Wire Screens are made from v-shaped wires(profile wire) and support rods.
The v-shaped wires and support rods is welded together by automatic resistance welding.
We call such v-shaped wires profile wire.
The distance between two profile wires is slot.
Minimum Slot opening is 20 microns.

SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001

Specification of wedge wire screens

Specification of Wedge Wire Screen
Profile wire Support Rod
0.75*1.5mm 2.0*3.0mm
1.0*2.0mm 2.0*4.0mm
2.0*3.0mm 3.0*5.0mm
2.0*4.0mm 3.0*5.0mm
3.0*5.0mm 3.0*5.0mm

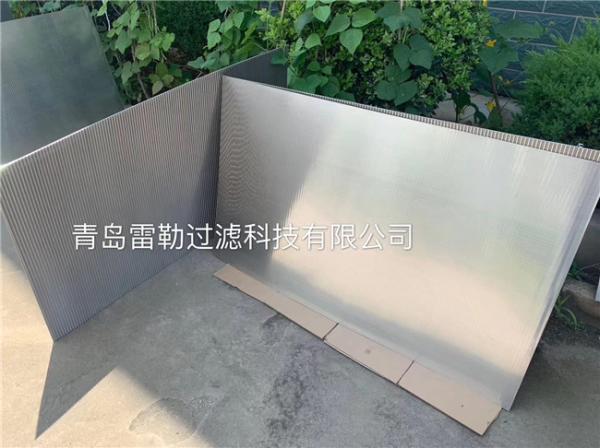

Details pictures of Wedge Wire Screens

SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001

SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001

Application of Wedge Wire Screens

Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.

Advandages of Wedge Wire Screens

Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.

Certification of Lehler

SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001

SS316L Sieve Plate Wedge Wire Screen Dewatering ISO 9001
