SS304 Filter Bag Replacement Wedge Wire Slotted Screen
SS304 Filter Bag Replacement Wedge Wire Slotted Screen
SS304 Filter Bag Replacement Wedge Wire Slotted Screen
SS304 Filter Bag Replacement Wedge Wire Slotted Screen
Specifications
Brand Name :
Lehler
Model Number :
WWS-180
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 piece 7 work days
Delivery Time :
7 work days
Packaging Details :

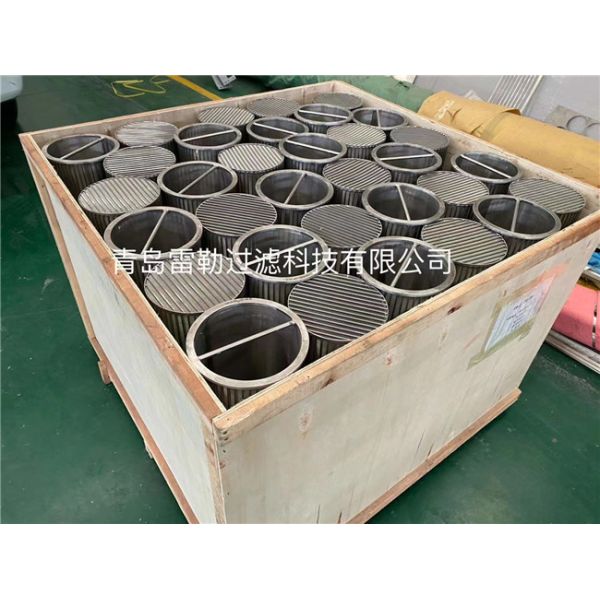

Plywood Case for Exporting Package
Product :
Filter bag replacement
Stainless Steel :
SS304
Slot Opening :
0.18mm
Flow direction :
Flow from inside to outside
Diamension :
180x1200mm
Application :
Wastewater treatment
Description

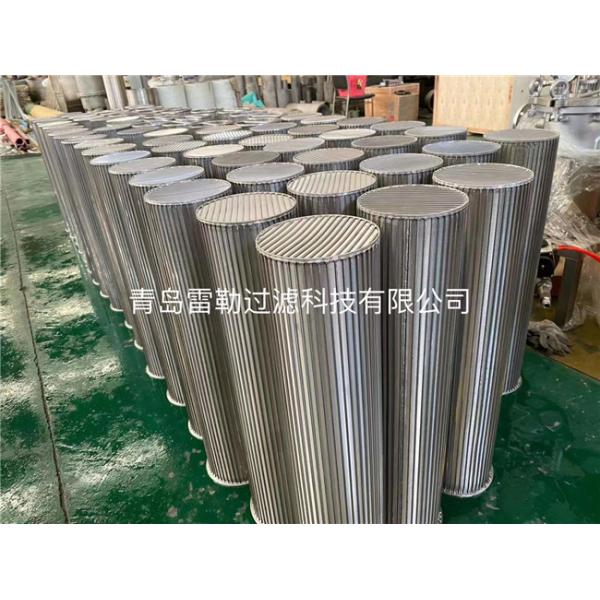

Filter Bag Replacement Wedge Wire Slotted Screen Basket For Basket Filter

Wedge wire aids in filtration and allows for the optimal flow of fluids through filtration devices.

Wedge wire is produced through the method of eletric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.

Main Specification:

  • Perfect roundness
  • Smooth wire surface
  • Minimum slot: 0.02mm (20um)
  • Minimum diameter: 16mm
  • Maximum length: 6000 mm
  • Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm
  • Support rod size: 2.0x3.0mm, 3.0x5.0mm, 5.0x8.0mm
Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

SS304 Filter Bag Replacement Wedge Wire Slotted Screen

SS304 Filter Bag Replacement Wedge Wire Slotted Screen

Application:

Petrochemical, wastewater treatment, pulp & paper, fine chemical, food and beverage, paints and inks, Pharmaceutical, mining...


Advantages of wedge wire screen?​

  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
