Wedge Wire Basket Wire Screen Dia 98mm From Inside To Outside For Pipeline Strainer
Wedge Wire Basket Wire Screen Dia 98mm From Inside To Outside For Pipeline Strainer
Wedge Wire Basket Wire Screen Dia 98mm From Inside To Outside For Pipeline Strainer
Wedge Wire Basket Wire Screen Dia 98mm From Inside To Outside For Pipeline Strainer
Specifications
Brand Name :
Lehler
Model Number :
WVS-500
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 pieces 1 work day
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Material :
SS316L
Name :
wedge wire basket
Filtration rate :
100 micron
Application :
pipeline strainer
Structure :
From inside to outside
Dimension :
108x200mm
Description

DIA 98MM V Wire Basket filter Screen applied to Pipeline Strainer​

1. V-Wire Screen is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The working surface is 100% smooth which eliminates blinding and pegging.

V-Wire Screen is produced through the method of electric resistance welding,

wires with special profiles are welded to supporting wires at 90 degrees.

The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

Wedge wire screens are either flow-out-to-in OR flow-in-to-out.

2.Specification of V-Wire Screen?

Profile wire Support rod
0.76x1.5mm 2.0x3.0mm
1.5x2.5mm 2.0x3.0mm
2.0x3.0mm 3.0x5.0mm
2.0x4.0mm 3.0x5.0mm
2.5x3.0mm 3.0x5.0mm
3.0x5.0mm 3.0x5.0mm
3.0x6.0mm 5.0x8.0mm

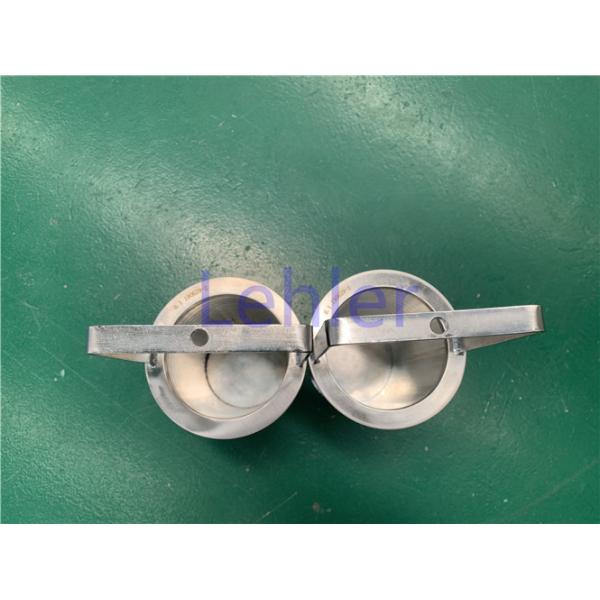

3.Details pictures of V-Wire Screen:

Wedge Wire Basket Wire Screen Dia 98mm From Inside To Outside For Pipeline Strainer

4. Application of V Wire Screen?

V Wire Screen is widely serviced for many industries for filtration and separation stage.

  • environmental protection

  • food & light industries

  • pharmaceutical

  • water treatment

  • pulp & paper

  • paint & inks

  • petroleum

  • chemical

5. Advantages of V Wire Screen?​

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
