Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
Specifications
Brand Name :
Lehler
Model Number :
WVS-500
Certification :
ISO9001:2015
Place of Origin :
Qingdao, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 pieces 1 work day
Delivery Time :
7 work days
Packaging Details :
Plywood Case for Exporting Package
Name :
V Wire Screen
Application :
self cleaning filter element
MOC :
SUS316L
Slot :
20 micron
Structure :
From inside to outside
Diameter :
410mm
Description

Diameter 410 mm V Wire Screen applied for self cleaning filter​ element

1. V Wire Screen is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The working surface is 100% smooth which eliminates blinding and pegging.

V Wire Screen is produced through the method of electric resistance welding,

wires with special profiles are welded to supporting wires at 90 degrees.

The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

Wedge wire screens are either flow-out-to-in OR flow-in-to-out.

2.Specification of V Wire Screen?

Profile wire Support rod
0.76x1.5mm 2.0x3.0mm
1.5x2.5mm 2.0x3.0mm
2.0x3.0mm 3.0x5.0mm
2.0x4.0mm 3.0x5.0mm
2.5x3.0mm 3.0x5.0mm
3.0x5.0mm 3.0x5.0mm
3.0x6.0mm 5.0x8.0mm

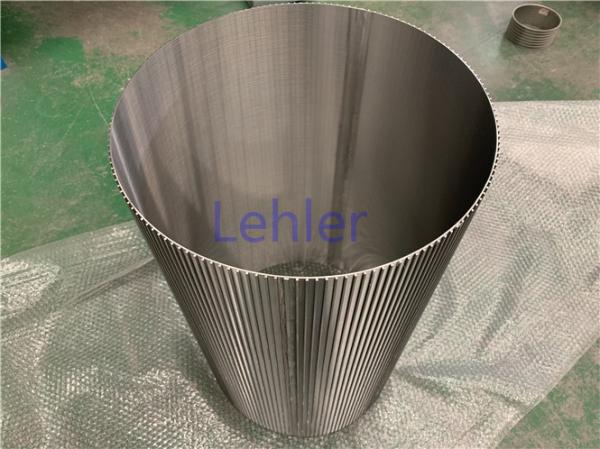

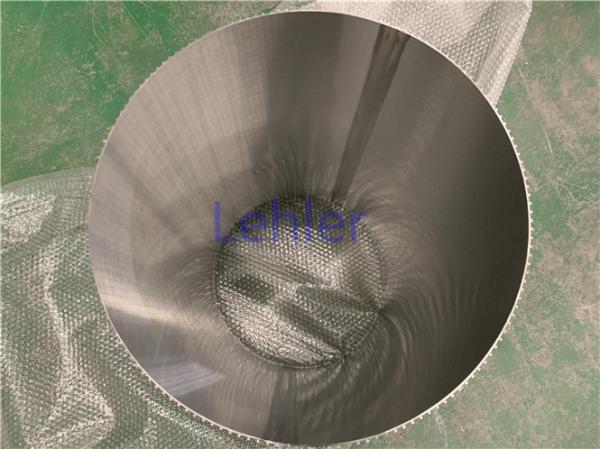

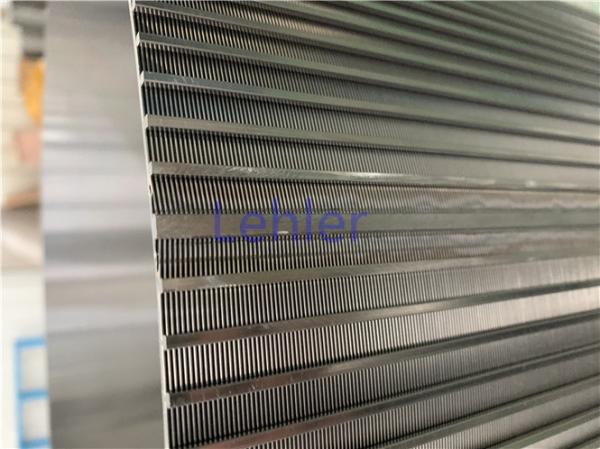

3.Details pictures of V Wire Screen:

Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element

Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter ElementDiameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element

4. Application of V Wire Screen?

V Wire Screen is widely serviced for many industries for filtration and separation stage.

  • environmental protection

  • food & light industries

  • pharmaceutical

  • water treatment

  • pulp & paper

  • paint & inks

  • petroleum

  • chemical

5. Advantages of V Wire Screen?​

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
