Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Specifications
Brand Name :
Lehler
Special Material :
Stainless Steel
Structure :
Out Flow
Inner Dia :
80 Mm
Flow Rate :
Customized
Features :
High Strength/Corrosion Resistance
Operating Temperature :
0-150℃
Flange Dia :
185 Mm
Product :
Vertical Strainer
Description
Industrial Cartridge Filter Housing Vertical Internal Scraping Self-cleaning resin trap filter
Product Description
Lehler internal scraping self-cleaning filter (LFN series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for automated or manual operation.
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia

Working principle
Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continuously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.
Technical Features &Advantages
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
No disposable consumables:Save filter media cost and environment cost
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Stainless steel structure:Variously materials, corrosion and rust prevention
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia

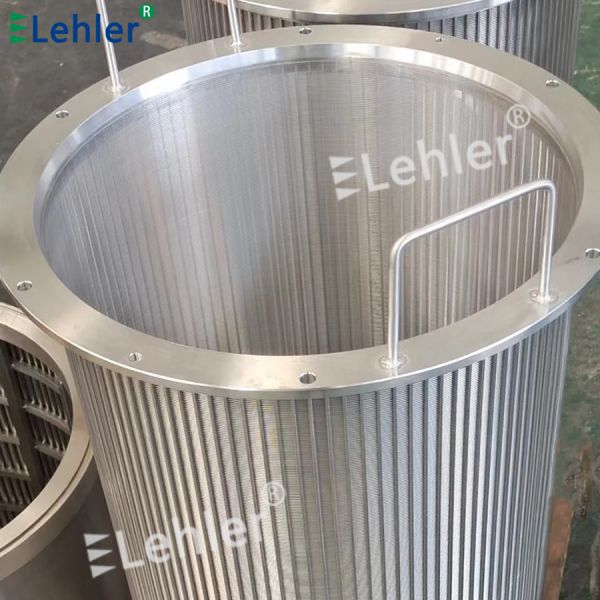

High-precision slot opening: Min. Slot 20 microns
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
High automation degree:Which can work on-line continuously,no manual cleaning frequently

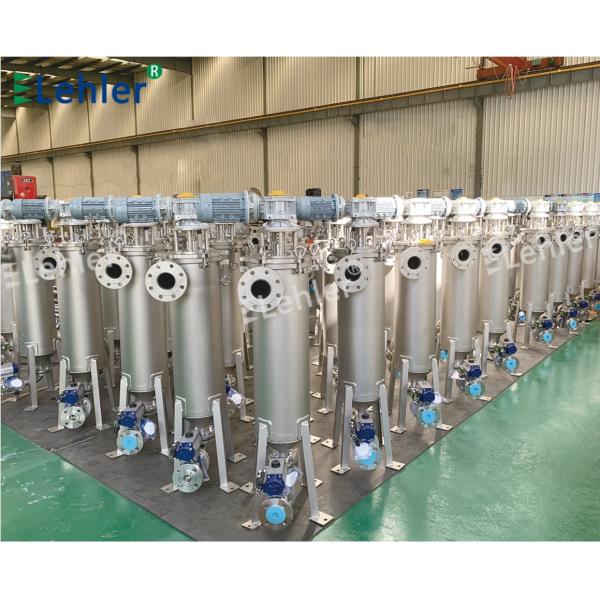

Productive Process
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Specification
Product Model
Equipment Diameter
Equipment Height
Thickness
Filter Area
Slot
LFN-D159
200mm
500mm
3mm
0.1
Min. 0.02mm(20um)
LFN-D219
250mm
1000mm
3mm
0.2
LFN-D273
300mm
1450mm
4mm
0.5
LFN-D325
350mm
1600mm
4mm
0.6
LFN-D400
450mm
1700mm
6mm
0.7
LFN-D450
500mm
1750mm
6mm
0.9
LFN-D550
600mm
1850mm
6mm
2.0
LFN-D800
850mm
2000mm
6mm
2.5

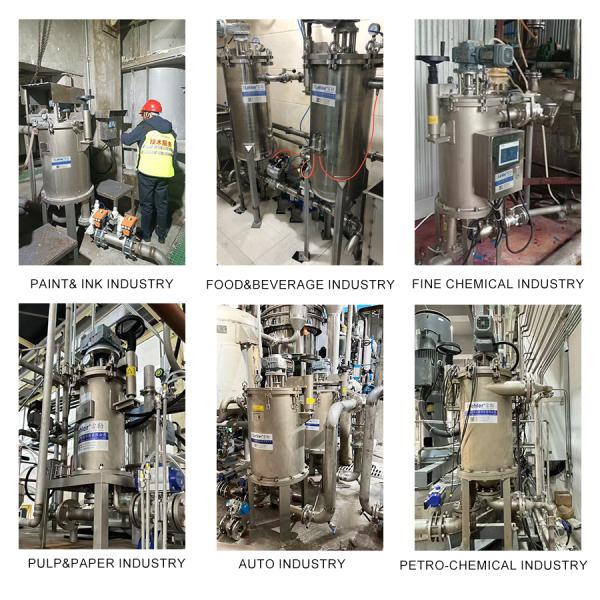

Application
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Quality Control & Delivery
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Plywood Case for Exporting Package
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Exhibition
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Certifications
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Company Profile
Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia
Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
