99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire
99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire
99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire
99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire
Specifications
Brand Name :
STD
Model Number :
STD-WWM-007
Certification :
FDA ,CE，ISO9001
Place of Origin :
Hebei,China
MOQ :
1
Price :
USD50-500 / piece
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
1000 pieces per day
Delivery Time :
5-8word days
Packaging Details :
plastic in wooden package or standard export package
Name :
Copper Woven Wire Mesh
Material :
Brass Wire
Size :
Customizable
Specification :
2-400 mush
Application :
Shielding,filtering
Length :
Customized
Width :
Customers' Request
Thickness :
Customers' Request
Type :
Woven Wire Mesh
Colour :
red
Feature :
knitting pure copper mesh
Description

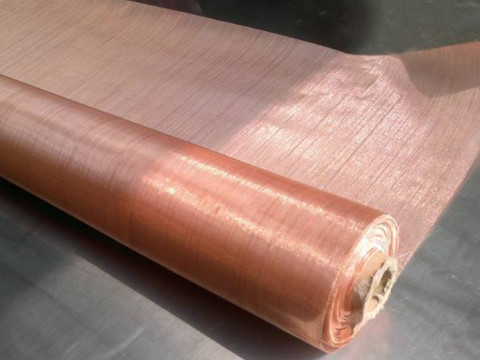

99.99% Flexible and fine red copper woven wire mesh

Copper Woven Wire Mesh Introduction:

Copper mesh series products are available in copper wire mesh, bronze wire mesh, and brass wire mesh. They look similar in appearance and color. Due to the different compositions of metal materials, each product has different characteristics and use effects. Copper mesh products are widely used in building decoration, household, electrical, technology, and other industries.

99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire

Copper Woven Wire Mesh Material:

Copper wire mesh is woven by loom machine, it’s made of pure copper wire and it has excellent ductility, thermal conductivity, electrical conductivity, diamagnetic and electromagnetic shielding effects. Due to its unique physical characteristics, copper metal mesh is widely used for EMI RFI shielding, Faraday cages, and other electrical applications

Copper mesh and copper wire cloth specification
Mesh/inch Wire diameter Opening (mm)
SWG mm Inch
2 15 1.80 0.071 10.90
2 16 1.60 0.063 11.10
3 16 1.60 0.063 6.866
4 16 1.60 0.063 4.75
4 18 1.20 0.047 5.15
4 20 0.91 0.036 5.44
4 22 0.711 0.028 5.64
5 20 0.91 0.036 4.17
6 21 0.80 0.031 3.433
6 22 0.711 0.028 3.522
8 22 0.711 0.028 2.46
8 23 0.610 0.025 2.565
8 24 0.511 0.022 2.616
8 26 0.457 0.018 2.7
10 23 0.610 0.025 1.91
10 24 0.511 0.022 1.98
10 25 0.508 0.020 2.032
10 27 0.417 0.016 2.1
12 24 0.511 0.022 1.52
12 26 0.457 0.018 1.66
14 25 0.508 0.020 1.30
14 26 0.457 0.018 1.357
14 27 0.417 0.016 1.397
16 29 0.345 0.013 1.243
16 30 0.315 0.012 1.27
18 26 0.457 0.018 0.98
18 30 0.315 0.012 1.096
18 31 0.295 0.010 1.16
20 27 0.417 0.016 0.86
20 30 0.315 0.012 0.955
20 31 0.295 0.010 1.02
20 32 0.274 0.009 0.88
22 30 0.315 0.012 0.840
22 32 0.274 0.009 0.88
24 28 0.35 0.014 0.71
24 30 0.315 0.012 0.743
24 33 0.254 0.008 0.8
26 31 0.295 0.010 0.682
28 31 0.295 0.010 0.612
30 29 0.345 0.013 0.52
30 32 0.274 0.009 0.573
30 33 0.254 0.008 0.64
30 34 0.234 0.007 0.613
32 33 0.254 0.008 0.540
34 34 0.234 0.007 0.513
36 34 0.234 0.007 0.472
38 35 0.213 0.005 0.455
40 31 0.295 0.010 0.38
40 36 0.193 0.008 0.442
40 38 0.152 0.0060 0.485
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 32 0.229 0.009 0.28
50 34 0.234 0.007 0.32
50 37 0.173 0.0068 0.335
50 39 0.132 0.0052 0.378
60 × 50 36 0.193 0.0076 -
60 × 50 37 0.173 0.0068 -
60 33 0.191 0.0075 0.23
60 37 0.173 0.0068 0.250
60 40 0.122 0.0048 0.301
60 42 0.10 0.0040 0.32
70 39 0.132 0.0052 0.231
70 41 0.112 0.0044 0.251
80 35 0.213 0.005 0.18
80 36 0.193 0.008 0.22
80 40 0.122 0.0048 0.196
80 42 0.102 0.004 0.216
90 41 0.112 0.0044 0.170
90 43 0.091 0.0036 0.191
100 36 0.193 0.008 0.15
100 42 0.102 0.004 0.152
100 43 0.091 0.0036 0.164
100 46 0.061 0.0024 0.198
120 × 108 43 0.091 0.0036 -
120 44 0.081 0.0032 0.131
120 45 0.071 0.0028 0.14
140 45 0.071 0.0028 0.11
140 46 0.061 0.0024 0.120
145 46 0.061 0.0024 0.1168
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 46 0.061 0.0024 0.081
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076

99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire

Copper Woven Wire Mesh Features:

1.Soft, easily soldered

2.Ductile and malleable

3.Excellent thermal and electrical conductivity

4.99%+ pure copper

copper Woven Wire Mesh Features :

1.Architectural and decorative screens

2.Window screen

3.Insect screen for doors and windows, gutter guards.

4.Root and pest control

99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire

Packing:

Bobbin package, PP bags and wooden pallets, wooden case.

99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire

99.99% Knitting Woven Copper Mesh Flexible And Fine Red Wire
