200 Mesh 99.99% Pure Nickel Wire Mesh For Battery
200 Mesh 99.99% Pure Nickel Wire Mesh For Battery
200 Mesh 99.99% Pure Nickel Wire Mesh For Battery
200 Mesh 99.99% Pure Nickel Wire Mesh For Battery
Specifications
Brand Name :
STD Filter
Model Number :
STD NWM-007
Place of Origin :
Hebei,China
MOQ :
50piece
Price :
USD1-10 / piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 piece a week
Delivery Time :
5-8 work days
Packaging Details :
plastic in wooden package or standard export package
Material :
pure nickel wire mesh
Type :
Wire Cloth
Weave style :
plain/twill/dutch weave
Technique :
Perforated mesh
Wire diameter :
0.04 mm to 0.055 mm
Length :
30m/roll or customized
Hole shape :
Square Hole
Product name :
Nickel Wire Mesh
Usage :
Filtering,Sieveing
Color :
Silver
Mesh count :
2-650mesh
Weave type :
Knurling
Application :
filters
Description

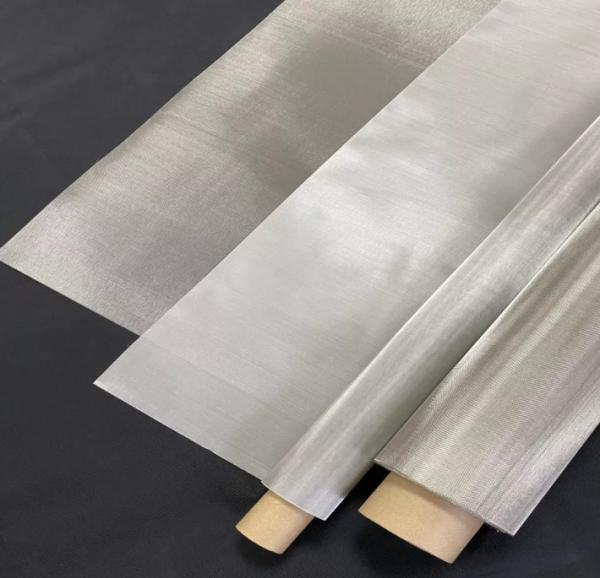

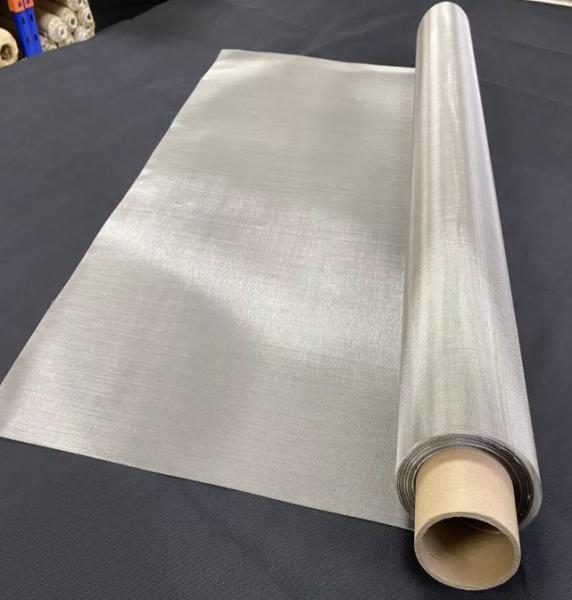

200 Mesh 99.99% Nickel Wire Mesh For Battery

Nickel wire mesh Introduction:

The nickel is a sliver color metal. According to the purity, the nickel has different material types, such as the N2, N4, N6 and N8. Pure Nickel wire mesh is manufactured from nickel wire with high purity not less than 99%. Nickel wire mesh features excellent corrosion, acid and alkali resistance, high electrical conductivity, thermal conductivity and ductility, heat resistance, wear resistance. Nickel wire mesh or low-alloy nickel wire mesh is useful in chemical processing because of its resistance to various chemicals including acid, alkali. It is also useful in the electronics due to its high electrical conductivity. The Nickel wire can be also used in the heat exchange due to its thermal conductivity and ductility.

200 Mesh 99.99% Pure Nickel Wire Mesh For Battery

Nickel wire mesh description:

Nickel wire mesh for electrode is produced by weaving nickel wires into diverse styles. It is suitable for use in alkaline fuel cells. Nickel has good mechanical characteristics and low stress while offering excellent corrosion resistance and strength properties. It offers much better performance than stainless steel.

Mesh count Wire diameter(mm) Aperture(mm) Max width(m)
10 0.60 1.94 1.60
20 0.40 0.87 1.60
30 0.30 0.55 1.60
40 0.23 0.40 1.60
50 0.20 0.31 1.60
60 0.15 0.27 1.60
70 0.12 0.24 1.60
80 0.13 0.19 1.60
90 0.12 0.16 1.60
100 0.10 0.15 1.60
120 0.09 0.12 1.60
150 0.063 0.11 1.60
180 0.053 0.01 1.60
200 0.053 0.07 1.60
250 0.040 0.063 1.60
300 0.040 0.044 1.60
325 0.035 0.043 1.60
350 0.030 0.042 1.60
400 0.030 0.033 1.60

200 Mesh 99.99% Pure Nickel Wire Mesh For Battery

Nickel wire mesh Features:

1.Good surface
2.Good electricity conductivity
3.Strong corrosion resistance
4.Prolonged service time
5.Ultra-tight tolerances
6.The smoothness of aperture walls
7.Aperture stability

Nickel wire mesh Applications:

1. For vacuum coating;

2. For making valves grid, inner components of vacuum valves;

3. For making lead, supporting wire;

4. For battery production;

5. For chemical, mine, hydrogen making, acid making and basic industry.

Packing:

inner kraft, outside plastic cloth, put into wooden pallet or case

200 Mesh 99.99% Pure Nickel Wire Mesh For Battery

200 Mesh 99.99% Pure Nickel Wire Mesh For Battery
