Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin
Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin
Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin
Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin
Specifications
Brand Name :
STD
Model Number :
STD-WSF-022
Certification :
API, ISO, CE, QMS, IAF, IADC
Place of Origin :
HeBei，China
MOQ :
1
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pieces per day
Delivery Time :
5-8word days
Packaging Details :
Carton/Wooden tray/Wooden box
Name :
Stainless steel sand filter water nozzle
wedge wire :
1.5*2mm
Filter media :
liquid filtration
Type :
wedeg wire screen nozzle
Diameter :
45mm,53mm57mm,70mm
Slot size :
0.2-0.5 mm
Color :
Silver
Width :
Customized
Thickness :
Customized
Material :
Stainless Steel
Length :
Customized
Hole shape :
square
Description

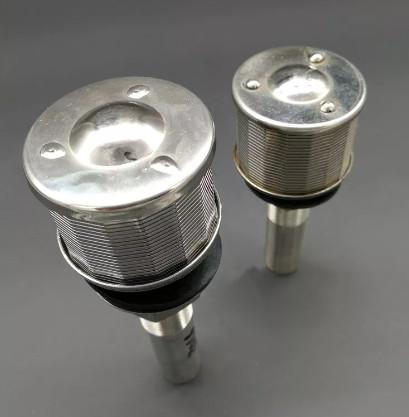

Stainless Steel Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin

Description:

Sand filter wedge wire nozzle for water treatment is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Type

Slot
(mm)

 Dimension

Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings



STD-0.5



0.25



45



45



90/request

 M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,
Rubber gasket,
Nut, request



0.5
STD-1.0 0.25 53 45 90/request 1.0
STD-1.5 0.25 57 45 90/request 1.5
STD-2.0 0.25 57 55 100/request 2.0
STD-2.5 0.25 70 55 100/request 2.5
STD-3.0 0.25 70 70 120/request 3.0
Note

* All the above size are the normal size. Customized size is possible.
* STD could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin

Feature :

Low-carbon, galvanized or stainless steel construction.

More open area and high precise openings.

Maximum design flexibility.

More stronger and durable.

High mechanical strength.

Resist pressure, high temperature, aging, corrosion.

Easier installation and long-term operating.

Low operation cost and maintenance cost.

Easy to clean for reuse.

Application:

Wedge wire filter element is widely used for deep well pump, dive water pump. Also used for waste water treatment, water softening treatment, oil industry, food process, mineral process, and chemical and alkali filtration.

Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin
The Package:

Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin
