V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging
V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging
V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging
V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging
Specifications
Brand Name :
STD
Model Number :
STD-WSF-022
Certification :
API, ISO, CE, QMS, IAF, IADC
Place of Origin :
HeBei，China
MOQ :
1
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pieces per day
Delivery Time :
5-8word days
Packaging Details :
Carton/Wooden tray/Wooden box
Name :
Stainless steel sand filter water nozzle
wedge wire :
1.5*2mm
Total legnth :
90-120mm
Filter media :
liquid filtration
Type :
wedeg wire screen nozzle
Flow rate :
0.5T/h-3T/h
Diameter :
45mm,53mm57mm,70mm
Slot size :
0.2-0.5 mm
Usage :
Filter water treatment
Color :
Silver
Width :
Customized
Thickness :
Customized
Description

V Shaped Stainless Steel Wedge Wire Industrial Water Screen Filter Spary Nozzles

Description:

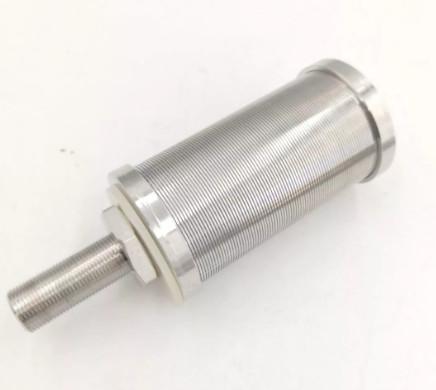

Stainless steel wedge wire industrial water screen filter spary nozzles is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate. Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
Type

Slot
(mm)

 Dimension

Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings



STD-0.5



0.25



45



45



90/request

 M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,
Rubber gasket,
Nut, request



0.5
STD-1.0 0.25 53 45 90/request 1.0
STD-1.5 0.25 57 45 90/request 1.5
STD-2.0 0.25 57 55 100/request 2.0
STD-2.5 0.25 70 55 100/request 2.5
STD-3.0 0.25 70 70 120/request 3.0
Note

* All the above size are the normal size. Customized size is possible.
* STD could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging

Feature:

1. Type 316L stainless steel construction.

2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.

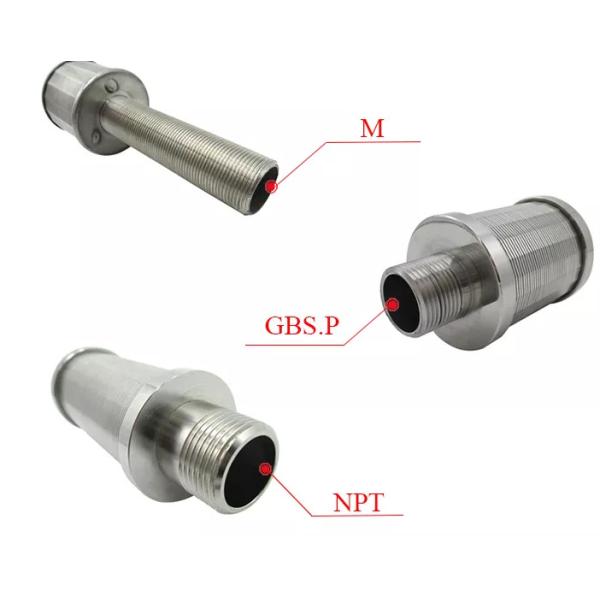

6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly

Application:

This filter nozzle can be used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.

V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging

The Package:

V Shaped Stainless Steel Wedge Wire Screen Nozzle Resist Aging
