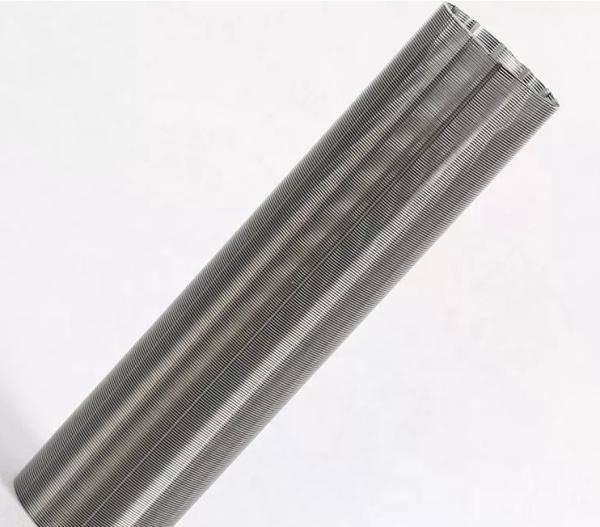

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
Specifications
Brand Name :
STD Filter
Model Number :
STD WWFS 001
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$20-200 /pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
bend,panel,round,customized
Type :
Filter Element
Length :
up to 2 meters or as required
width :
up to 1 meter or customized
diameter :
1 meter or customized
Material :
304,316 Stainless Steel
Usage :
Filtration
Application :
mining and energy
Craftsmanship :
Weld
Feature :
high resistance corrosion and wear resistance
Color :
Silver
Hole Shape :
Square,rectangular
Description

Stainless Steel Screen Pipe Johnson Tube Wedge Wire Screen Filter

Wedge screen filter Introduction:

The wedgescreen filter is composed of rib strips and V shapedhrough manufacturing on specialized welding machine. The rib strips and V shaped will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by client in any way.

SIZE (inch) O.D (mm) SLOT (inch) LENGTH (m) Collapse Strength (psi) Tensile Weight (ton) Wire size (mm) RODS (mm)
4 117 0.040 3 395 6 2.2*3.0 3.8mm/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8mm/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8mm/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8mm/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8mm/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8mm/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8mm/50

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
Wedge screen filter Features:

  • Non-clogging surface.
  • Large open area.
  • Low pressure drop.
  • Hydraulic efficiency.
  • High flow rates.
  • Mechanical strength.
  • Abrasion-resistant.
  • Easy cleaning.

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
Wedge screen filter Applications:

  • Separating , filtering
  • Dewatering
  • Classifying
  • Straining , drying
  • Water intak

Packages

wooden case,carton box or as customer's request

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
The Delivery

Stainless Steel 316 Wedge Wire Screen Filter Pipe Johnson Tube Mining Filtration
