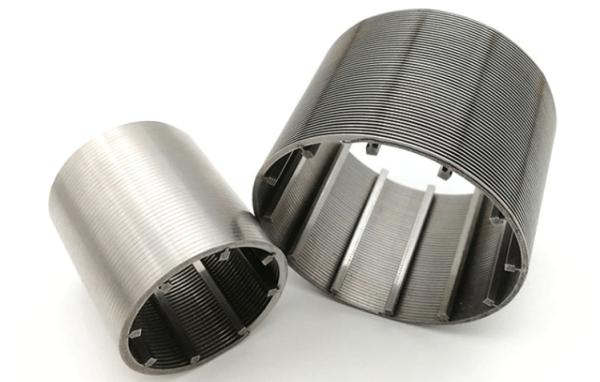

Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel
Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel
Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel
Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel
Specifications
Brand Name :
STD Filter
Model Number :
STD WWS 106
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
square or round or material curved
Length :
2 meters or as required
Width :
1 meter or customized
Diameter :
1 meter or customized
Application :
Water well,oil well,air separation
Usage :
liquid and solid filtration
Type :
Filter
Technique :
Welding
Feature :
Corrosion Resistance,high rigidity
Material :
Stainless Steel 304 or 316
Color :
Silver
Hole shape :
square
Description

304 stainless steel Johnson wedge wire screen

Product introduction

Wedge wire screen also named Wedge wire filter are produced as flat, arch bent, gutter type, cone and cylindrical segments. They are characterized by precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.

It is made of 'V' shaped stainless steel wire and stainless steel strip. Smooth surface is for filtering, the gap is strip, belonging to the form of surface filtration. As a multiform of automatic filters ( such as automatic back washing, scraper self-cleaning, scraping disc self-cleaning, sucking self-cleaning filter) are widely used in various industries of fluid filtration.

Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel

Product description

Stainless steel welding type: mine screen, sieve, sieve basket, vibration screen, slotted sieve, sieve net, cylindrical filter, anisotropic mesh, high strength polyester mesh, griddle net etc. Wedge and wedge wire mesh, stainless steel welded type minemesh material: low carbon steel wire, steel wire, stainless steel wire.Stainless steel welding type: mine screen, sieve, sieve basket, vibration screen, slotted sieve, sieve net, cylindrical filter, anisotropic mesh, high strength polyester mesh, griddle net etc. Wedge and wedge wire mesh, stainless steel welded type minemesh material: low carbon steel wire, steel wire, stainless steel wire.

SIZE
(INCH)		 O.D
(MM)		 SLOT
(INCH)		 LENGTH
(M)		 COLLAPSE
STRENGTH
(PSI)		 TENSILE
WEIGHT
(TON)		 WRAP(thick*deep)
(MM)		 RODS
(MM)
4 117 0.040 3 395 6 2.2*3.0 3.8MM/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8MM/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8MM/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8MM/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8MM/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8MM/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8MM/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8MM/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8MM/50

Product feature

Easy leakage, wear resistance, corrosion resistance. The mesh cross section is a trapezoid, narrow width of the gap, have a wire made of cold rolled stainless steel, this wire is support rods. The screen is uniform, the welding is stable, high hole rate, long service life, high strength, stiffness and bearing capacity of rigid, screening filter device can be made into various shapes.

Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel

Product application

Ming, coal, oil, fertilizer, chemical, grain, salt, environmental protection and so on. Screening of liquid and powder.

The Package:Wooden box

Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel

The delivery

​Johnson Curved Wedge Wire Screen Filter 304 Stainless Steel

Please Meet us on The http://www.wedgefilter.com
