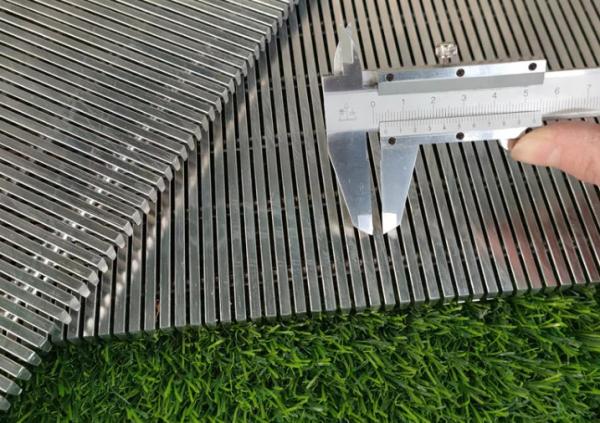

304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels
304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels
304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels
304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels
Specifications
Brand Name :
STD Filter
Model Number :
STD WWFS 001
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
Type :
Filter Element
Color :
SS silver
Length :
up to 2 meters or as required
width :
up to 1 meter or customized
diameter :
1 meter or customized
Material :
Stainless Steel SS304,316
Usage :
water/air filter
Application :
mining and energy
Feature :
high resistance corrosion and wear resistance
Minimum slot size: :
0.1-6.0 mm
Technique :
Welding
Description

  • 304 Stainless Steel Wedge Wire Screen Slot Size 150 300 750 Microns Filter Panels

Introduction:

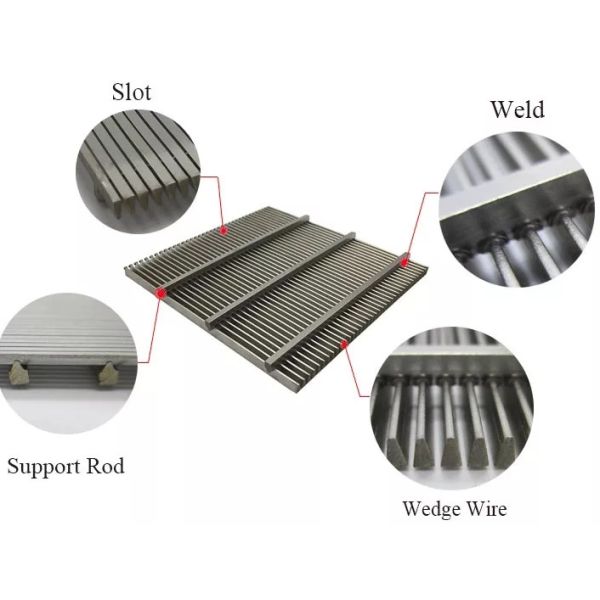

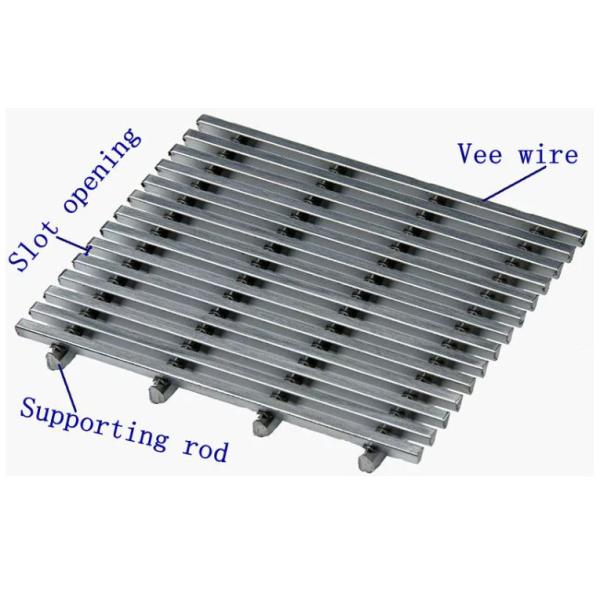

The screen is easy to leak, resistant to wear and corrosion. The cross section is trapezoidal, with narrow gap at the top and wide one at the bottom. The sieves are even, the welding quality is stable, the open rate is high, thus it has long service life, high strength, rigidity and bearing capacity, it can be made of rigid screening filter of various shapes. It is widely used for screening liquid, powder and other materials in mining, coal, petroleum, fertilizer, food, salt, environmental protection, chemical, metallurgy, mining, pharmaceutical purification, filter tanks, water treatment equipment, drilling fluid purification and other industries.

No. (mm)TYPE OD (mm) ID(mm) SuppoTt wiTe NumbeT Filter diTection
1 STD25.4 25.4 18.6 12 FOTI
2 STD 33 33 24 8 FOTI
3 STD 37 37 28 8 FOTI
4 STD 40 40 31 8/10 FOTI/FITO
5 STD 45 45 36 10/12 FOTI/FITO
6 STD 48 48 38 12 FOTI/FITO
7 STD 60 60 51 12 FOTI/FITO
8 STD 70 70 61 12/18 FOTI/FITO
9 STD 85 85 76 18 FOTI/FITO
10 STD 110 110 101 24 FOTI/FITO
11 STD120 120 111 24 FOTI/FITO

304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels

Features:

1) long service life

2) high opening rating

3) Uniform screen seam, stable welding quality

4) good strength, stiffness and load capacity

5) Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

The Applications:

1.Wedge wire screen is widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc.

2.Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification,

3.drilling liquid purification and other industries use.

304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels

Packages

304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels

The Delivery

304 Stainless Steel Wedge Screen Filter Slot Size 150 300 750 Microns Panels
