180 200 250 100 % Pure Copper Woven Wire Mesh Ultra Thin
180 200 250 100 % Pure Copper Woven Wire Mesh Ultra Thin
180 200 250 100 % Pure Copper Woven Wire Mesh Ultra Thin
180 200 250 100 % Pure Copper Woven Wire Mesh Ultra Thin
Specifications
Brand Name :
STD
Model Number :
STD-WWM-007
Certification :
FDA ,CE，ISO9001
Place of Origin :
Hebei,China
MOQ :
1
Price :
USD50-500 / piece
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
1000 pieces per day
Delivery Time :
5-8word days
Packaging Details :
plastic in wooden package or standard export package
Name :
Copper Woven Wire Mesh
Material :
Brass Wire
Size :
Customizable
Specification :
2-400 mush
Application :
Shielding,filtering
Length :
Customized
Width :
Customers' Request
Thickness :
Customers' Request
Type :
Woven Wire Mesh
Colour :
red
Feature :
knitting pure copper mesh
Description

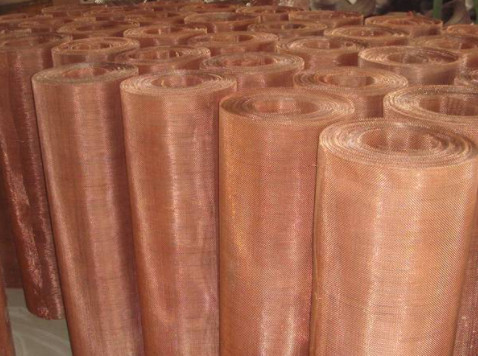

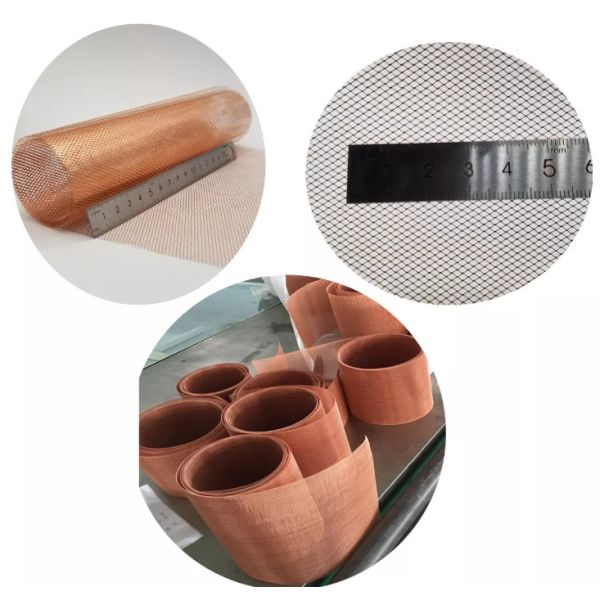

180 200 250 100 % Pure Ultra Thin Copper Woven Wire Mesh

Copper Woven Wire Mesh Introduction:

Copper mesh series products are available in copper wire mesh, bronze wire mesh, and brass wire mesh. They look similar in appearance and color. Due to the different compositions of metal materials, each product has different characteristics and use effects. Copper mesh products are widely used in building decoration, household, electrical, technology, and other industries.

Copper mesh and copper wire cloth specification
Mesh/inch Wire diameter Opening (mm)
SWG mm Inch
2 15 1.80 0.071 10.90
2 16 1.60 0.063 11.10
3 16 1.60 0.063 6.866
4 16 1.60 0.063 4.75
4 18 1.20 0.047 5.15
4 20 0.91 0.036 5.44
4 22 0.711 0.028 5.64
5 20 0.91 0.036 4.17
6 21 0.80 0.031 3.433
6 22 0.711 0.028 3.522
8 22 0.711 0.028 2.46
8 23 0.610 0.025 2.565
8 24 0.511 0.022 2.616
8 26 0.457 0.018 2.7
10 23 0.610 0.025 1.91
10 24 0.511 0.022 1.98
10 25 0.508 0.020 2.032
10 27 0.417 0.016 2.1
12 24 0.511 0.022 1.52
12 26 0.457 0.018 1.66
14 25 0.508 0.020 1.30
14 26 0.457 0.018 1.357
14 27 0.417 0.016 1.397
16 29 0.345 0.013 1.243
16 30 0.315 0.012 1.27
18 26 0.457 0.018 0.98
18 30 0.315 0.012 1.096
18 31 0.295 0.010 1.16
20 27 0.417 0.016 0.86
20 30 0.315 0.012 0.955
20 31 0.295 0.010 1.02
20 32 0.274 0.009 0.88
22 30 0.315 0.012 0.840
22 32 0.274 0.009 0.88
24 28 0.35 0.014 0.71
24 30 0.315 0.012 0.743
24 33 0.254 0.008 0.8
26 31 0.295 0.010 0.682
28 31 0.295 0.010 0.612
30 29 0.345 0.013 0.52
30 32 0.274 0.009 0.573
30 33 0.254 0.008 0.64
30 34 0.234 0.007 0.613
32 33 0.254 0.008 0.540
34 34 0.234 0.007 0.513
36 34 0.234 0.007 0.472
38 35 0.213 0.005 0.455
40 31 0.295 0.010 0.38
40 36 0.193 0.008 0.442
40 38 0.152 0.0060 0.485
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 32 0.229 0.009 0.28
50 34 0.234 0.007 0.32
50 37 0.173 0.0068 0.335
50 39 0.132 0.0052 0.378
60 × 50 36 0.193 0.0076 -
60 × 50 37 0.173 0.0068 -
60 33 0.191 0.0075 0.23
60 37 0.173 0.0068 0.250
60 40 0.122 0.0048 0.301
60 42 0.10 0.0040 0.32
70 39 0.132 0.0052 0.231
70 41 0.112 0.0044 0.251
80 35 0.213 0.005 0.18
80 36 0.193 0.008 0.22
80 40 0.122 0.0048 0.196
80 42 0.102 0.004 0.216
90 41 0.112 0.0044 0.170
90 43 0.091 0.0036 0.191
100 36 0.193 0.008 0.15
100 42 0.102 0.004 0.152
100 43 0.091 0.0036 0.164
100 46 0.061 0.0024 0.198
120 × 108 43 0.091 0.0036 -
120 44 0.081 0.0032 0.131
120 45 0.071 0.0028 0.14
140 45 0.071 0.0028 0.11
140 46 0.061 0.0024 0.120
145 46 0.061 0.0024 0.1168
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 46 0.061 0.0024 0.081
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076

180 200 250 100 % Pure Copper Woven Wire Mesh Ultra Thin

Copper Woven Wire Mesh Features:

· Aesthetic and attractive appeal.

· High strength and unique texture.

· Bright transparency and refined structure.

· Fashionable design and practical function.

· UV resistance and fire resistance.

· Shock resistance and impact resistance.

· Excellent sound insulation and safety performance.

· More optional choice and long service life.

copper Woven Wire Mesh Appcation :

(1)Energy storage
(2)Electric heaters
(3)Pest control fumigation
(4)Tactical military shelters & modular containers
(5)Robotics & power automation
(6)Gamma irradiate

(7)Health, body and mind enrichment
(8)Space program initiatives (NASA)

180 200 250 100 % Pure Copper Woven Wire Mesh Ultra Thin

Packing:

Bobbin package, PP bags and wooden pallets, wooden case.

180 200 250 100 % Pure Copper Woven Wire Mesh Ultra Thin
