Tube Custom 304 Stainless Steel Wire Mesh Water Filter Micron Cylinder
Tube Custom 304 Stainless Steel Wire Mesh Water Filter Micron Cylinder
Tube Custom 304 Stainless Steel Wire Mesh Water Filter Micron Cylinder
Tube Custom 304 Stainless Steel Wire Mesh Water Filter Micron Cylinder
Specifications
Brand Name :
STD Filter
Model Number :
STD WMF-002
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per day,customized time
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
Material :
stainless steel,316,SS 304,ss 316L powder porous metal
Filter rating :
over 80%

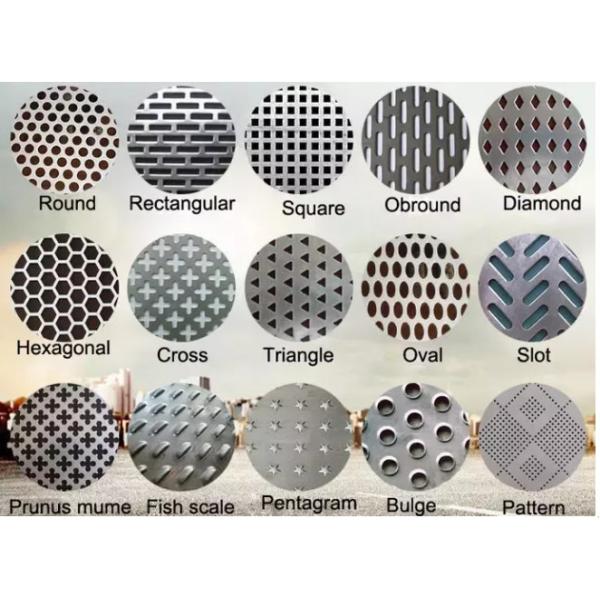

Hole shape :
Round,Customized,Hexagonal
Color :
Silver,self color
Width :
Customize Size
Technique :
rolling and welding
Usage :
Liquid Filter
Type :
Perforated Metal Mesh
Length :
Customize Length
Feature :
durable,corrosion Resistance
Application :
Filtration,Kitchen,Chemical Industry
Shape :
Customers' Request
Mesh count :
requirement
Size :
can be customized
Description

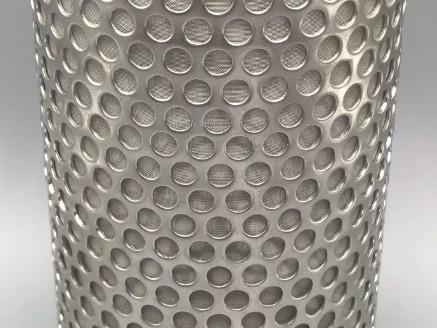

Water Filter Tube Custom 304 Stainless Steel Micron Cylinder Water Filter

Description

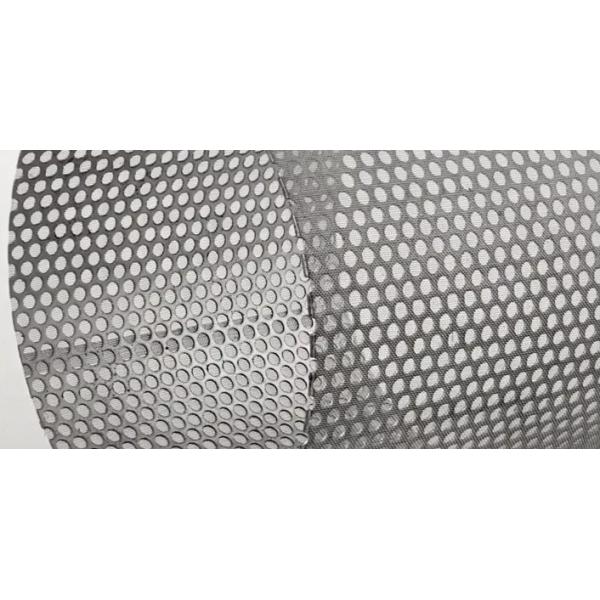

Made of 304 stainless steel, strictly controlled, the surface is flat, the gap is uniform, the filter accuracy error is small, and the welding is firm.

Hole
Diameter

Staggered Centers

 Sheet Thickness Open Area
0.045'' 1.14mm 0.06 0.032'' 0.81mm 37.00%
1/16'' 1.59mm 1/8'' 0.032'',0.040'' 0.81mm,1.02mm 23.00%
3/32'' 2.38mm 5/32'' 0.040'',0.063'' 1.02mm,1.60mm 33.00%
7/64'' 2.78mm 3/16'' 0.32'' 0.81mm 29.00%
1/8'' 2.78mm 3/16'' 0.320'',0.040'',0.050'',0.063'',0.125'' 0.81mm,1.02mm,1.27mm,1.60mm,3.17mm 40.00%
5/32'' 3.97mm 3/16'' 0.320'',0.063'',0.090'' 0.81mm,1.60mm,2.29mm 63.00%
3/16'' 4.76mm 1/4'' 0.320'',0.040'',0.050'',0.063'' 0.81mm,1.02mm,1.27mm,1.60mm 50.00%
3/16'' 4.76mm 3/8'' 0.040'', 1.02mm 23.00%
1/4'' 6.35mm 5/16'' 0.063'' 1.60mm 58.00%
1/4'' 6.35mm 3/8'' 0.063'',0.125'' 1.60mm,3.17mm 40.00%
1/2'' 12.7mm 11/16'' 0.063'' 1.60mm 48.00%

Tube Custom 304 Stainless Steel Wire Mesh Water Filter Micron Cylinder

Advantage:

1.Easily for installation and replacement ;
2.Made of high quality stainless steel, suitable for various filtration scenarios;
3.High strength through resistance to twisting, compressive, and tensile forces ;
4.Special edge design ,safe without burrs;
5.Process drawings or samples according to customer's requirements

Feature

Smooth surface, easy installation and disassembly,with high stability performance, good corrosion resistance, heat resistance, pressure resistance, acid and alkali resistance.

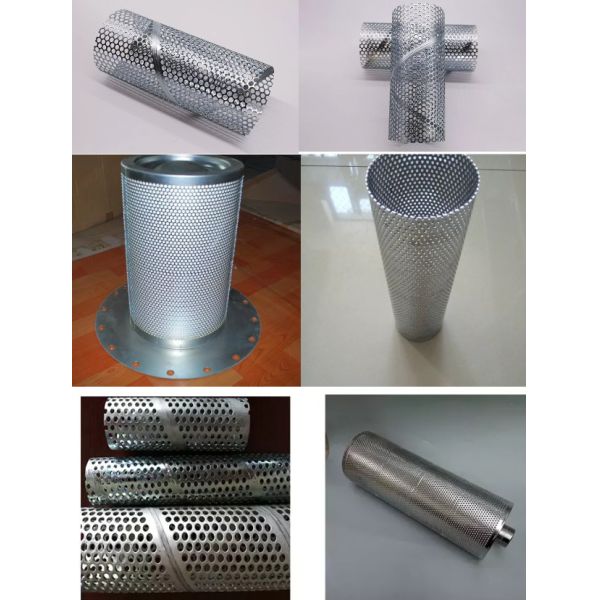

Tube Custom 304 Stainless Steel Wire Mesh Water Filter Micron CylinderTube Custom 304 Stainless Steel Wire Mesh Water Filter Micron Cylinder

Application

This stainless steel mesh cylinder is widely used in petroleum, chemical, construction, highway, railway, aerospace, medicine, machinery, electronics, textile, coal, aquaculture and other fields.

The Package and Delivery

Tube Custom 304 Stainless Steel Wire Mesh Water Filter Micron Cylinder
