304 316 Stainless Steel Metal Filter Disc 20-200 Micron Wire Mesh Round
304 316 Stainless Steel Metal Filter Disc 20-200 Micron Wire Mesh Round
304 316 Stainless Steel Metal Filter Disc 20-200 Micron Wire Mesh Round
304 316 Stainless Steel Metal Filter Disc 20-200 Micron Wire Mesh Round
Specifications
Brand Name :
STD
Model Number :
STD-F1
Certification :
FDA ,CE，PICC,SGS,ISO
Place of Origin :
China
MOQ :
10
Price :
USD1-10 / piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pieces per day
Delivery Time :
5-8word days
Packaging Details :
Plastic film and then in carton or costumized
Name :
Wire mesh metal filter disc
Material :
304 stainless steel，316L
Specification :
2mesh-500mesh
Feature :
Heat Resisting,Acid Resisting,Corrosion Resisting
Usage :
Purification and filtration
Size :
Customizable
Color :
Silver
Type :
Weave Wire Mesh
Hole Shape :
Square
Thickness :
0.01mm
Technique :
Woven
Packing :
Craft paper+double layers bubble film
Wire Diameter: :
Wire Diameter:
Application :
Filtration and separation
Length :
Customized
Filter Rating :
90%
Description

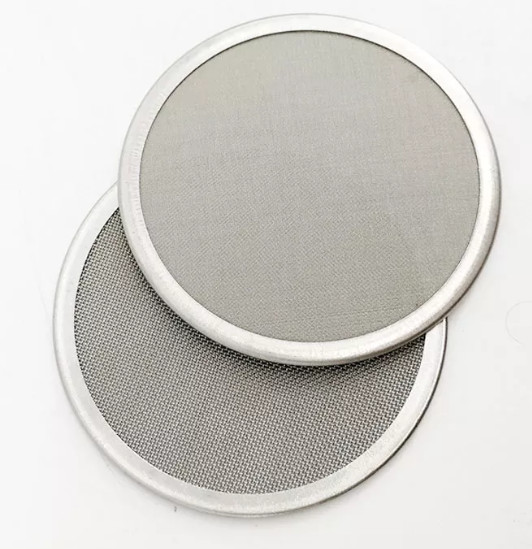

304 316 Stainless Steel 20-200 Micron Wire Mesh Round Filter Disc


The Description

Sintered powder filter disc is made of stainless steel powder. They can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization.


Stainless steel sintered metal filter disc is widely used for filtration of polymer film, fiber, corrosive liquid, gases, catalyst recovery, steam processing and gas-liquid sparging in industries including pharmaceutical, chemical, plastic, metallurgic, food and beverage, etc.

Plain dutch weave wire mesh specifications
Item Mesh Wire diameter(Warp x Weft) Hole size/Micron KGS/M2
32# 8 x 62 0.63mm x 0.45mm 300 5.42
40# 10 x 79 0.50mm x 0.355mm 250 3.16
48# 12 x 64 0.58mm x 0.40mm 280 2.9
76# 19 x 140 0.315mm x 0.20mm 140 1.88
80# 20 x 300 0.35mm x 0.20mm - 3.6
95# 24 x 110 0.355mm x 0.25mm 120 2.45
100# 25 x 140 0.28mm x 0.20mm 100 1.95
120# 30 x 150 0.25mm x 0.18mm 80 1.68
160# 40 x 200 0.20mm x 0.14mm 60 1.40
180# 45 x 250 0.16mm x 0.112mm 56 1.09
200# 50 x 250 0.14mm x 0.11mm 53 1.04
240# 65 x 330 0.11mm x 0.08mm 36 0.71
280#(1) 70 x 350 0.11mm x 0.08mm 35 0.72
280#(2) 70 x 385 0.11mm x 0.07mm 32 0.75
300# 78 x 700 0.11mm x 0.08mm 30 1.39
315#(1) 80 x 400 0.10mm x 0.065mm 40 0.62
315#(2) 80 x 600 0.10mm x 0.06mm - -
315#(3) 80 x 800 0.15mm x 0.04mm - -
320# 81 x 780 0.10mm x 0.07mm 30 1.22
354# 90 x 550 0.12mm x 0.05 - -

304 316 Stainless Steel Metal Filter Disc 20-200 Micron Wire Mesh Round

The Feature

1.Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance, accurate
filtration rating, abrasion resistance, good wear resistance, high temperature resistance.
2.Chemical properties: acid, alkali and corrosion resistance.
3.Process properties: uniform controlled porosity, long service life, precision punched burr-free, compatible with most fluids,weldable, easy loading and unloading, cleanable and reusable

The Application

304 316 Stainless Steel Metal Filter Disc 20-200 Micron Wire Mesh Round

The Package and Delivery:

304 316 Stainless Steel Metal Filter Disc 20-200 Micron Wire Mesh Round
