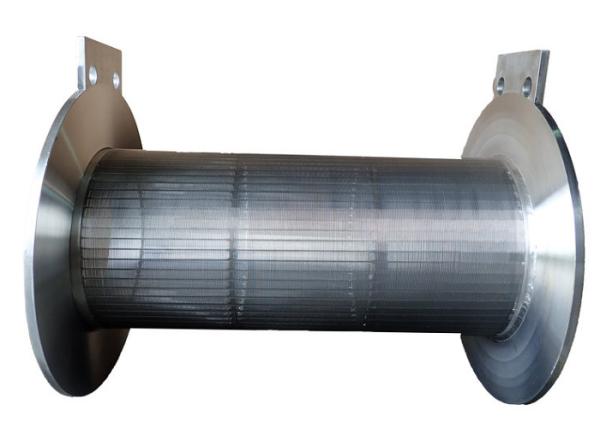

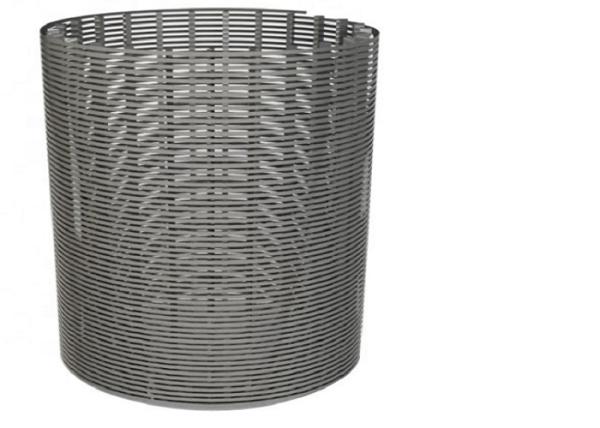

Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire
Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire
Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire
Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire
Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire
Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire
Specifications
Brand Name :
STD Filter
Model Number :
STD WWF012
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
Material :
Stainless Steel
Length :
up to 6 M,as required
diameter :
25-1200 mm, customized
edged :
Y/N,Depends what you needs.
Slot size :
0.1-6.0 mm,or customized 0.02 mm
Filter rating :
99%
Application :
filtration
Usage :
mining,energy,ore
Feature :
Quality-Crafted And Fluidity
Technique :
Welding
Type :
Filter Element
shape :
cylindrical
Description

Stainless Steel 316 Slot 0.5mm sieve bend in ultra, made of looped wedge wire

The ss wedge wire sections are made by stainless user profile wire connections. Welding the supporting cords as well as the area wire connections together, will become a much, rigorous, and level board display, which is a great and ideal filtration system display for several programs.

Wedge wire display screen often known as Johnson Monitor or User profile Display screen. Wedge wire display screen is made by welding

the wedge cable and help wire, filtering accuracy 15-800μm, mainly creating as being the items of filter plates,filter baskets, slot pipe and so on. The merchandise have got a features of substantial power, high solidity, dress in

resistance, deterioration amount of resistance, crevice uniform, seepage, and simple to clean and anti-cleansing

The V-designed cable can be created in numerous size and width to address various power software, on the other hand, the space of person slot machines could be varied during manufacturing if geologic circumstances require these different versions in the screen's development.

SIZE
(INCH)		 O.D
(MM)		 SLOT
(INCH)		 LENGTH
(M)		 COLLAPSE
STRENGTH
(PSI)		 TENSILE
WEIGHT
(TON)		 WRAP(thick*deep)
(MM)		 RODS
(MM)
4 117 0.040 3 395 6 2.2*3.0 3.8MM/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8MM/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8MM/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8MM/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8MM/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8MM/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8MM/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8MM/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8MM/50

The way of woking

Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire

The Benifits of Wedge Screen Filter Pipe

  • Continuous-slot design provides an increased open area
  • Minimal pressure drop
  • Strong and durable
  • Sight glasses, pressure gauge and blow down ports supplied
  • Multiple custom housing designs to meet your specific requirements
  • V-shaped surface wires allow for easy cleaning by back-flushing

Application

Water Treatment
Wastewater Treatment
OEM

Oil & Gas
Power Generation
Food & Beverage

Mining
Pharmaceutical
Pulp and Paper

Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire

The show of details:

Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire

Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire

The package and The Delivery:

Slot 0.5mm Sieve Bend Screen Looped Wedge Stainless Steel 316 Wire

Please meet Us On : http://www.wedgefilter.com
