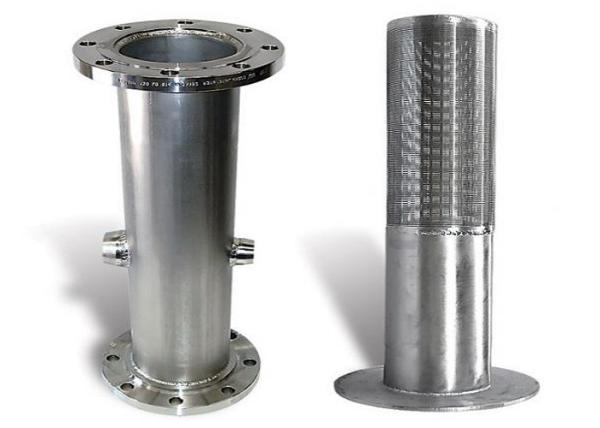

Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed
Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed
Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed
Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed
Specifications
Brand Name :
STD Filter
Model Number :
STD WWF 010
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
Material :
Stainless Steel 316, AISI 316. SUS 316
width :
up to 1 meter,or customized
Length :
up to 2 meters, or as required
Usage :
liquid and solid filtration,gold ore
Application :
filtration
Feature :
High rigidity and quality,precision
Filter rating :
99%
Technique :
Welding
Type :
Filter Element
Slot size :
0.1-6.0 mm,customized to 0.02 mm
Weave style :
Plain weave
Edged :
Y/N, depends what you needs.
Sharp :
square ,round or as your drawings
Description

Strong and durable AISI 304 Wedge Wire Resin Traps for Mixed Bed

The mixed bed adopts a fixed bed exchange process, it is composed of upper water inlet device, middle drainage device, lower porous plate, water retaining plate, filter cloth layer, valve system, and compressed air inlet device.

In the mixed ion exchanger, the anion and cation exchange resins are mixed and filled in the same exchange vessel according to a certain proportion, so that the anion and cation exchange reactions can be carried out at the same time, so the desalting rate of the effluent water is very high.

The mixed ion exchanger is generally installed after the anion and cation exchanger, or after the electrodialysis and reverse osmosis devices to form a treatment system for preparing pure water.

Popular Specifications of Wedge Wire Screens for Resin Traps
Material SS 304, SS 304L, SS 316, SS 316L, SS 321, Duplex, Hastelloy, etc.
O.D. 25–2000 mm
I.D. 19–1987 mm
Length up to 6 m
Slot size 20 micron to 3000 micron (tolerance: ± 5 micron)
Wedge Wire (mm) 0.5 × 1.5 0.75 × 1.5 1 × 2 1.5 × 2 2 × 3 2 × 4
Support Rod (mm) 1.5 × 2.5
2 × 3		 1.5 × 2.5
2 × 3		 1.5 × 2.5
2 × 3		 1.8 × 2.5
2 × 3		 3 × 5 3 × 5
Connection type Commonly is flange, some are threads
End type Closed plate
Customization Special slot sizes and configurations can be customized as your request.

Benefits of our resin traps include:

  • Continuous-slot design provides an increased work surface
  • Minimal pressure drop
  • Strong and durable
  • V-shaped surface wires allow for easy cleaning by back-flushing
  • Stainless Steel is unrest and corrosion.
Simple options that come with Welded wedge wire elements / items :

• They can be non-blocking
• Personal-undefinedbacked and firm
• Lengthy lifestyle
• Dependable and steady purification ranking
• All metallic construction (non-metallic also feasible like PP)
• An easy task to thoroughly clean smooth filtering area

Function

– Prevent expensive ion exchange resin loss
– Protect pumps and important downstream equipment
– V-shaped wire structure is not easy to block, easy to clean(better than -woven mesh filter element and sintered filter element)
– Large opening area and low pressure(large flow, reduce energy loss)
– Special V-shaped wire structure of wedge wire screen. Uniform gap, no resin leakage, no material running
– The branch pipe bears a large pressure without liner
– Various structures to meet the requirements of different containers
We can provide customized service of resin trap filter according to your requirements.

The profile:

Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed

Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed
Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed

The diagram demonstrates why welded wedge cable factors are rigid and robust and thereby keeps extremely dependable port launching on a regular basis.

The package:

Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed

The delivery

Strong Durable Aisi 304 Wedge Wire Filter Resin Traps For Mixed Bed

So we will be the best of your choice to the wedge wire filter manufacturer. For all your specifications and other information about welded wedge cable monitors please mail us today at sales2@filtercustom.cn.
