Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
Specifications
Brand Name :
STD Filter
Model Number :
STD WWF 009
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
square or round or material curved
Length :
2 meters or as required
Width :
1 meter or customized
Diameter :
1 meter or customized
Type :
separation
Usage :
water or air filtration
Technique :
Welding
Application :
Water well
Filter rating :
99%
Feature :
Corrosion Resistance
Slot size :
0.1-6.0 mm
Material :
Stainless Steel316,304,AISI 304,316. SUS 304 or 316
Description

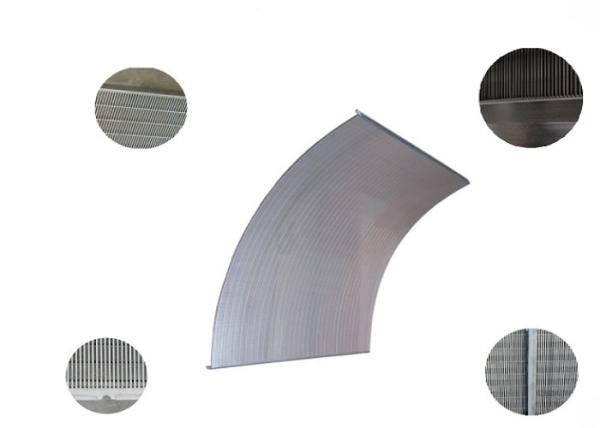

Stainless Steel 304/316 Customized Shapes And Slot Sieve Bend Screen For Pulp &Paper



The Introduction

The sieve bend screen is a special structure for filtration.It is passive way.So it is friendly to environment.It do not need power or pump to work.The sieve bend screen is customized shape and slot to meet your special needs.So do not change your device and lengthen it a more work life.Due to the special structure of the sieve bend screen,it includes the surface of the V-shape wire and the rectangle or round support rods,It is high strength.The slot of the surface is high precision.It can be customized to 0.02mm,thinner than hair.The V wire can forbid to be blocked.And a good surface can be cleaned easily.

Name

Sieve Bend Screen

Material

stainless steel(304,316)

Wedge wire

Width(mm): 1.5,1.8,2.3,3.0,3.3,3.7,1.0,4.5
Height:(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0

Support rod

Width(mm): 1.5,2.0,2.3,2.7,3.0,3.3,3.7,4.0,4.5
Height(mm): 1.5,2.2,2.7,3.0,3.6,4.0,4.5,4.7,5.5,5.6,6.3
Round rod: 2.5-6.0mm

Thickness

usually 1mm,1.2mm,1.5mm,2.0mm etc

Length

300mm,500mm customized

Width

30mm,35mm,50mm,60mm,customized

Openging rate

45%,60%,85% etc customized

SurfaceTreatm

Electric galvanized, Hot dipped galvanized, oxidation treatment etc

Usage

screening,decoration, sifting, filtration, drying, cooling, cleaning

Delivery Detail

7-15 days after receiving the 30% deposit or as required

Wires and Rods Information

Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :

The most common wire

Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
The most common support rod
Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter

The Advantage of The Wedge Wire Filter
1.Customized shape and slot: can meet the special needs
2.The smooth surface:easily to be cleaned.
3.Wedge shape: have a better capacity and not be blocked
4.The stainless steel:be resistance to crosion and abrasion.etc

The Details

Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter

The Usage accasions:

The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter


The Package:

Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter

The Delivery
Water Well Use Thickness 1.2mm Stainless Steel 316 DSM Screen , 304 SUS Filter
