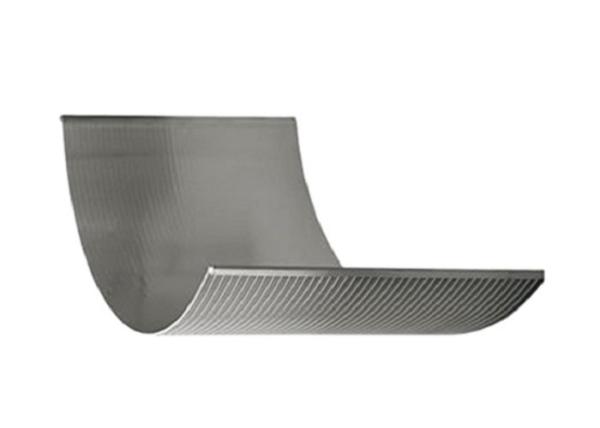

Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment
Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment
Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment
Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment
Specifications
Brand Name :
STD Filter
Model Number :
STD SBS-003
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
square or round or material curved
Length :
2 meters or as required
Width :
1 meter or customized
Diameter :
1 meter or customized
Filter rating :
99%
Type :
separation,Filtrating
Feature :
Corrosion Resistance
Usage :
Sieve
Technique :
Welding
Application :
Industrial filtration
Material :
Stainless Steel316,304,AISI 304,316. SUS 304 or 316
Slot size :
0.1-6.0 mm
Description

Stainless Steel 304/316 Customized Sieve Bend Screen Accessory For Sand and Gravels



The Introduction

Sieve Bend Screens are ideal for sizing and dewatering applications to remove solids from liquids, or in solid/solid separation for dry feed situations.

Sieve Bend Screens can be manufactured in a variety of widths, arc lengths, apertures or wedge wires to suit the flow rate and material being separated. Although most applications require Static Sieve Bends, “Cross Flow”, “With Flow” and “Vibrating” Sieve Bends can also be manufactured.

The feed slurry is directed vertically and tangentially over the full width of the upper screen surface. The slurry flows down the concave surface at right angles to the openings between wedge profiled wires. Due to the drag on the slurry passing over the wedge wire, a thin layer on the underside is deflected and passes out between the wires. The fact that the size of particle passing through the screen is always smaller than the opening, gives the screen good non-clogging properties.

Norminal diameter(in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar) Nominal Diameter (in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar)
2-3/8” 45 60.3 4 90
2-7/8” 58 73.0 4 90
4-1/2” 100 114.3 5 14 4-1/2” 100 114.3 8 60
5-1/2” 124 139.7 7 8 5-1/2” 124 139.7 10 50
6-5/8” 150 168.3 9 20 6-5/8” 150 168.3 12 50
8-5/8” 197 219.1 15 15 8-5/8” 197 219.1 20 60
9-5/8” 222 244.5 17 9 9-5/8” 222 244.5 25 60
10-3/4” 247 273.1 20 10 10-3/4” 247 273.1 30 45
12-3/4” 298 323.9 24 10 12-3/4” 298 323.9 37 40
13-3/8” 316 339.7 30 9
16 378 406.4 34 9
20 476 508.0 53 9
Applied for shallow well or general screen

Greater strength, larger filter area

Applied for medium depth wells or deep wells

Wires and Rods Information


Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :

The most common wire

Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment
The most common support rod
Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment

The Advantage of The Wedge Wire Filter
1.Customized shape and slot: can meet the special needs
2.Precision filtration
3.Long work time
4.The stainless steel:be resistance to crosion and abrasion.
5.High wear resistance

The Details

Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment

Stainless Steel 316 ID 45mm Sieve Bend Screen For Water TreatmentStainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment
Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment

The Usage accasions:

The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment

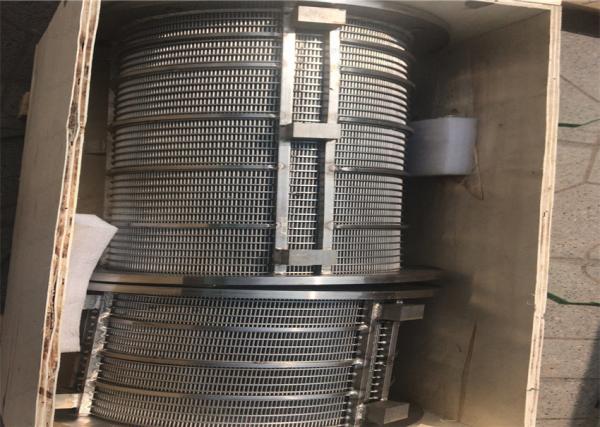

The Package:

Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment

The Delivery
Stainless Steel 316 ID 45mm Sieve Bend Screen For Water Treatment

Please Meet us on The http://www.wedgefilter.com
