Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake
Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake
Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake
Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake
Specifications
Brand Name :
STD Filter
Model Number :
STD SBS-006
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
square or round or material curved
Length :
2 meters or as required
Width :
1 meter or customized
Diameter :
1 meter or customized
Usage :
Sieve
Type :
separation,Filtrating
Feature :
Corrosion Resistance
Filter rating :
99%
Technique :
Welding
Application :
Industrial filtration
Slot size :
0.1-6.0 mm
Material :
Stainless Steel316,304,AISI 304,316. SUS 304 or 316
Description

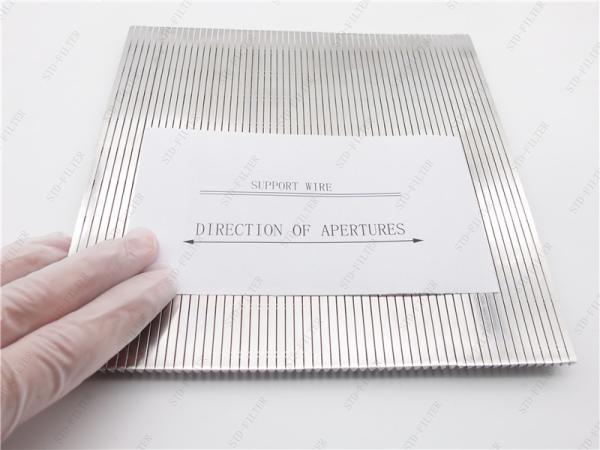

Stainless Steel 304/316 Customized Sieve Bend Screen Accessory For Water Intake



The Introduction

Sieve Bend Screen is also called Wedge Wire Screen filter.It one kind of Johnson screen.It can be the accessary of the device.

Sieve Bend Screen are used in static sieves for either dewatering or classification. As the slurry flows over the inclined screen surface, the perpendicular layout of the wires to the flow, allows for solids to be retained while liquid passes through the screen. Made from V-shape Wire screens, the Sieve Bend Screen can provide up to 50 percent more open area with a narrower wire profile.

With a number of manual-handling restrictions. Johanson Screens has developed an innovative split-sieve design. The Sieve Bend Screen is passive.It do not need power and can not be moved. This design offers a simple, economical benefit by reducing the physical size and the weight of the screen.
Norminal Diameter(in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar) Nominal Diameter (in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar)
2-3/8” 45 60.3 4 90
2-7/8” 58 73.0 4 90
4-1/2” 100 114.3 5 14 4-1/2” 100 114.3 8 60
5-1/2” 124 139.7 7 8 5-1/2” 124 139.7 10 50
6-5/8” 150 168.3 9 20 6-5/8” 150 168.3 12 50
8-5/8” 197 219.1 15 15 8-5/8” 197 219.1 20 60
9-5/8” 222 244.5 17 9 9-5/8” 222 244.5 25 60
10-3/4” 247 273.1 20 10 10-3/4” 247 273.1 30 45
12-3/4” 298 323.9 24 10 12-3/4” 298 323.9 37 40
13-3/8” 316 339.7 30 9
16 378 406.4 34 9
20 476 508.0 53 9
Applied for shallow well or general screen

Greater strength, larger filter area

Applied for medium depth wells or deep wells

Wires and Rods Information

Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :

The most common wire

Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake
The most common support rod
Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake

The Advantage of The Wedge Wire Filter
1.High strength and rigidity

2.A long service time

3.Customized shapes and slot

4.Low maintenance

5.Low cost.

The Usage accasions:

The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

Some of the applications where profile wire screens can be found include, but not limited to the following:

Corn Wet Milling
Malting Processes
Winery Processes
Sugar Processes
Brewing Processes


The Details

Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake

Industrial Filtration 99% ID 316mm Intertank Screens For Water IntakeIndustrial Filtration 99% ID 316mm Intertank Screens For Water Intake
Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake

The others structure of Johnson Screen:

Industrial Filtration 99% ID 316mm Intertank Screens For Water IntakeIndustrial Filtration 99% ID 316mm Intertank Screens For Water IntakeIndustrial Filtration 99% ID 316mm Intertank Screens For Water Intake


The Package:

Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake

The Delivery
Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake
